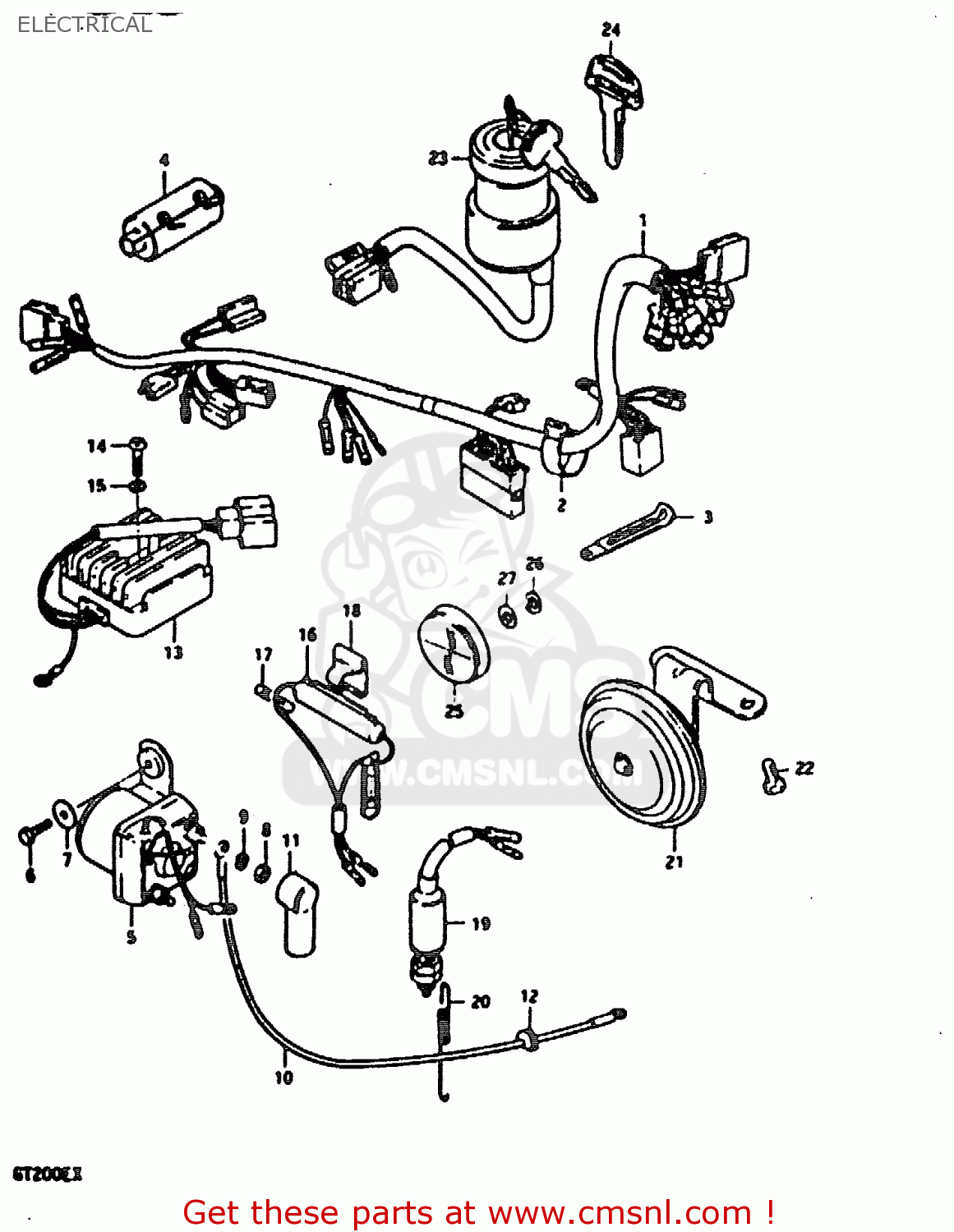

ELECTRICAL

ref

part #

description

quantity

1

3661010302
ref: 1

WIRING HARNESS

€ 0.00

2-1

0940711301
ref: 2-1

CLAMP L:110

€ 6.00

2-2

0940718301
ref: 2-2

CLAMP

€ 6.00

2-3

0940725301
ref: 2-3

CLAMP(L:250)

€ 4.50

3

0940406401
ref: 3

CLAMP L:35

€ 2.50

4

3661830610
ref: 4

BOOT,WIRING HARNESS

€ 9.50

5

3180010200
ref: 5

RELAY,STARTER SWITCH

€ 79.00

6

0110706168
ref: 6

BOLT, UPPER

€ 3.00

7

0916006007
ref: 7

WASHER

€ 2.00

8

0831022068
ref: 8

NUT 6MM

€ 2.50

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

3385010300
ref: 10

WIRE,STARTER MOTOR LEAD

€ 24.00

11

3186135100
ref: 11

CAP,STARTER RELAY

€ 4.50

12

3388510200
ref: 12

GROMET

€ 0.00

13

3280010200
ref: 13

RECTIFIER ASSY,REGULATOR

€ 177.50

14

0211206208
ref: 14

SCREW

€ 2.00

15

0832121068
ref: 15

LOCK WASHER

€ 2.50

16

3674015010
ref: 16

BOX ASSEMBLY,FUSE

€ 11.00

17

0948115001
ref: 17

FUSE(15A)

€ 3.00

18

3679146700
ref: 18

HOLDER,FUSE CASE

€ 9.00

19

3774020010
ref: 19

SWITCH,BRAKE LAMP

€ 22.00

20

0944306016
ref: 20

SPRING

€ 2.50

21

3850010380
ref: 21

HORN

€ 0.00

22

0110706108
ref: 22

BOLT

€ 2.00

23

3711028655
ref: 23

SWITCH ASSY, IGNITION

€ 86.50

24

3714519710
ref: 24
OPT

KEY,BLANK

€ 13.00

25

3595045010
ref: 25

REFLEX REFLECTOR,FR

€ 17.00

26

0832121058
ref: 26

LOCK WASHER

€ 2.00

27

0832221058
ref: 27

WASHER

€ 2.50

all assemblies
