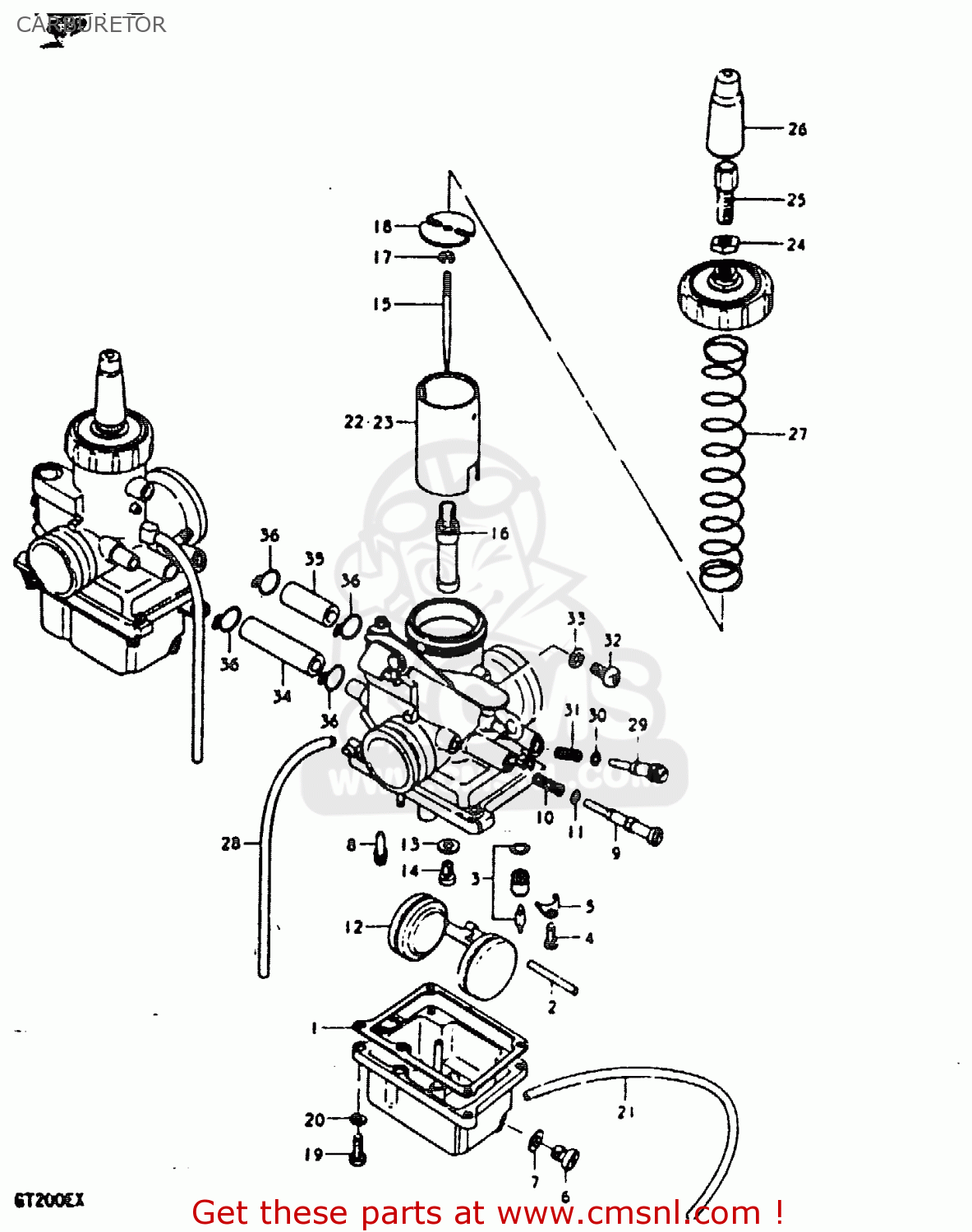

CARBURETOR

ref

part #

description

quantity

0

1320110301
ref: 0

CARBURETOR ASSY, RH

€ 0.00

0

1320210301
ref: 0

CARBURETOR ASSY, LH

€ 0.00

1

1325136210
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 7.00

2

1325401010
ref: 2

PIN,FLOAT

€ 3.00

3

1337046710
ref: 3

VALVE ASSY,NEEDLE

€ 44.00

4

0211203088
ref: 4

SCREW

€ 1.50

5

1337346710
ref: 5

PLATE,NEEDLE VALVE FITING

€ 4.50

6

1324705010
ref: 6

PLUG

€ 6.00

7

1324905010
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 1.50

8

0949220002
ref: 8

JET

€ 10.00

9

1326736500
ref: 9

SCREW, STOP

€ 0.00

10

1326835010
ref: 10

SPRING

€ 3.00

11

1329533010
ref: 11

O RING

€ 4.50

12

1325236110
ref: 12

FLOAT

€ 24.50

13

1338203110
ref: 13

WASHER

€ 2.50

14

0949182002
ref: 14

JET

€ 8.50

15

1338310301
ref: 15

NEEDLE, JET (4CG1-3)

€ 0.00

16

0949400255
ref: 16

JET, NEEDLE (O-8)

€ 0.00

17

1339410010
ref: 17

CLIP

€ 4.50

18

1358110300
ref: 18

PLATE, SPRING

€ 0.00

19

0211204168
ref: 19

SCREW

€ 1.00

20

0832121048
ref: 20

LOCK WASHER

€ 2.00

21

1368430650
ref: 21

HOSE

€ 7.50

22

1355110300
ref: 22
CA:2.0

VALVE, THROTTLE LH

€ 17.50

23

1356110300
ref: 23
CA:2.0

VALVE, THROTTLE RH

€ 0.00

24

1366116600
ref: 24

NUT

€ 5.00

25

1357748110
ref: 25

ADJUSTER,CABLE

€ 8.00

26

136133010
ref: 26

BOOT

€ 0.00

27

1357308210
ref: 27

SPRING,THROTTLE VALVE

€ 6.00

28

1368339110
ref: 28

HOSE

€ 8.00

29

1326915010
ref: 29
1 1/4

SCREW,PILOT AIR

€ 10.50

30

1329533010
ref: 30

O RING

€ 4.50

31

1326835010
ref: 31

SPRING

€ 3.00

32

0211205068
ref: 32

SCREW

€ 4.00

33

1352346110
ref: 33

GASKET,DRAIN PLUG (NAS)

€ 3.00

34

1380310200
ref: 34

HOSE, STARTER (L:40)

€ 0.00

35

1368310200
ref: 35

HOSE

€ 8.00

36

1361711300
ref: 36

CLIP,CARBURETOR HOSE

€ 0.00
