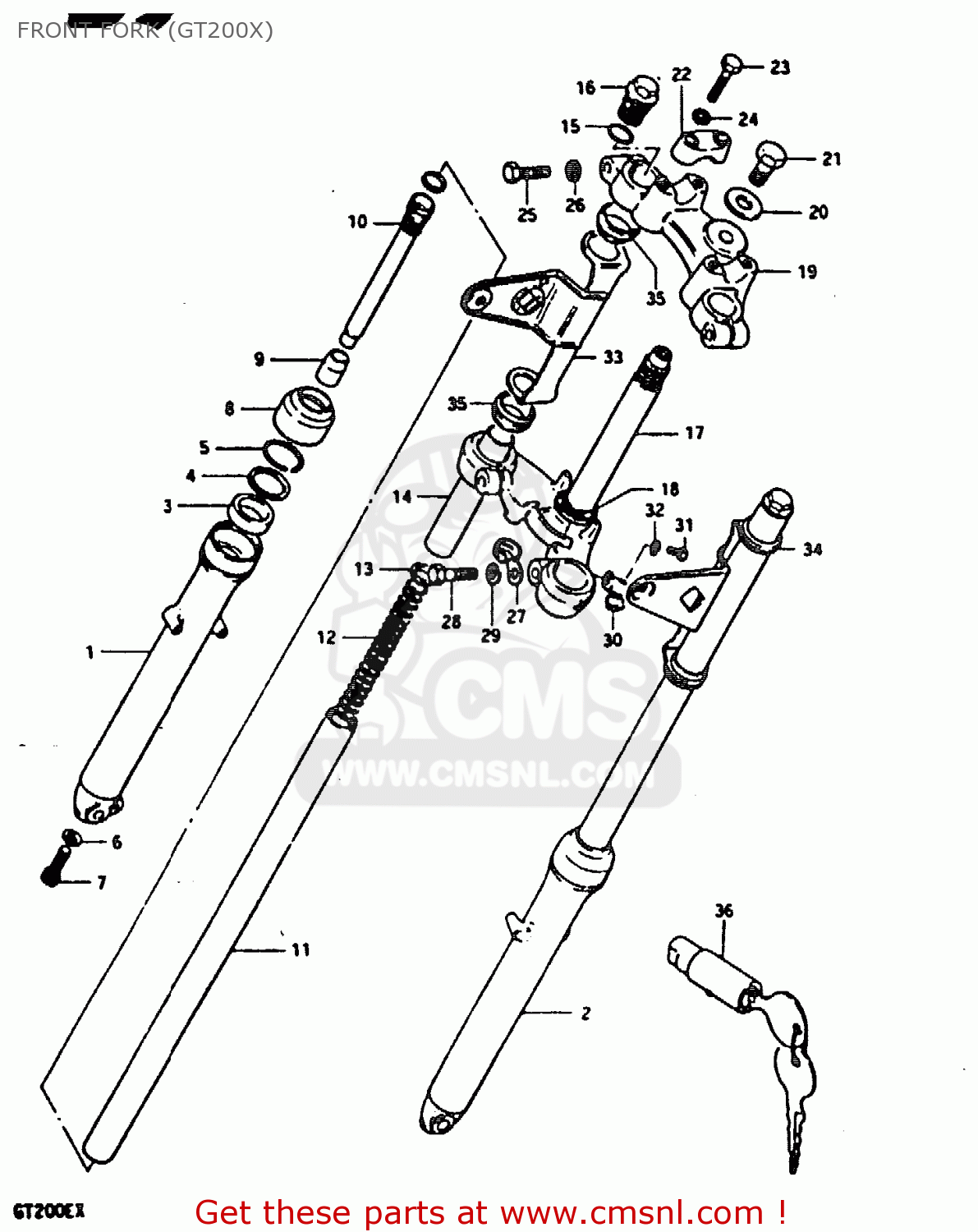

FRONT FORK (GT200X)

ref

part #

description

quantity

0

5110010310291
ref: 0

FRONT FORK ASSY

€ 0.00

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1

5113010310
ref: 1

OUTER TUBE, RH

€ 0.00

2

5114010310
ref: 2

OUTER TUBE, LH

€ 0.00

3

5115329400
ref: 3

OIL SEAL,FRONT FORK

€ 11.00

4

5115836010
ref: 4

WASHER,FRONT FORK

€ 4.00

5

5115636010
ref: 5

RING,SNAP

€ 5.50

6

5114841310
ref: 6

GASKET (NAS)

€ 2.50

7

5114716510
ref: 7

BOLT,FORK CYLINDER(10X25)

€ 3.50

8

5117329310
ref: 8

SEAL,DUST

€ 10.00

9

5119536220
ref: 9

PIECE,OIL LOCK

€ 11.50

10

5114610300
ref: 10

CYLINDER

€ 0.00

11

5111010300
ref: 11

INNER TUBE

€ 209.00

12

5117110300
ref: 12

SPRING

€ 0.00

13

5117218630
ref: 13

GUIDE,SPRING COVER

€ 5.50

14

5117636211
ref: 14

SPACER

€ 5.50

15

5118125010
ref: 15

O-RING,FORK INNER TUBE

€ 2.50

16

5135125011
ref: 16

BOLT,FR FORK

€ 16.50

17-1

5141010300
ref: 17-1

STEERING STEM

€ 162.50

17-2

NOTUSED
ref: 17-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

18

5162133001
ref: 18

RACE,STEERING OUTER LWR

€ 10.00

19

5131129320291
ref: 19

HEAD,STEERING STEM

€ 65.50

20

5135622012
ref: 20

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

21

5135120010
ref: 21

BOLT,FORK INNER TUBE

€ 25.00

22

5621129320291
ref: 22

HOLDER,HANDLE(BLACK)

€ 12.00

23

0120408357
ref: 23

BOLT

€ 3.50

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

5145115113
ref: 25

BOLT,FORK INNER TUBE F

€ 2.50

26

0832121108
ref: 26

LOCK WASHER

€ 2.00

27

5145536010
ref: 27

CLIP

€ 6.50

28

5145128012
ref: 28

BOLT,FR FORK LWR(12X33)

€ 11.50

29

0832121128
ref: 29

WASHER,LOCK 12

€ 2.50

30

51145305110
ref: 30

CLIP

€ 0.00

31

0211206108
ref: 31

SCREW

€ 1.50

32

0832121068
ref: 32

LOCK WASHER

€ 2.50

33

5153011300291
ref: 33

BRACKET, HEADLAMP RH

€ 87.50

34

5154011300291
ref: 34

BRACKET, HEADLAMP LH

€ 2.00

35

5155310300
ref: 35

CUSHION

€ 0.00

36

NOTUSED
ref: 36

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
