TACHOMETER DRIVE GEAR

GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

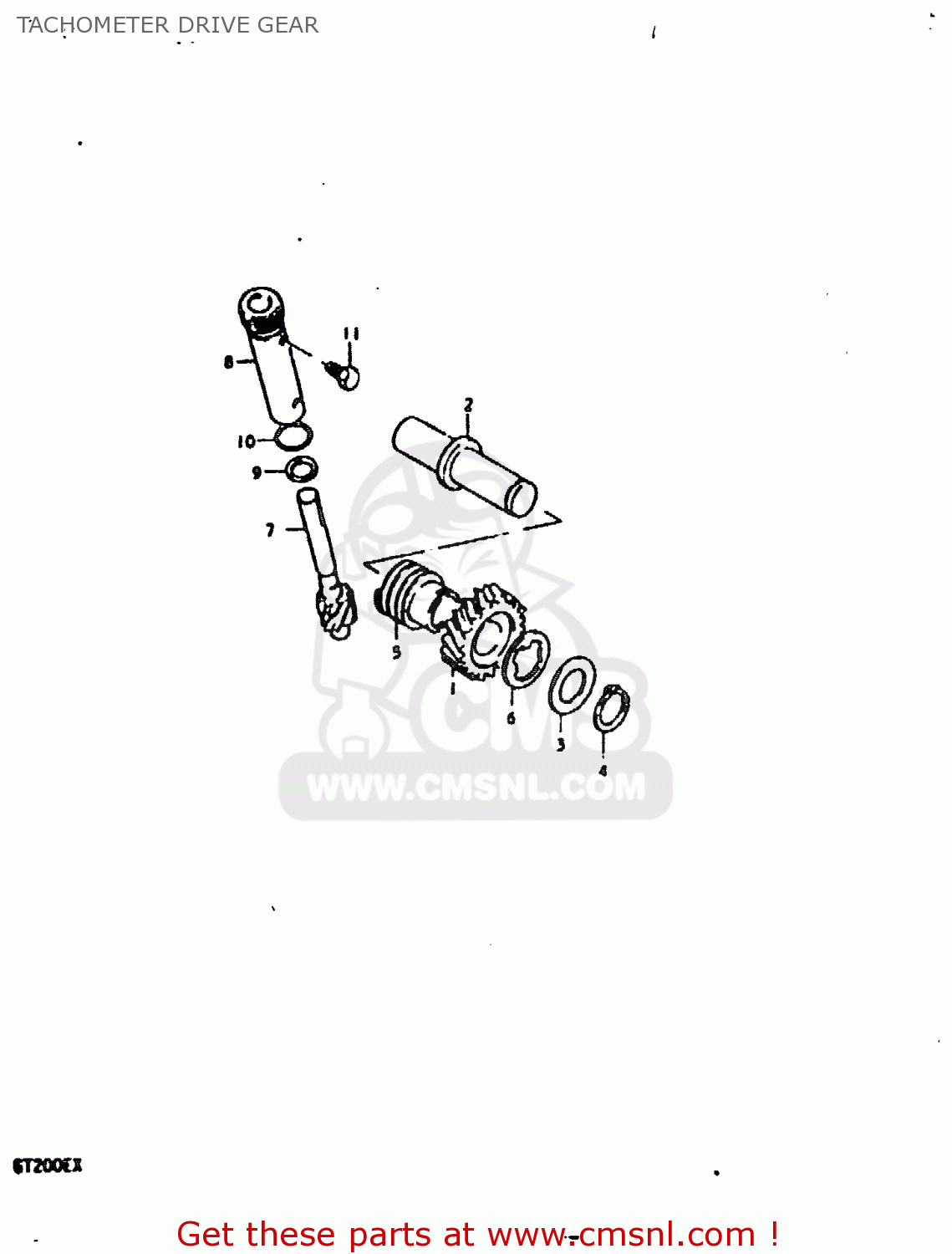

Tachometer drive gear diagram GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

2642146100
ref: 1

GEAR, TACHOMETER DRIVE NO.2

€ 28.00

2642222701
ref: 2

SHAFT,TACHOMETER DRIVEN GEAR

€ 14.00

0821110201
ref: 3

WASHER,THRUST

€ 2.00

0833131109
ref: 4

CIRCLIP

€ 2.00

2642346100
ref: 5

GEAR,TACH DRIVE NO.2(NT:3)

€ 19.50

2642446100
ref: 6

RETAINER,TACH DRIVEN GEAR NO1

€ 3.00

2643110300
ref: 7

GEAR, TACHOMETER DRIVER

€ 0.00

2644148000
ref: 8

SLEEVE,TACHOMETER DRIVE GEAR

€ 15.00

0916008003
ref: 9

WASHER(8X13.7X1)

€ 2.00

0828010001
ref: 10

O RING

€ 0.00

0813506002
ref: 11

BOLT

€ 0.00

all assemblies
