STARTING MOTOR

GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

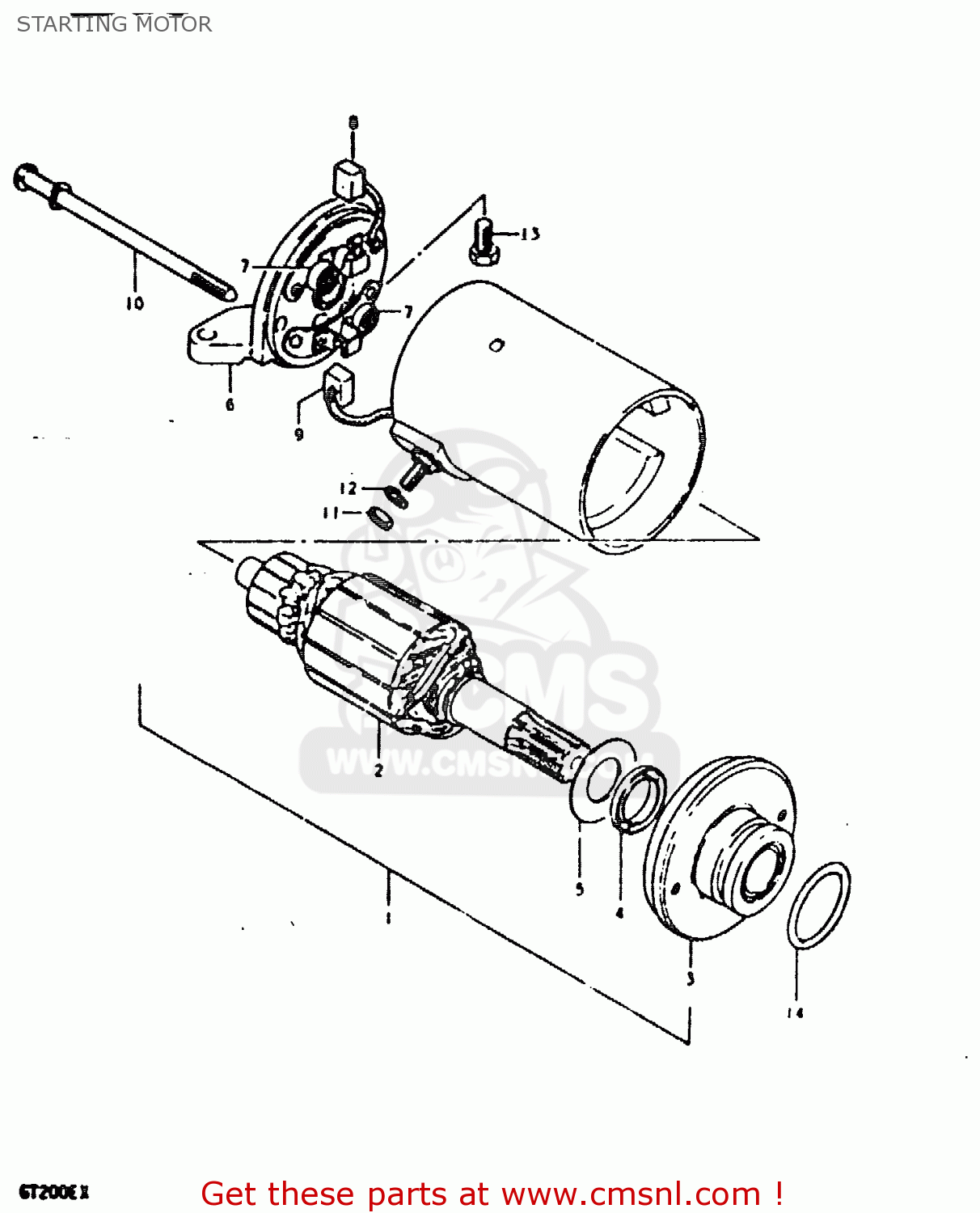

Starting motor diagram GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

3110010200
ref: 1

MOTOR ASSY, STARTING

€ 590.00

3131110200
ref: 2

ARMATURE

€ 167.00

3115110200
ref: 3

HOUSING, DRIVE

€ 0.00

3115345010
ref: 4

SEAL,OIL

€ 19.50

3136110200
ref: 5

RING,SNAP

€ 2.50

3117010200
ref: 6

HOUSING, COMMUTATOR END

€ 0.00

3113565010
ref: 7

SPRING

€ 3.00

3113110200
ref: 8

BRUSH(-)

€ 8.50

3113010200
ref: 9

BRUSH TERMINAL SET

€ 13.00

3128110200
ref: 10

BOLT,STARTING MOTOR HOUSING

€ 4.00

0831032068
ref: 11

NUT

€ 2.50

0832121068
ref: 12

LOCK WASHER

€ 2.50

0110706128
ref: 13

BOLT

€ 2.00

0928024001
ref: 14

O RING(D:2,ID:24.5)

€ 2.00
