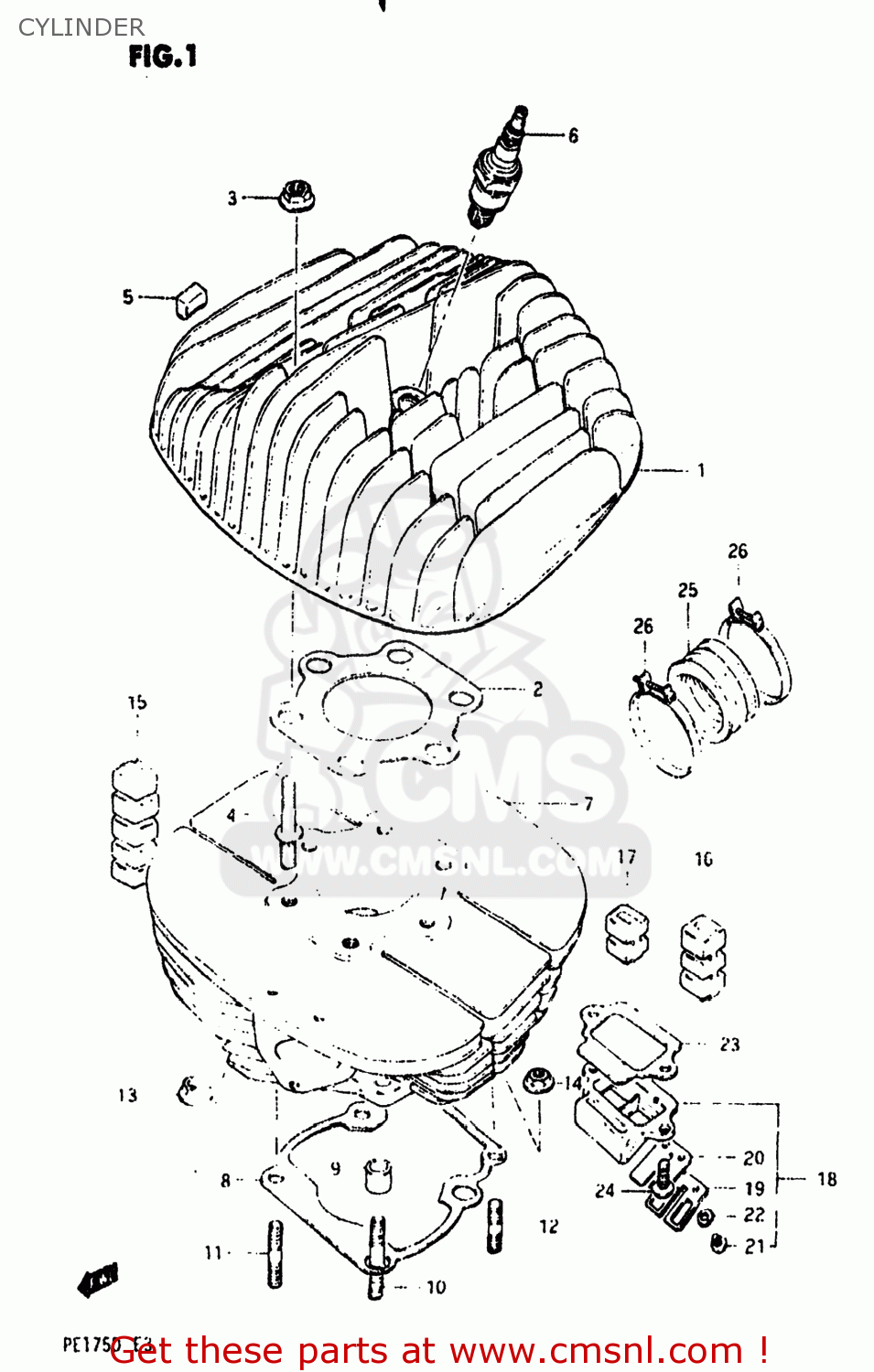

CYLINDER

ref

part #

description

quantity

1

1111140502
ref: 1

HEAD,CYLINDER

€ 0.00

2

1114140510
ref: 2
11141-40303

GASKET,CYLINDER HEAD (NAS)

€ 16.50

3

0831616088
ref: 3
08316-10087

NUT

€ 2.50

4

0910808018
ref: 4

BOLT,STUD

€ 4.00

5

1125225000
ref: 5

PAD,CYLINDER

€ 5.00

6-1

0948200214
ref: 6-1
09482-00210

SPARK PLUG (CHAMPION)

€ 16.50

6-2

0948200210
ref: 6-2

PLUG,SPARK(B10EGV)

€ 16.50

7

1121040503
ref: 7

CYLINDER

€ 480.50

8

1124140500
ref: 8
11241-40501

GASKET,CYLINDER (MCA)

€ 8.00

9

0920613001
ref: 9
04211-13189

PIN

€ 2.50

10

0142108408
ref: 10
09108-08144

STUD 8X40

€ 2.50

11

0142108258
ref: 11
01421-0825A

STUD 8X25

€ 2.50

12

0142106258
ref: 12
01421-06257

STUD 6X25

€ 2.50

13

0831616088
ref: 13
08316-10087

NUT

€ 2.50

14

0831616068
ref: 14
08319-31067

NUT

€ 2.50

15

1125141510
ref: 15
11251-36500

PAD,CYLINDER

€ 6.50

16

1125141520
ref: 16
11251-36500

PAD,CYLINDER

€ 6.50

17

1125139110
ref: 17
11251-36500

PAD,CYLINDER

€ 6.50

18

1315040200
ref: 18

VALVE ASSY,REED

€ 110.50

19

1315240200
ref: 19
13150-40200

STOPPER,REED VALVE

€ 110.50

20

1315340200
ref: 20

VALVE,REED

€ 10.00

21

0211203088
ref: 21
02112-03087

SCREW

€ 1.50

22

0832121038
ref: 22
09162-03001

LOCK WASHER

€ 1.50

23

1315640200
ref: 23
13156-40200-H17

GASKET,REED VALVE (MCA)

€ 7.50

24

0211206168
ref: 24
02112-06167

SCREW

€ 2.50

25

1311140500
ref: 25

PIPE,INTAKE

€ 19.00

26

0940252306
ref: 26

CLAMP

€ 6.00
