PE175 1983 (D) USA (E03)

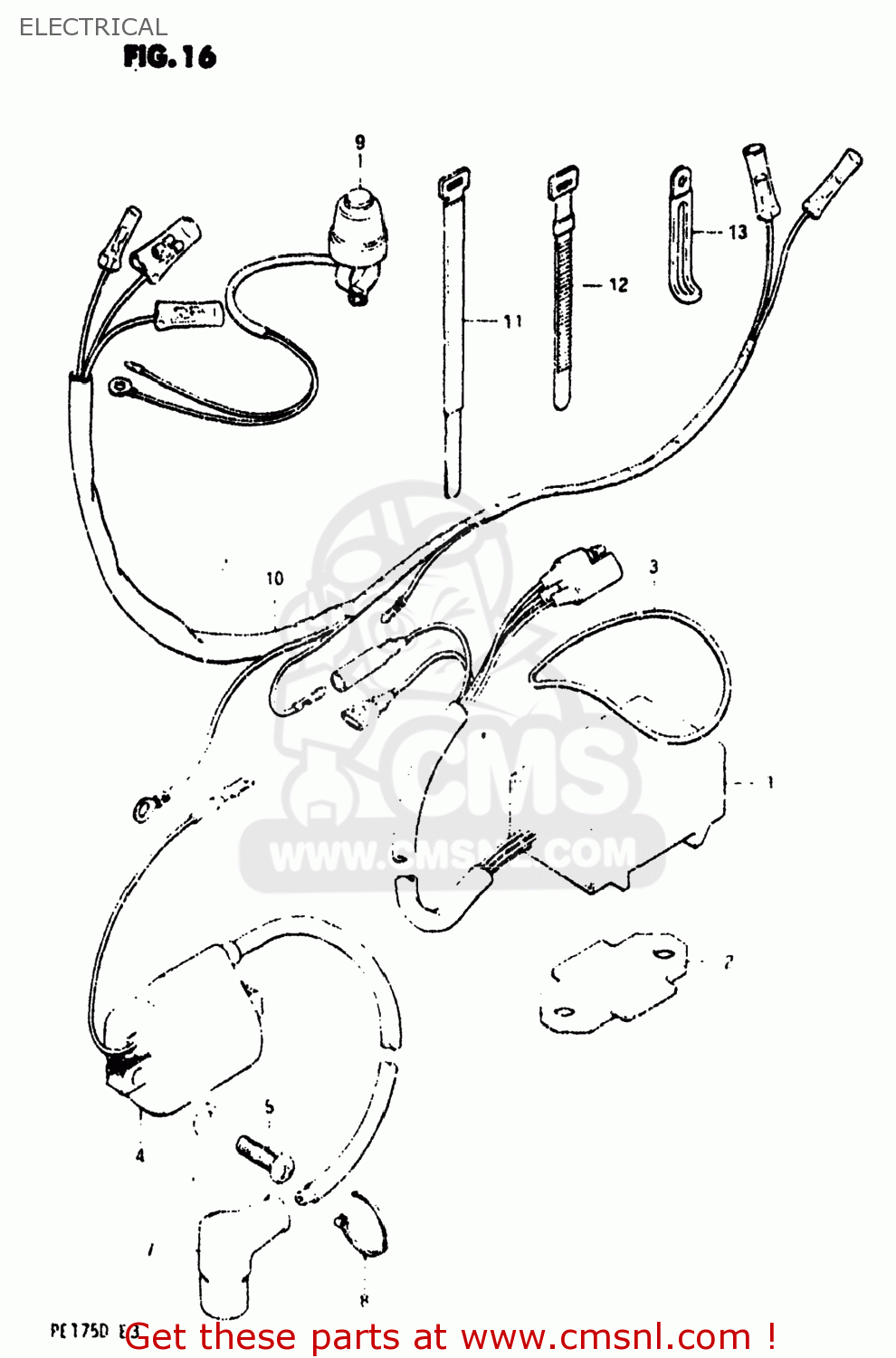

Electrical diagram PE175 1983 (D) USA (E03)
ELECTRICAL PE175 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290014410
ref: 1
CDI UNIT
€ 335.50
2
3294120400
ref: 2
PROTECTOR,CDI UNIT
€ 0.00
3
0928062001
ref: 3
09280-61002
O-RING
€ 5.00
4
3341014130
ref: 4
33410-14132
COIL ASSEMBLY,IGNITION
€ 127.50
5
0211206208
ref: 5
02112-06207
SCREW
€ 2.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
3351041111
ref: 7
33510-20A02
CAP,SPARK PLUG
€ 23.00
8
0940709402
ref: 8
CLAMP
€ 3.00
9
3782041400
ref: 9
37820-14X50
SWITCH ASSEMBLY
€ 24.50
10
3661014440
ref: 10
HARNESS,WIRING
€ 0.00
11-1
0940718301
ref: 11-1
CLAMP
€ 6.00
11-2
0940711301
ref: 11-2
09407-18301
CLAMP L:110
€ 6.00
12
0940712402
ref: 12
CLAMP(L:120)
€ 3.00
13
0940406415
ref: 13
09404-06433
CLAMP
€ 3.00
