TRANSMISSION
PE175 1983 (D) USA (E03)

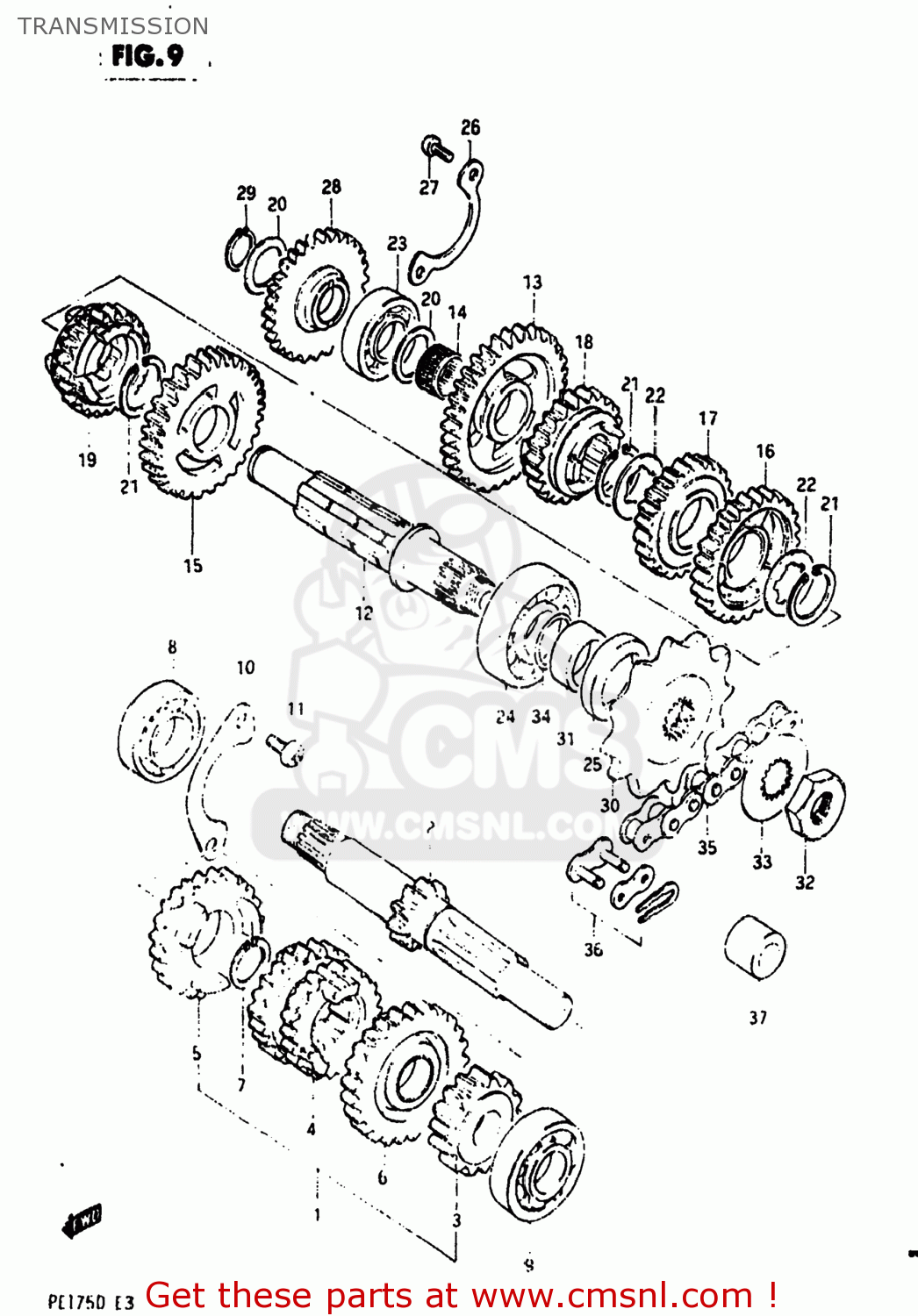

Transmission diagram PE175 1983 (D) USA (E03)
TRANSMISSION PE175 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412014400
ref: 1
SHAFT ASSEMBLY,COUNTER
€ 0.00
2
2412114400
ref: 2
SHAFT,COUNTER
€ 62.00
3
2422141501
ref: 3
GEAR,SECOND DRIVE
€ 72.50
4
2423141501
ref: 4
24231-14110
GEAR,THIRD DRIVE
€ 146.00
5
2425141300
ref: 5
24251-14101
GEAR,FIFTH DRIVE
€ 103.50
6
2426041502
ref: 6
GEAR,SIXTH DRIVE
€ 49.50
7
0938020007
ref: 7
CIRCLIP
€ 3.00
8
0811362040
ref: 8
09262-20069
Bearing
€ 28.00
9
0811360020
ref: 9
BEARING
€ 14.00
10
2474148000
ref: 10
RETAINER,CNTR SHAFT BEARING
€ 5.50
11
0211206128
ref: 11
02112-06127
SCREW 6X12
€ 2.00
12
2413114101
ref: 12
SHAFT,DRIVE
€ 99.00
13
2431114400
ref: 13
GEAR,FIRST DRIVEN
€ 49.00
14
0926315013
ref: 14
ROLLER BEARING (15X19X9
€ 16.00
15
2432114400
ref: 15
GEAR,SECOND DRIVEN
€ 33.00
16
2433114400
ref: 16
24331-14110
GEAR,THIRD DRIVEN
€ 54.00
17
2434114400
ref: 17
GEAR,FOURTH DRIVEN
€ 54.00
18-1
2435114101
ref: 18-1
24351-14110
GEAR,FIFTH DRIVEN
€ 41.00
18-2
2435114110
ref: 18-2
GEAR,FIFTH DRIVEN
€ 41.00
19
2436114400
ref: 19
GEAR,SIXTH DRIVEN
€ 57.00
20
0821115241
ref: 20
09181-15166
WASHER,THRUST
€ 4.00
21
0938022006
ref: 21
CIRCLIP
€ 3.00
22
0916722011
ref: 22
WASHER,LOCK
€ 3.00
23
0811362020
ref: 23
08113-62027
BEARING, RH
€ 14.50
24
0926220043
ref: 24
BEARING(20X47X14)
€ 27.00
25
0928325035
ref: 25
SEAL,OIL(25X40X7)
€ 6.50
26
2475140200
ref: 26
PLATE,DRIVESHAFT BEARING
€ 3.00
27
0211206108
ref: 27
02112-06107
SCREW
€ 1.50
28
2626041502
ref: 28
GEAR,KICK STARTER IDLE
€ 51.00
29
0833131159
ref: 29
08331-3115A
CIRCLIP,15MM
€ 2.00
30-1
2751141500
ref: 30-1
27511-14111
SPROCKET,ENGINE
€ 19.00
30-2
2751140200
ref: 30-2
27511-14101
SPROCKET,ENGINE
€ 23.50
30-3
2751141510
ref: 30-3
27511-14121
SPROCKET,ENGINE
€ 27.50
31
0918020039
ref: 31
SPACER(20X25X12.5)
€ 9.50
32
0914016013
ref: 32
NUT
€ 14.00
33
0916720012
ref: 33
WASHER,LOCK
€ 2.50
34
0928020001
ref: 34
O RING(D:1,ID:19.5)
€ 2.00
35
2760041132
ref: 35
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
36
2762041531
ref: 36
JOINT ASSEMBLY,CHAIN
€ 3.00
37
0918012068
ref: 37
SPACER(12X20X15.3)
€ 3.00
