HEADLAMP
PE175 1983 (D) USA (E03)

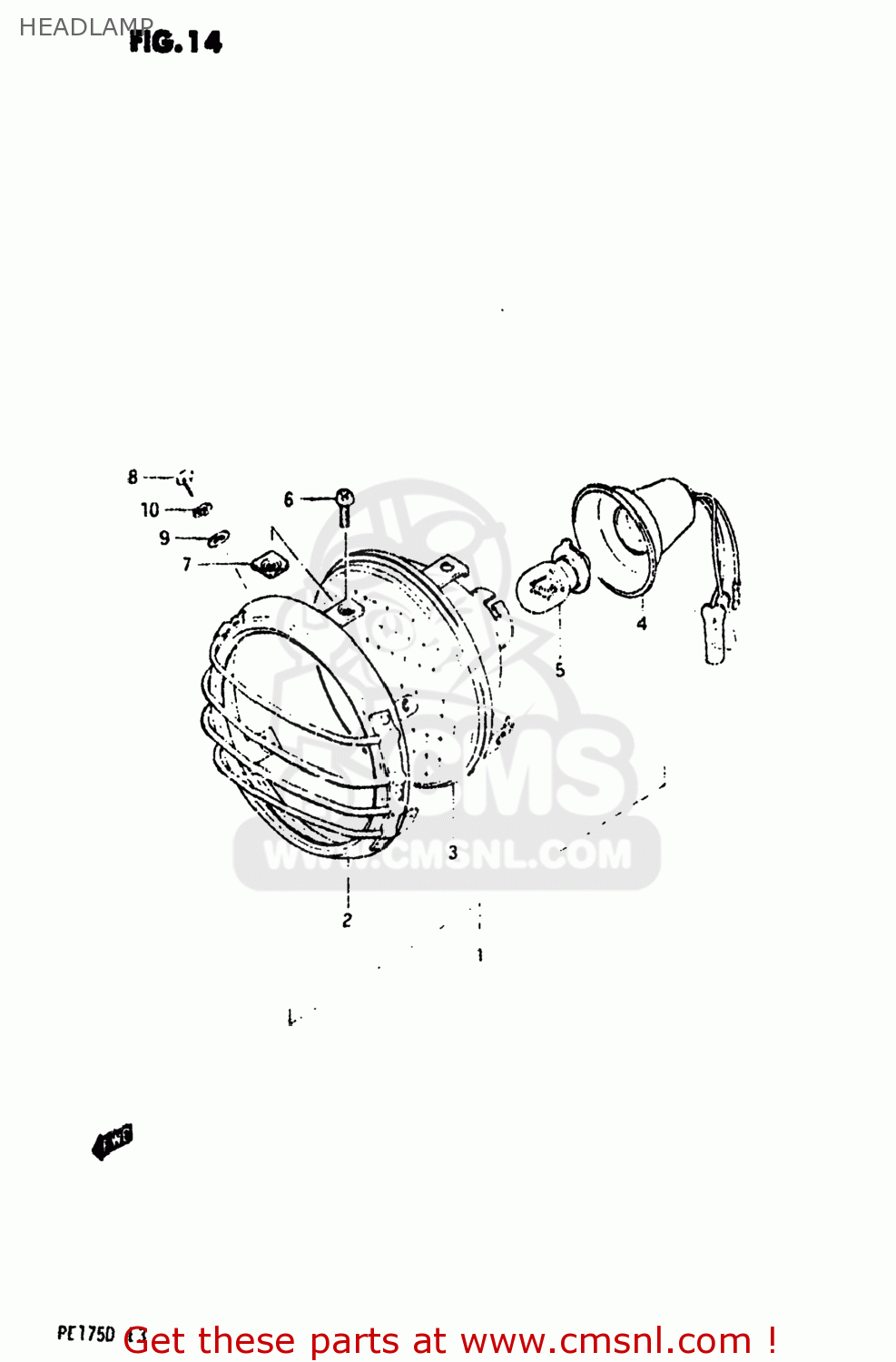

Headlamp diagram PE175 1983 (D) USA (E03)
HEADLAMP PE175 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510014400
ref: 1
LAMP ASSEMBLY,HEAD
€ 0.00
2
3511114400
ref: 2
RIM,HEADLAMP
€ 0.00
3
3512141500
ref: 3
LAMP UNIT
€ 88.00
4
3517141501
ref: 4
SOCKET,HEADLAMP
€ 15.50
5
0947106022
ref: 5
BULB(6V15/15W/STANLEY,A3598HA)
€ 6.50
6
0211205088
ref: 6
02112-05087
SCREW
€ 2.00
7
3515548510
ref: 7
NUT
€ 2.00
8
0211204128
ref: 8
02112-0412A
SCREW
€ 1.50
9
0832221048
ref: 9
08322-01047
WASHER
€ 2.00
10
0832121048
ref: 10
08321-0104A
LOCK WASHER
€ 2.00
