KICK STARTER
PE175 1983 (D) USA (E03)

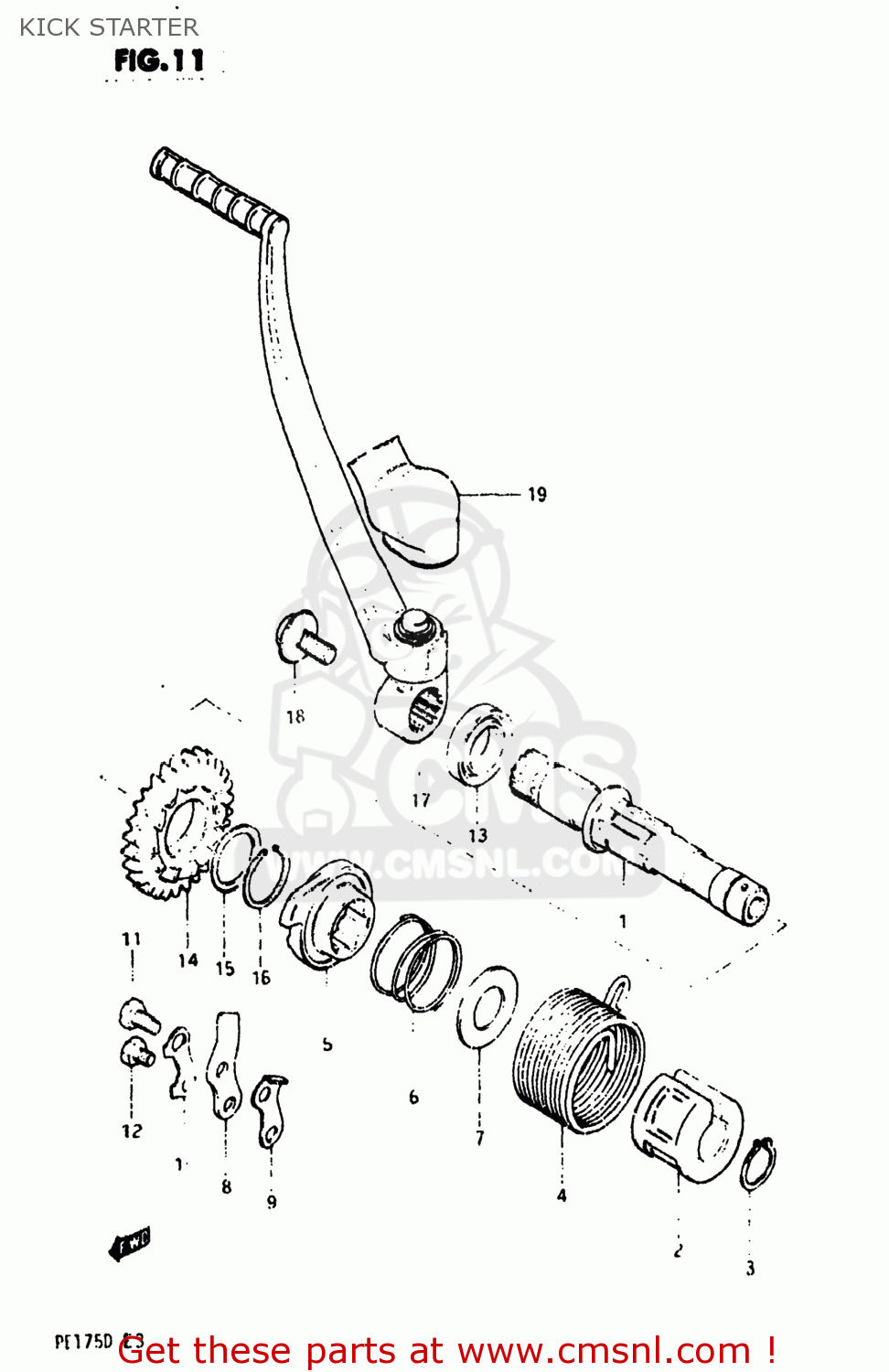

Kick starter diagram PE175 1983 (D) USA (E03)
KICK STARTER PE175 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621140501
ref: 1
26211-40502
SHAFT,KICK STARTER
€ 79.00
2
2622141100
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 7.00
3
0938017001
ref: 3
CIRCLIP
€ 2.00
4
0944845008
ref: 4
SPRING
€ 16.00
5
2623130002
ref: 5
26231-22A10
STARTER,KICK
€ 47.50
6
0944032002
ref: 6
SPRING
€ 2.00
7
0821117341
ref: 7
WASHER
€ 2.00
8
2623240200
ref: 8
GUIDE,KICK STARTER
€ 3.00
9
2623340200
ref: 9
26233-40201
STOPPER,KICK STARTER
€ 2.50
10
0916906003
ref: 10
WASHER
€ 1.50
11
0110706168
ref: 11
01500-06167
BOLT, UPPER
€ 3.00
12
0110706108
ref: 12
01500-06107
BOLT
€ 2.00
13
0928320031
ref: 13
SEAL,OIL(20X27X5)
€ 5.00
14
2624040201
ref: 14
GEAR,KICK STARTER DRIIVE
€ 57.00
15
0821122281
ref: 15
09181-22139
SHIM
€ 4.00
16
0938022006
ref: 16
CIRCLIP
€ 3.00
17
2630014400
ref: 17
26300-28E20
LEVER ASSEMBLY,KICK STARTER
€ 298.00
18
0910308069
ref: 18
BOLT(8X14)
€ 7.00
19
2634141101
ref: 19
COVER,KICK STARTER LEVER JOINT
€ 9.50
