RH HANDLE GRIP
PE175 1983 (D) USA (E03)

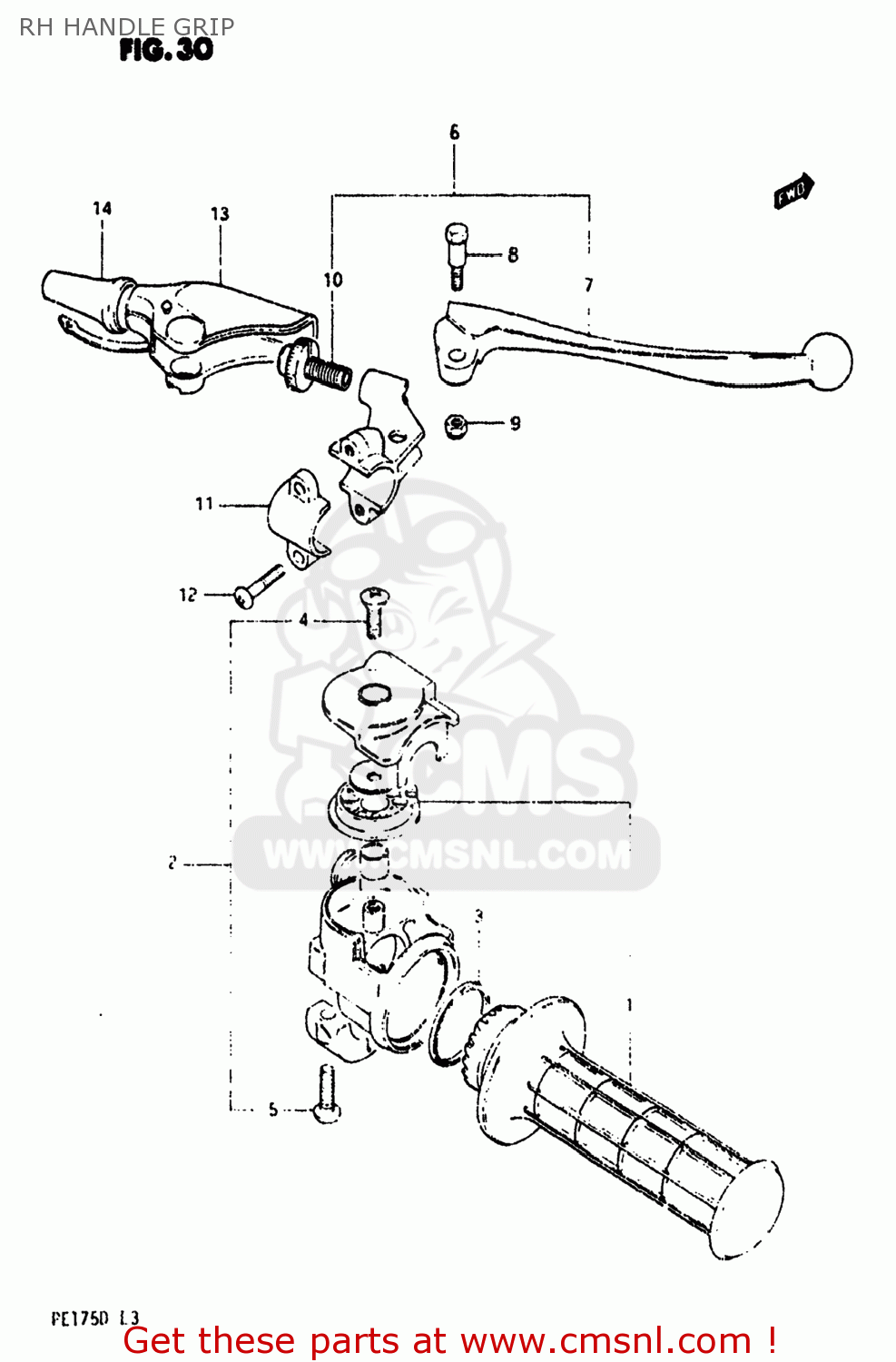

Rh handle grip diagram PE175 1983 (D) USA (E03)
RH HANDLE GRIP PE175 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711040810
ref: 1
GRIP SET,THROTTLE
€ 28.50
2
5710040330
ref: 2
CASE ASSY,THROTTLE
€ 48.50
3
5718440300
ref: 3
V-RING,THROTTLE GRIP
€ 6.50
4
0213205168
ref: 4
02122-05167
SCREW
€ 2.00
5
0211205208
ref: 5
02112-05207
SCREW 5X20
€ 3.00
6
5730040600
ref: 6
LEVER ASSEMBLY,BRAKE
€ 50.00
7
5742029400
ref: 7
LEVER,BRAKE
€ 30.50
8
5743111011
ref: 8
57431-11013
BOLT,LEVER
€ 6.00
9
0831921068
ref: 9
08319-2106A
NUT 6MM
€ 2.00
10
5744140610
ref: 10
ADJUSTER,CABLE
€ 5.00
11
5751214100
ref: 11
BRACKET,LEVER
€ 12.00
12
0211206168
ref: 12
02112-06167
SCREW
€ 2.50
13
5734140600
ref: 13
COVER,BRAKE LEVER
€ 0.00
14
5827331000
ref: 14
BOOT,CLUTCH CABLE
€ 2.50
