REAR WHEEL (MODEL D)

PE175 1983 (D) USA (E03)

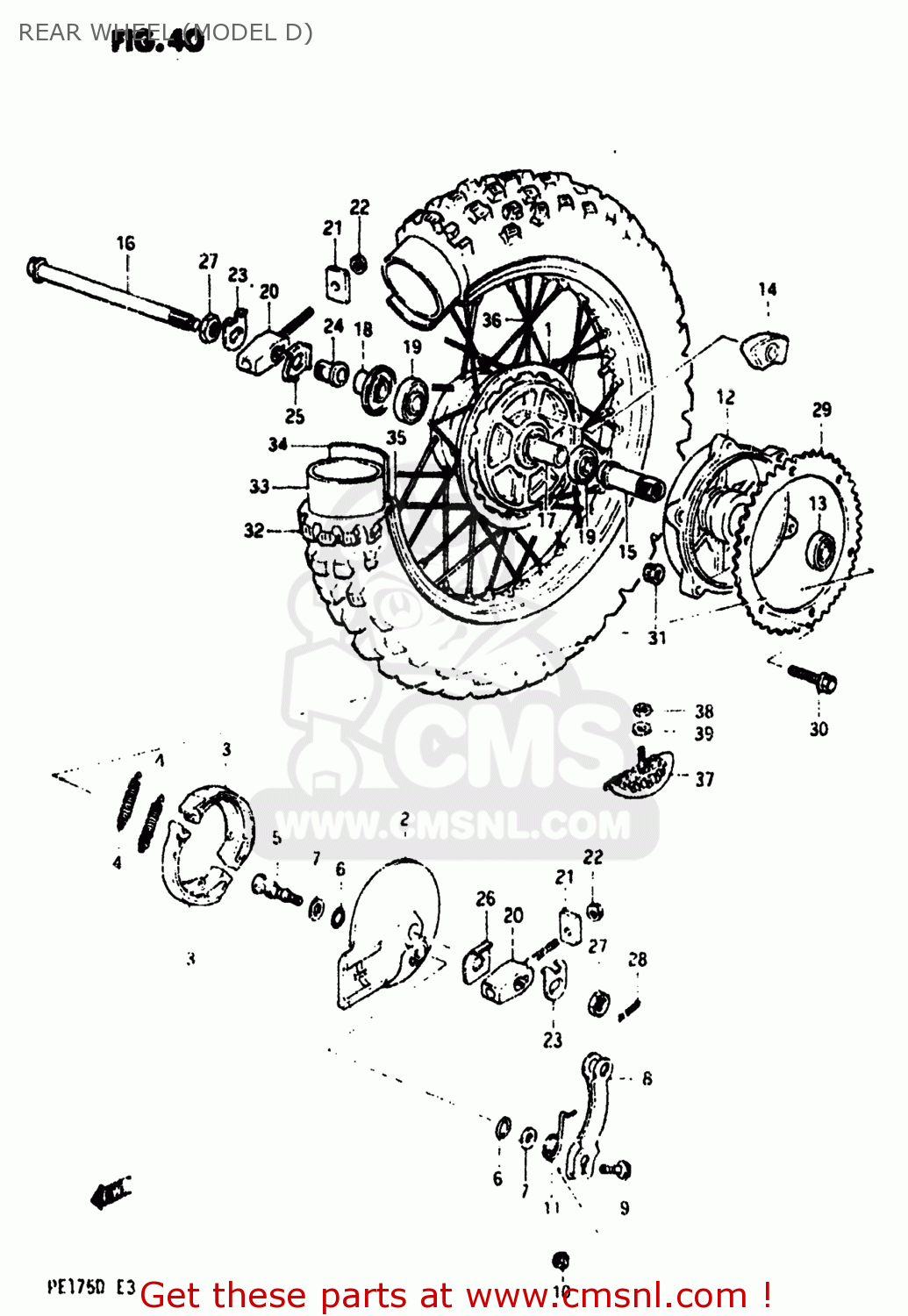

Rear wheel (model d) diagram PE175 1983 (D) USA (E03)

REAR WHEEL (MODEL D) PE175 1983 (D) USA (E03)
REAR WHEEL (MODEL D) PE175 1983 (D) USA (E03)
REAR WHEEL (MODEL D) PE175 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6411014400
ref: 1
HUB,REAR WHEEL
€ 346.50
2
6421014400
ref: 2
PANEL,REAR HUB
€ 123.00
3
5441040500
ref: 3
54400-40840
SHOE,BRAKE
5441040500
€ 58.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
0944307001
€ 2.50
5
6444140501
ref: 5
CAM,REAR BRAKE
€ 11.50
6
0928014003
ref: 6
09280-14011
O-RING (D:2.4 ID:13.8)
0928014003
€ 3.50
7
0916014001
ref: 7
09160-14055
WASHER (14.5X22X1.6)
0916014001
€ 2.50
8
6445140601
ref: 8
LEVER,REAR BRAKE CAM
6445140601
€ 17.50
9
0151706308
ref: 9
01550-06307
BOLT
€ 2.00
10
0831616068
ref: 10
08319-31067
NUT
0831616068
€ 2.50
11
0944831018
ref: 11
SPRING
0944831018
€ 4.50
12
6430940500
ref: 12
DRUM ASSEMBLY,REAR BRAKE
6430940500
€ 204.50
13
0926222015
ref: 13
09262-22027
BALL BEARING 22X50X14
€ 44.00
14
6465040600
ref: 14
ABSORBER,RR HUB SHOCK
6465040600
€ 16.00
15
6476114400
ref: 15
SHAFT,REAR BRAKE DRUM
€ 49.00
16
6471114400
ref: 16
AXLE,REAR
6471114400
€ 55.00
17
6473040600
ref: 17
SPACER,REAR HUB BEARING
6473040600
€ 12.00
18
6474014400
ref: 18
SPACER,REAR AXLE,RIGHT
6474014400
€ 19.00
19
0812363027
ref: 19
BEARING
0812363027
€ 19.00
20
6141014121
ref: 20
ADJUSTER,CHAIN
6141014121
€ 24.00
21
6142114210
ref: 21
PLATE,CHAIN ADJUSTER GUIDE,R
6142114210
€ 139.50
22
0831931088
ref: 22
08319-3108A
NUT
€ 2.50
23
6471214301
ref: 23
WASHER,CHAIN ADJUSTER GUIDE
6471214301
€ 7.50
24
6478114201
ref: 24
SPACER,CHAIN ADJUSTER
6478114201
€ 27.00
25
6478214200
ref: 25
PLATE,CHAIN ADJUSTER,RIGHT
€ 0.00
26
6479214400
ref: 26
PLATE CH ADJUSTER LH
€ 6.50
27
0914022003
ref: 27
NUT
0914022003
€ 10.00
28
0411130208
ref: 28
04111-3020A
PIN 30X20
0411130208
€ 1.50
29-1
6451140510
ref: 29-1
SPROCKET,REAR (NT:48)(AL)
6451140510
€ 116.50
29-2
6451140500
ref: 29-2
SPROCKET,REAR (NT:46)(AL)
6451140500
€ 102.00
29-3
6451140520
ref: 29-3
SPROCKET,REAR (NT:50)(AL)
€ 186.50
30
0910308048
ref: 30
BOLT(8X30)
0910308048
€ 3.50
31
0831931088
ref: 31
08319-3108A
NUT
€ 2.50
32-1
6510014110
ref: 32-1
TIRE
€ 50.00
32-2
6510014220
ref: 32-2
TIRE
€ 0.00
33
6520041310
ref: 33
65200-42AA0
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
34
6526116510
ref: 34
65261-33030
PROTECTOR,WHEEL,INNER
€ 5.50
35
6531114400
ref: 35
65311-14410
RIM,REAR WHEEL
€ 0.00
36
6532014400
ref: 36
SPOKE SET,REAR
6532014400
€ 48.00
37
6527046910
ref: 37
65270-43D00
STOPPER,BEAD
€ 30.50
38
0831012088
ref: 38
08310-00087
NUT
0831012088
€ 2.00
39
0832211088
ref: 39
08322-01087
WASHER
0832211088
€ 2.00
