REAR FENDER
PE175 1983 (D) USA (E03)

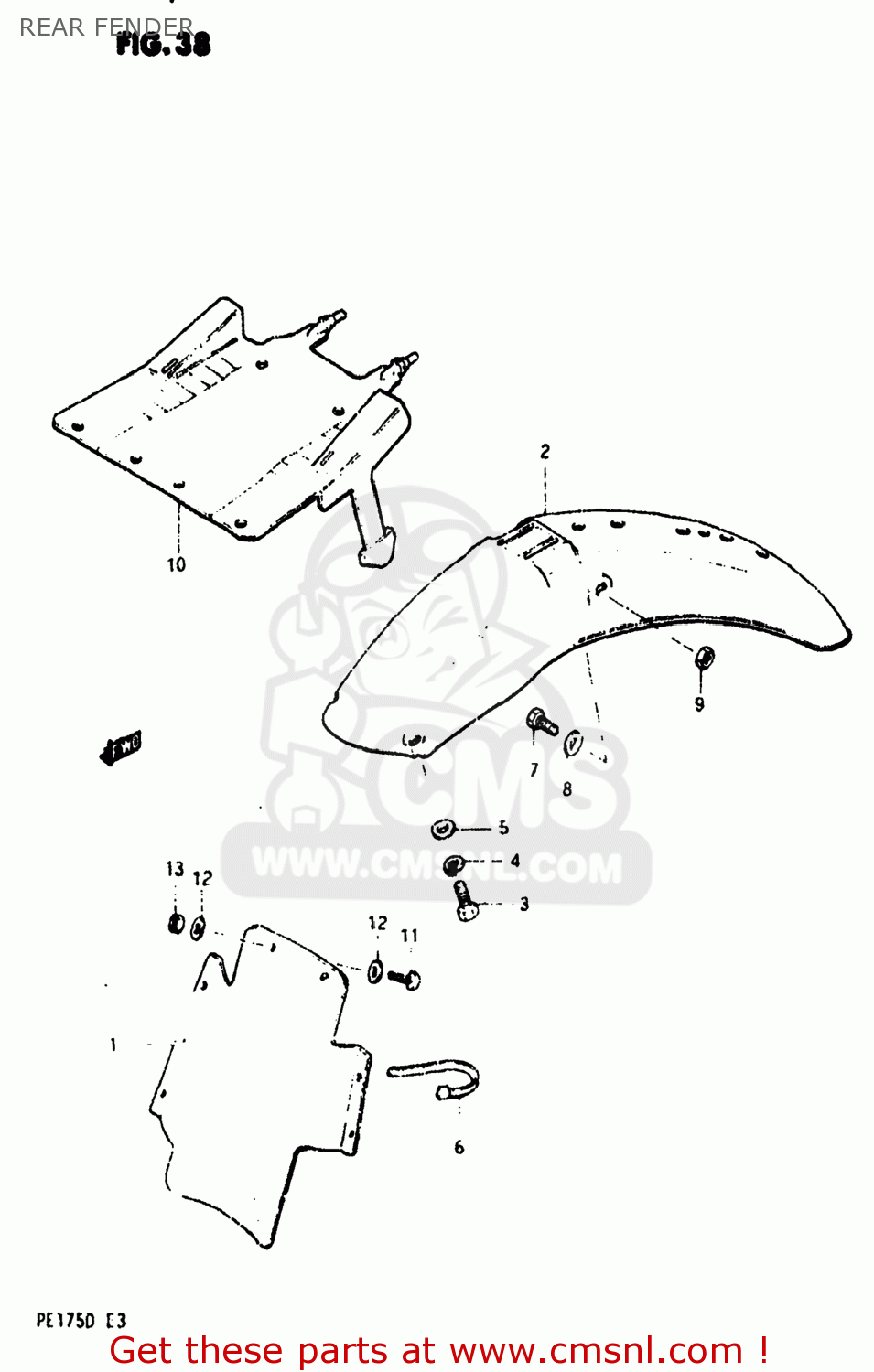

Rear fender diagram PE175 1983 (D) USA (E03)
REAR FENDER PE175 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311214400
ref: 1
FENDER,RR FR
€ 24.50
2
6311314400163
ref: 2
FENDER,REAR
€ 0.00
3
0110706168
ref: 3
01500-06167
BOLT, UPPER
€ 3.00
4
0832131068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
0916906016
ref: 5
WASHER
€ 1.50
6
0940720401
ref: 6
09407-25402
CLAMP
€ 4.50
7
0214206167
ref: 7
SCREW
€ 2.00
8
0916006027
ref: 8
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
9
0831931068
ref: 9
08319-31067
NUT
€ 2.50
10
6333114101
ref: 10
GUIDE,RR FENDER MUD
€ 26.50
11
0211205128
ref: 11
02112-05127
SCREW
€ 2.50
12
0832221058
ref: 12
08322-01057
WASHER
€ 2.50
13
0831022058
ref: 13
08310-00057
NUT
€ 2.50
