REAR BRAKE
PE175 1983 (D) USA (E03)

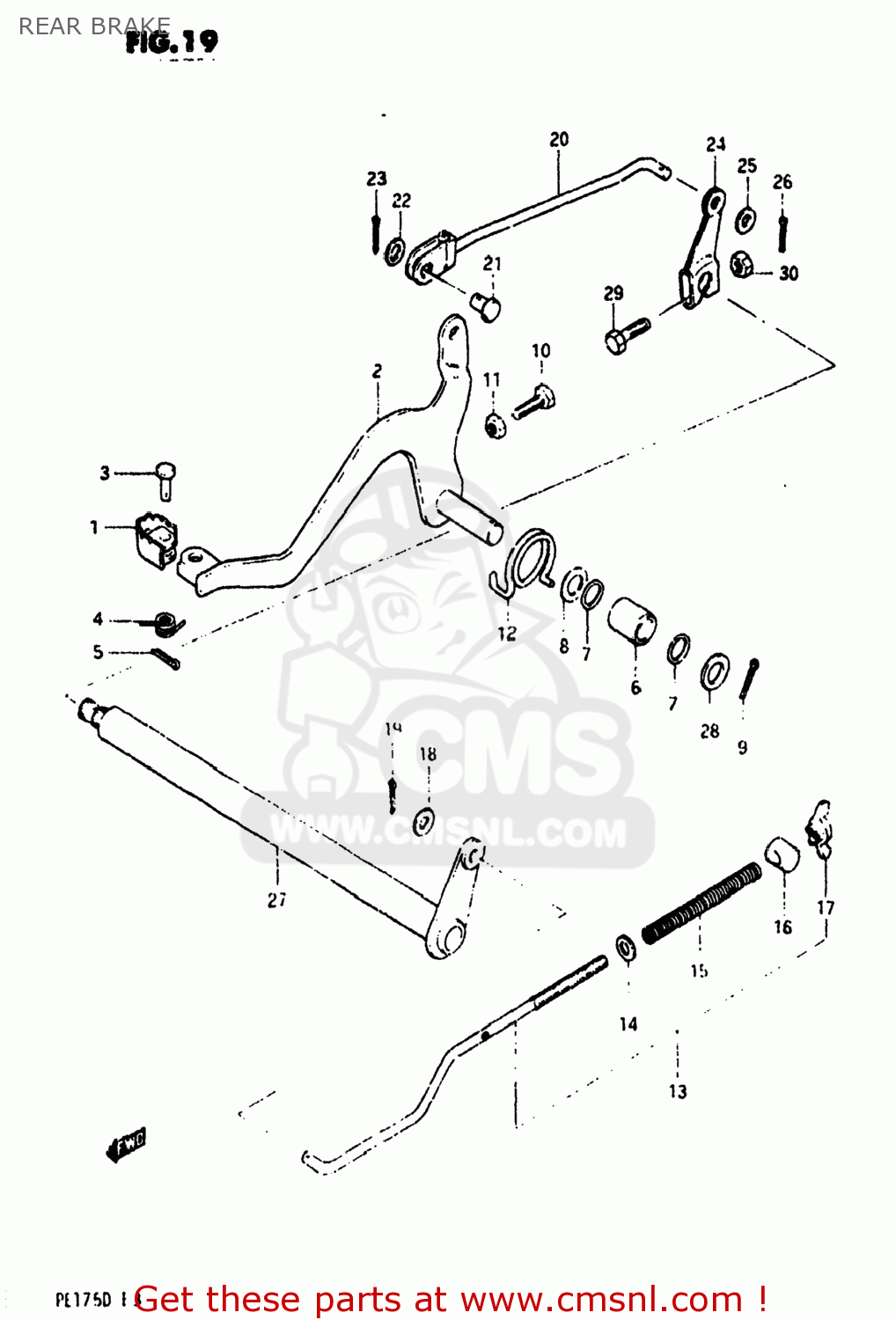

Rear brake diagram PE175 1983 (D) USA (E03)
REAR BRAKE PE175 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311040610
ref: 1
PEDAL,BRAKE
€ 12.00
2
4312014400
ref: 2
43120-14411
ARM,BRAKE PEDAL
€ 35.00
3
0920006038
ref: 3
PIN
€ 2.00
4
0944411002
ref: 4
SPRING
€ 2.00
5
0411120158
ref: 5
04111-2015A
PIN
€ 1.50
6
0931912022
ref: 6
BUSHING
€ 19.50
7
0928012006
ref: 7
O RING(D:2.2,ID:11.8)
€ 2.50
8
0821112221
ref: 8
WASHER
€ 2.50
9
0411130208
ref: 9
04111-3020A
PIN 30X20
€ 1.50
10
0910006009
ref: 10
BOLT(6X23)
€ 1.50
11
0831011068
ref: 11
08310-00067
NUT
€ 2.50
12
0944825007
ref: 12
09448-25007-XC0
SPRING
€ 6.00
13
4330014400
ref: 13
ROD ASSEMBLY,REAR BRAKE,REAR
€ 12.00
14
0832211088
ref: 14
08322-01087
WASHER
€ 2.00
15
0944009004
ref: 15
SPRING
€ 2.00
16-1
0920913003
ref: 16-1
09209-13018
PIN
€ 3.50
16-2
0920913005
ref: 16-2
09209-13018
PIN
€ 3.50
17
0914406005
ref: 17
NUT
€ 2.50
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
0411120208
ref: 19
04111-2020A
PIN 20X20
€ 1.50
20
4334014400
ref: 20
ROD ASSEMBLY,REAR BRAKE FRONT
€ 4.50
21
0920006013
ref: 21
PIN(L:13.5)
€ 2.00
22
0832221068
ref: 22
08322-01067
WASHER
€ 2.00
23
0411120208
ref: 23
04111-2020A
PIN 20X20
€ 1.50
24
4336120300
ref: 24
ARM,REAR BRAKE ROD,OUTER
€ 9.50
25
0832221068
ref: 25
08322-01067
WASHER
€ 2.00
26
0411120208
ref: 26
04111-2020A
PIN 20X20
€ 1.50
27
4335014400
ref: 27
ARM,REAR BRAKE ROD
€ 26.50
28
0916012017
ref: 28
WASHER(12.1X30X2.3)
€ 2.50
29
0910006050
ref: 29
09100-06150
BOLT
€ 1.50
30
0831616068
ref: 30
08319-31067
NUT
€ 2.50
