CRANKCASE COVER

PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

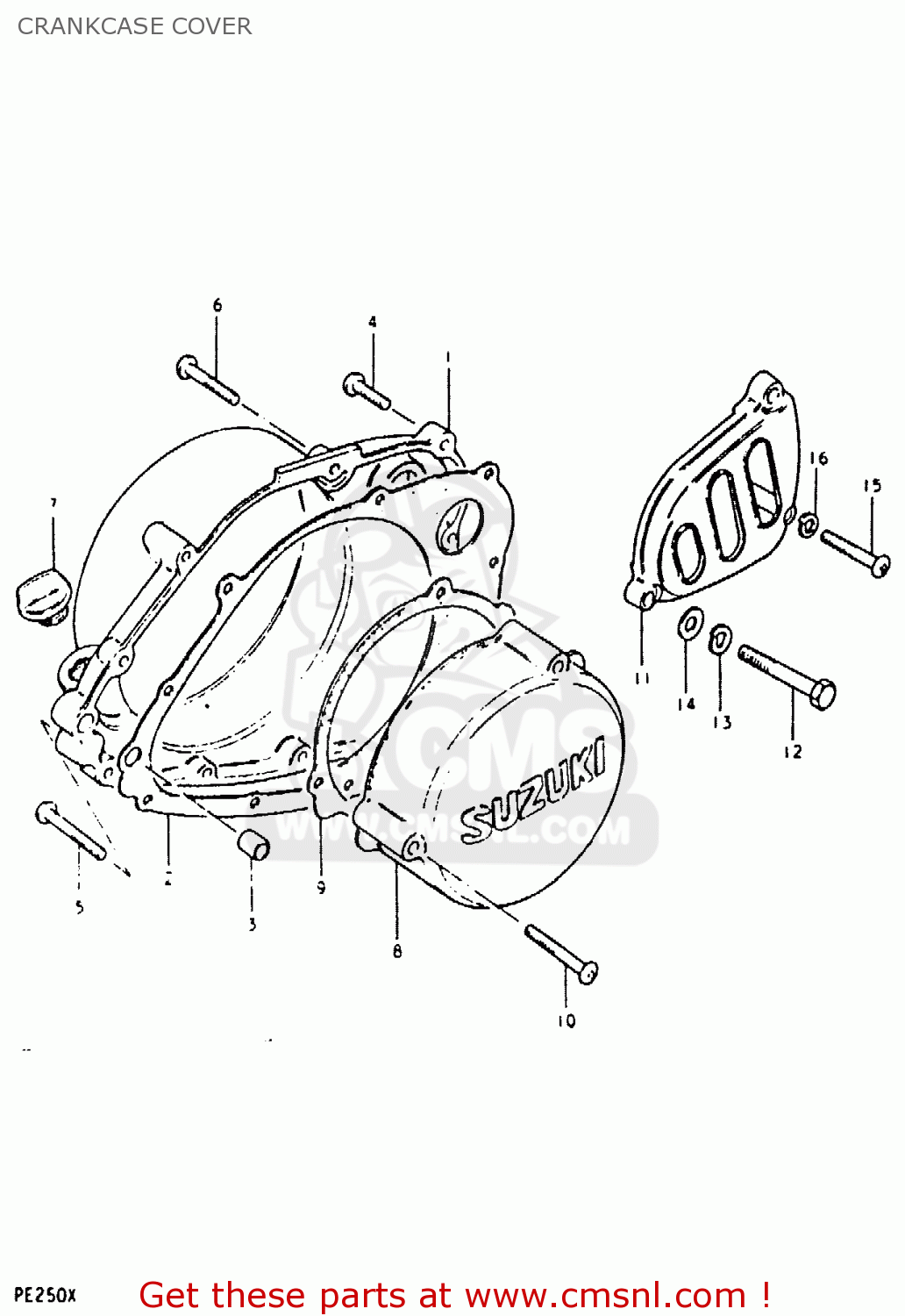

Crankcase cover diagram PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

prices are in EUR

ref

part #

description

quantity

1134140300
ref: 1

COVER,CLUTCH

€ 197.50

1148240300
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 17.50

0920613001
ref: 3

PIN

€ 2.50

0211206258
ref: 4

SCREW

€ 2.00

0211206458
ref: 5

SCREW (6X45)

€ 2.00

0211206308
ref: 6

SCREW 6X30

€ 2.50

0925920003
ref: 7

PLUG,OIL FILTER

€ 8.00

1135140900
ref: 8

COVER,MAGNETO

€ 102.00

9-1

1148340900
ref: 9-1
MODEL T

GASKET,MAGNETO COVER (NAS)

€ 3.50

9-2

1148340910
ref: 9-2
MODEL X

GASKET,MAGNETO COVER (NAS)

€ 3.50

0211206508
ref: 10

SCREW

€ 2.50

1136040401
ref: 11

COVER,ENGINE SPROCKET

€ 60.50

0110708558
ref: 12

BOLT 8X55

€ 3.00

0832121068
ref: 13

LOCK WASHER

€ 2.50

0832221068
ref: 14

WASHER

€ 2.00

0211206508
ref: 15

SCREW

€ 2.50

0832121068
ref: 16

LOCK WASHER

€ 2.50
