TAIL LAMP
PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

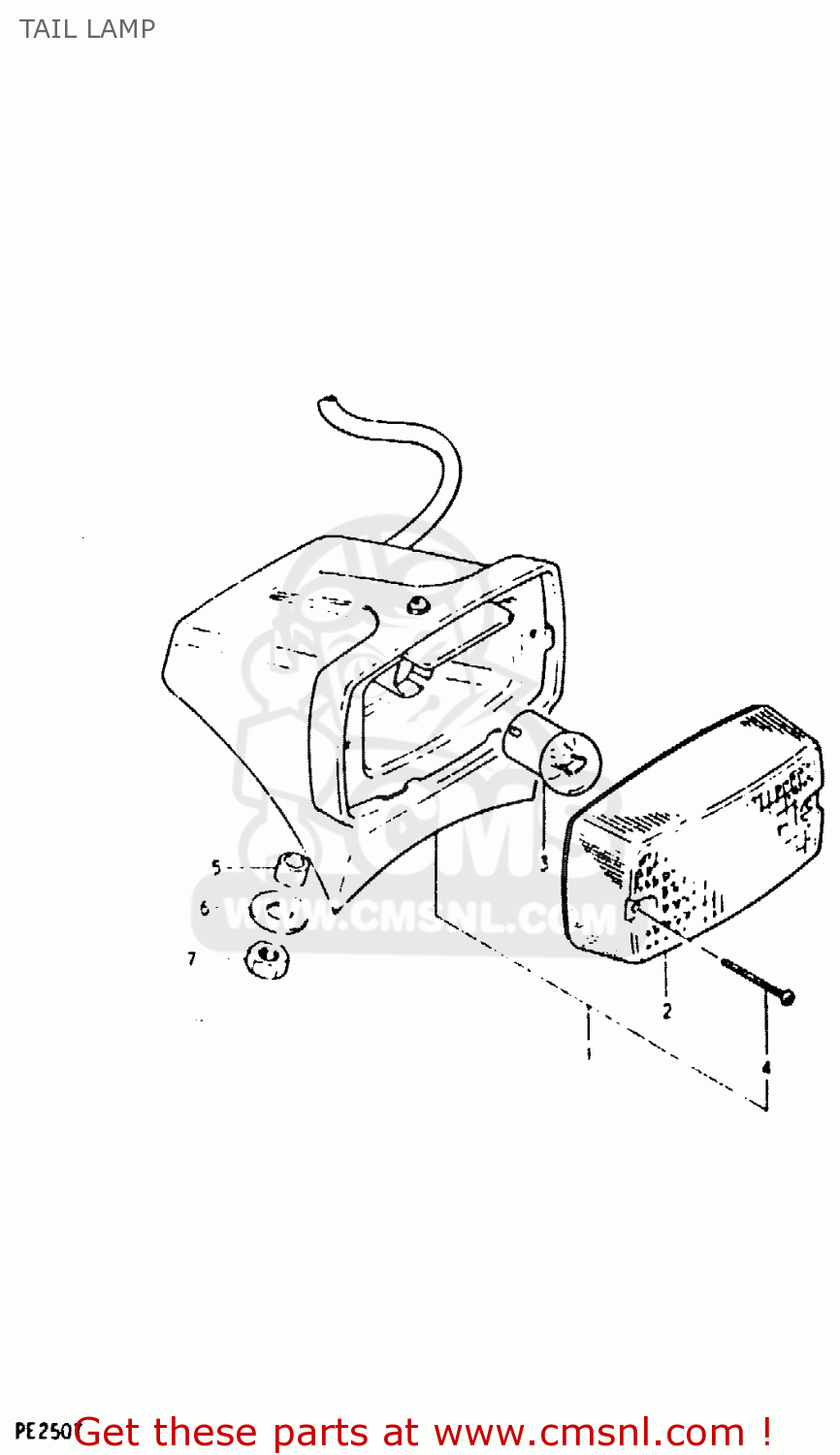

Tail lamp diagram PE250 1980 (T) (E01 E02 E04 E15 E21 E24)
TAIL LAMP PE250 1980 (T) (E01 E02 E04 E15 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571040530
ref: 1-1
MODEL T
LAMP ASSEMBLY,REAR COMBINATION
€ 72.50
1-2
3571040531
ref: 1-2
MODEL X
LAMP ASSEMBLY,REAR COMBINATION
€ 72.50
2
3571230410
ref: 2
LENS
€ 15.50
3
0947106049
ref: 3
BULB(6V5W,TOKAI DENSO)
€ 3.50
4
3572340610
ref: 4
SCREW,REAR COMBINATION LAMP LENS
€ 0.00
5
0918006011
ref: 5
SPACER (6.1X9X9)
€ 2.00
6
0916006007
ref: 6
WASHER
€ 2.00
7
0831011068
ref: 7
NUT
€ 2.50
