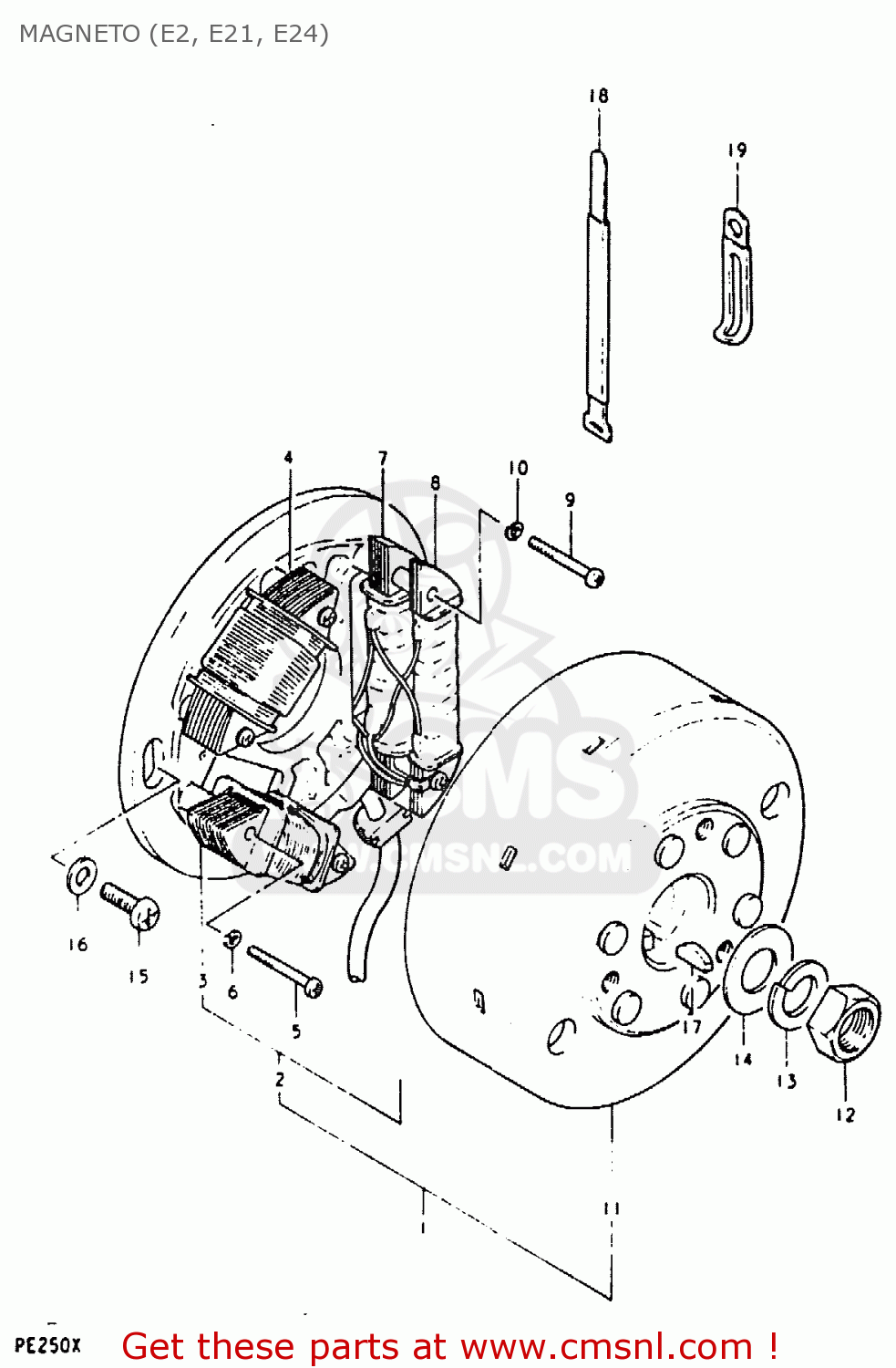

MAGNETO (E2, E21, E24)

ref

part #

description

quantity

0

NOTUSED
ref: 0
MODEL T : E2, E21, E

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

NOTUSED
ref: 0
MODEL X : E2, D24

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1

3210040630
ref: 1

MAGNETO ASSY

€ 303.00

2

3210140630
ref: 2

STATOR ASSY

€ 303.00

3

3212040630
ref: 3

COIL, LIGHTING (A)

€ 54.50

4

3212540630
ref: 4

COIL, LIGHTING (B)

€ 52.00

5

0211204308
ref: 5

SCREW (4X30)

€ 1.50

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7

3214040620
ref: 7

COIL,PRIMARY

€ 72.00

8

3215040620
ref: 8

COIL,PULSER

€ 60.00

9

0211204358
ref: 9

SCREW

€ 2.00

10

0832121048
ref: 10

LOCK WASHER

€ 2.00

11

3210240630
ref: 11

ROTOR,FLYWHEEL

€ 349.00

12

0914010003
ref: 12

NUT (10MM)

€ 3.50

13

0832121108
ref: 13

LOCK WASHER

€ 2.00

14

0832221108
ref: 14

WASHER

€ 2.50

15

0211206168
ref: 15

SCREW

€ 2.50

16

0832221068
ref: 16

WASHER

€ 2.00

17

0834131049
ref: 17

KEY 4MM

€ 3.50

18

0940711301
ref: 18

CLAMP L:110

€ 6.00

19

0940406412
ref: 19

CLAMP

€ 2.50

all assemblies
