FRONT FENDER

PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

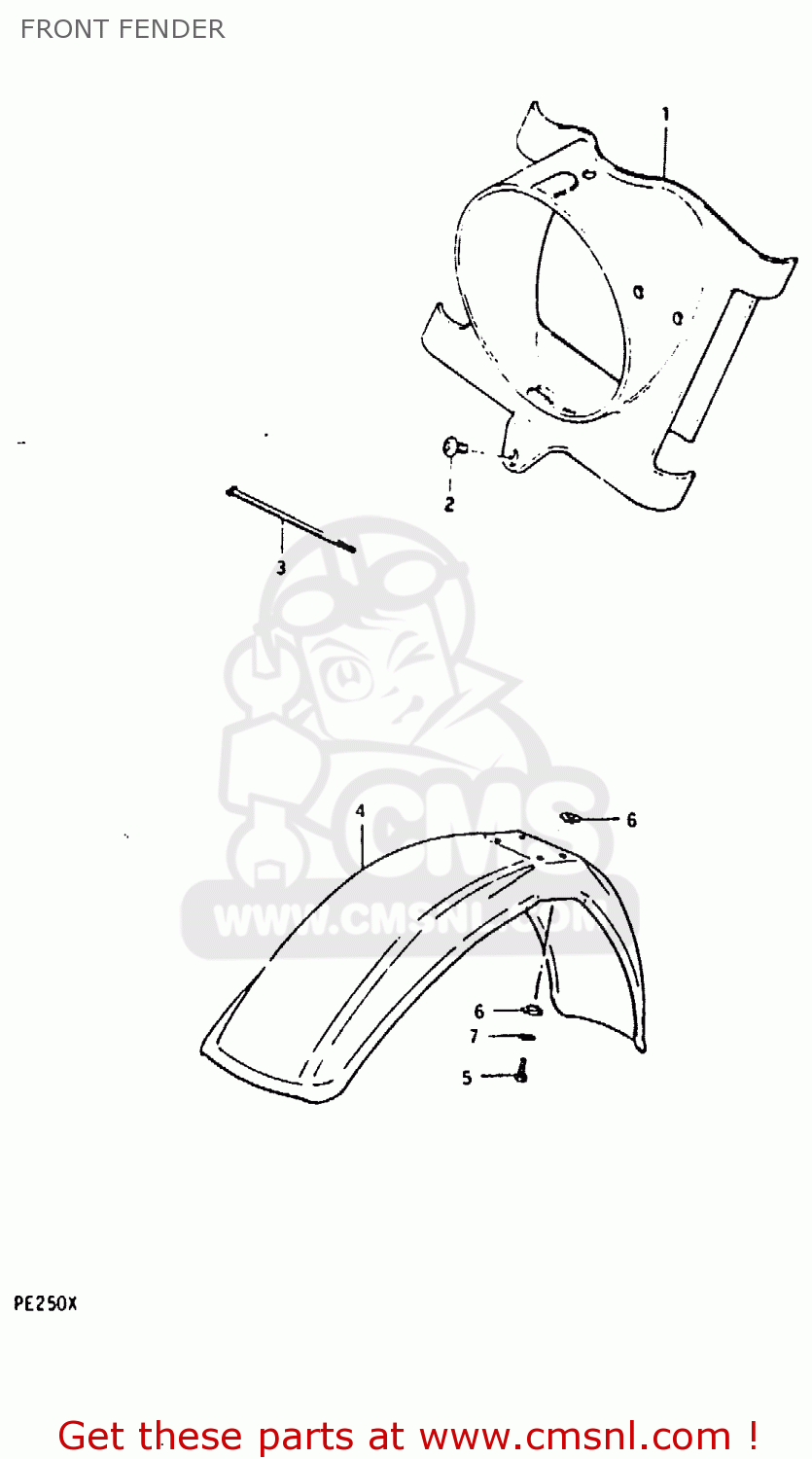

Front fender diagram PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

FRONT FENDER PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

FRONT FENDER PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

5181141520163
ref: 1

HOUSING,HEADLAMP

€ 31.50

2

0214205107
ref: 2

SCREW

€ 2.50

3

0940720401
ref: 3

CLAMP

€ 4.50

4-1

5311140410163
ref: 4-1
MODEL T TO 53111-404

FENDER,FRONT

€ 89.50

4-2

5311140411163
ref: 4-2
MODEL X

FENDER,FRONT

€ 89.50

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0916906016
ref: 6

WASHER

€ 1.50

7

0832121068
ref: 7

LOCK WASHER

€ 2.50
