FRONT FORK
PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

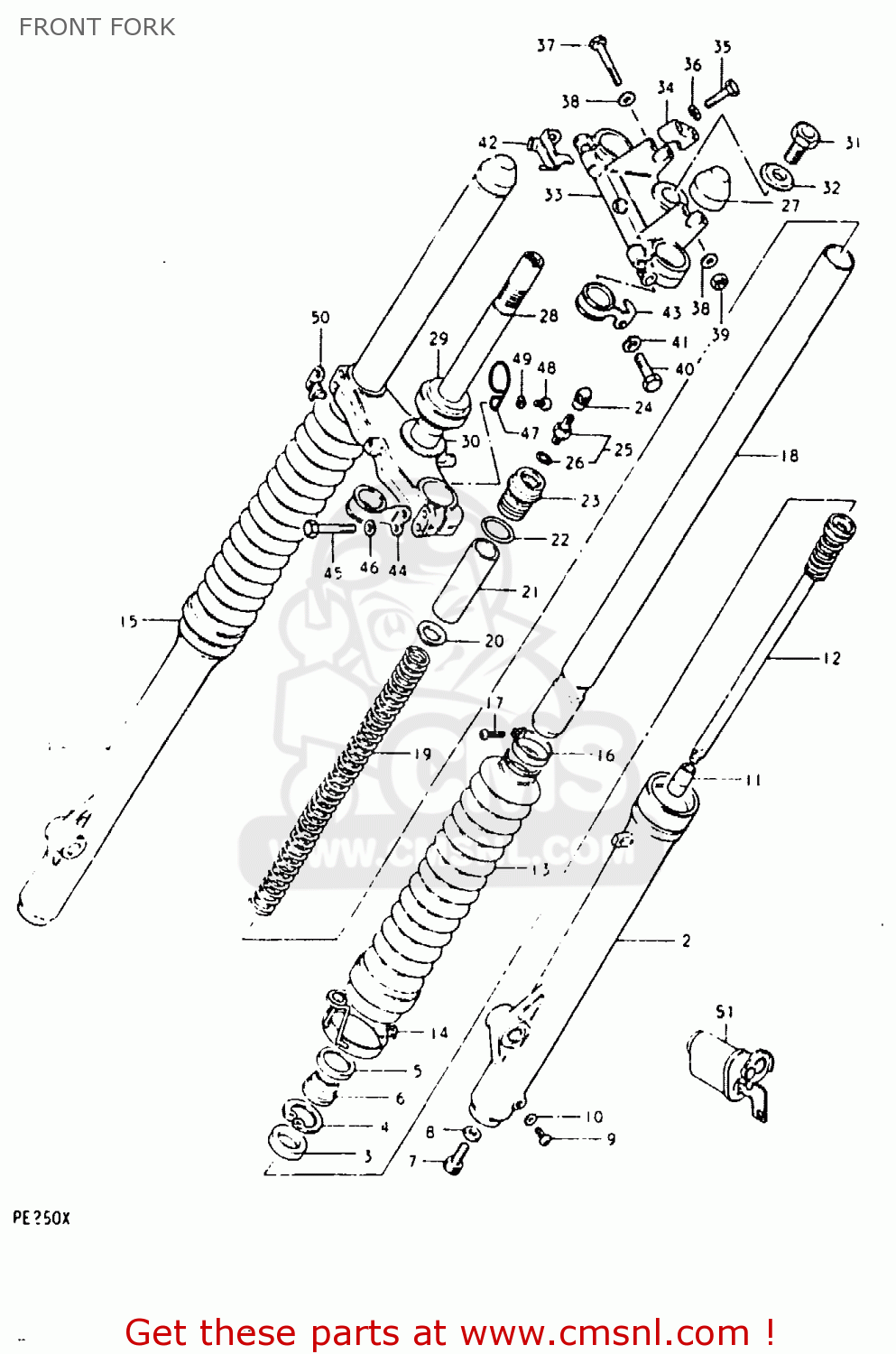

Front fork diagram PE250 1980 (T) (E01 E02 E04 E15 E21 E24)
FRONT FORK PE250 1980 (T) (E01 E02 E04 E15 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
0
5110040600
ref: 0
DAMPER SET
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1
5113040500
ref: 1
TUBE,OUTER,RIGHT
€ 101.00
2
5114040500
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5115341211
ref: 3
OIL SEAL,FRONT FORK
€ 28.50
4
5115630400
ref: 4
5115630400
5
5114940500
ref: 5
CASE,DUST SEAL
€ 7.50
6
5117340500
ref: 6
SEAL,DUST
€ 9.00
7
5114716510
ref: 7
BOLT,FORK CYLINDER(10X25)
€ 3.50
8
5114841310
ref: 8
GASKET (NAS)
€ 2.50
9
0211204088
ref: 9
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 3.00
11
5119541210
ref: 11
PIECE,OIL LOCK
€ 12.00
12
5114640500
ref: 12
CYLINDER,FRONT FORK
€ 89.50
13
5157141211
ref: 13
BOOT
€ 38.00
14
5157240500
ref: 14
BAND,FORK COVER BOOT
€ 0.00
15
5157341410
ref: 15
BAND,FRONT FORK COVER
€ 10.00
16
5157541410
ref: 16
BAND,BOOT
€ 8.00
17
0211204168
ref: 17
SCREW
€ 1.00
18
5111040500
ref: 18
TUBE,FORK,INNER
€ 184.50
19
5117140600
ref: 19
SPRING
€ 0.00
20
5117238010
ref: 20
GUIDE,FRONT FORK SPRING C
€ 9.50
21
5117638010
ref: 21
COLLAR,SPRING
€ 0.00
22
5111716310
ref: 22
O RING
€ 4.50
23
5135140500
ref: 23
CAP,FORK INNER TUBE
€ 0.00
24
5129449000
ref: 24
CAP,VALVE
€ 22.50
25
5129349001
ref: 25
VALVE
€ 18.00
26
5111741211
ref: 26
O RING
€ 6.50
27
5118941220
ref: 27
CAP
€ 6.00
28-1
514104050008C
ref: 28-1
STEM,STEERING
€ 121.50
28-2
NOTUSED
ref: 28-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
29
0926530005
ref: 29
BEARING
€ 49.50
30
0821130402
ref: 30
WASHER,THRUST
€ 4.00
31
5135141320
ref: 31
BOLT
€ 8.50
32
5135641310
ref: 32
WASHER
€ 6.00
33
513114050008C
ref: 33
HEAD,STEERING STEM
€ 287.50
34
562114030008C
ref: 34
HOLDER,HANDLEBAR
€ 7.00
35
0110708358
ref: 35
BOLT
€ 3.50
36
0832121088
ref: 36
LOCK WASHER
€ 2.00
37
0110708508
ref: 37
BOLT 8X50
€ 3.00
38
0832221088
ref: 38
WASHER
€ 2.00
39
0831012088
ref: 39
NUT
€ 2.00
40
0110710458
ref: 40
BOLT
€ 2.00
41
0832121108
ref: 41
LOCK WASHER
€ 2.00
42
9641040500
ref: 42
BRACKET,TOOL FITTING,UPPER
€ 4.00
43
5862140500
ref: 43
GUIDE,CABLE
€ 8.00
44
5862140301
ref: 44
CLIP,CABLE
€ 14.50
45
0110708458
ref: 45
BOLT 8X45
€ 2.50
46
0832121088
ref: 46
LOCK WASHER
€ 2.00
47
5145531010
ref: 47
CLIP
€ 5.00
48
0211206108
ref: 48
SCREW
€ 1.50
49
0832121068
ref: 49
LOCK WASHER
€ 2.50
50
9642141401
ref: 50
BRACKET,TOOL FITTING,LOWER
€ 10.50
51
NOTUSED
ref: 51
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
