CRANKSHAFT
PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

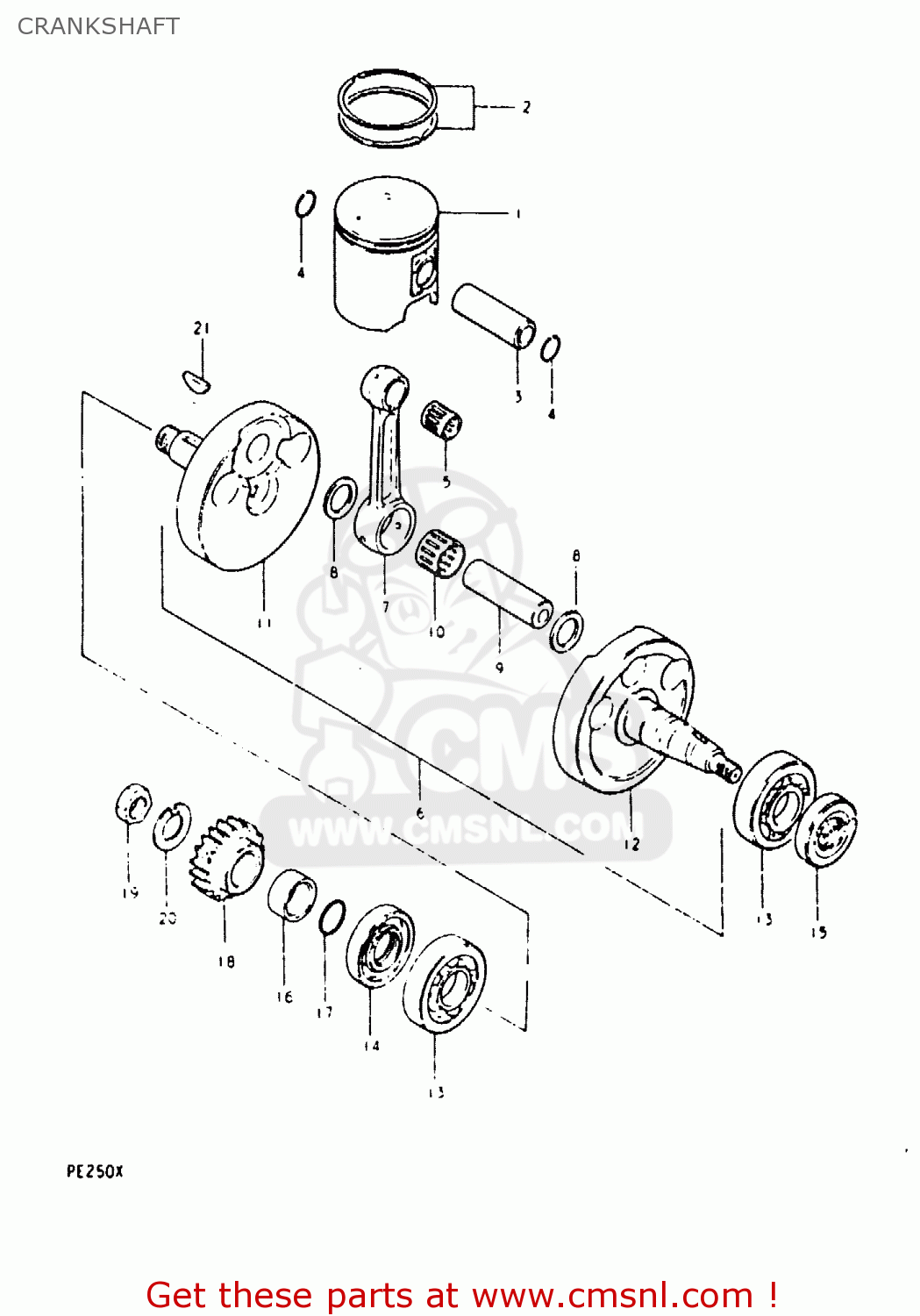

Crankshaft diagram PE250 1980 (T) (E01 E02 E04 E15 E21 E24)
CRANKSHAFT PE250 1980 (T) (E01 E02 E04 E15 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211040601
ref: 1-1
PISTON
€ 69.00
1-2
1211040601025
ref: 1-2
PISTON
€ 119.50
1-3
1211040601050
ref: 1-3
PISTON (67.50MM)
€ 114.50
2-1
1214041600
ref: 2-1
RING SET,PISTON
€ 22.50
2-2
1214041600025
ref: 2-2
RING SET,PISTON (OS:0.25)
€ 26.00
2-3
1214041600050
ref: 2-3
RING SET,PISTON (OS:0.5)
€ 22.50
3
1215192201
ref: 3
PIN,PISTON (18MM)
€ 14.00
4
0938118002A
ref: 4
CIRCLIP,PISTON PIN
€ 1.50
5
0926318011
ref: 5
BEARING(18X23X22)
€ 14.00
6
1220040600
ref: 6
CRANKSHAFT ASSEMBLY
€ 678.50
7
1216140300
ref: 7
ROD,CONNECTING
€ 113.00
8
0916024015
ref: 8
WASHER(24X29X1.5)
€ 7.50
9
1221141101
ref: 9
PIN,CRANK
€ 27.00
10
0926324011
ref: 10
ROLLER BEARING (24X30X1
€ 56.00
11
1222140600
ref: 11
CRANKSHAFT
€ 0.00
12
1226140600
ref: 12
CRANKSHAFT,LEFT
€ 180.00
13
0926225047
ref: 13
BEARING
€ 29.00
14
0928932002
ref: 14
SEAL,OIL(32X52X8.4)
€ 27.00
15
0928324001
ref: 15
SEAL,OIL(24X50X9)
€ 19.00
16
0918020074
ref: 16
SPACER
€ 0.00
17
0928020004
ref: 17
O RING(D:2.4,ID:19.8)
€ 3.00
18
2111140301
ref: 18
GEAR,PRIMARY DRIVE
€ 41.00
19
0914014017
ref: 19
NUT
€ 4.00
20
0916614010
ref: 20
WASHER
€ 2.00
21
0834131059
ref: 21
KEY
€ 3.00
