STAND - FOOTREST

PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

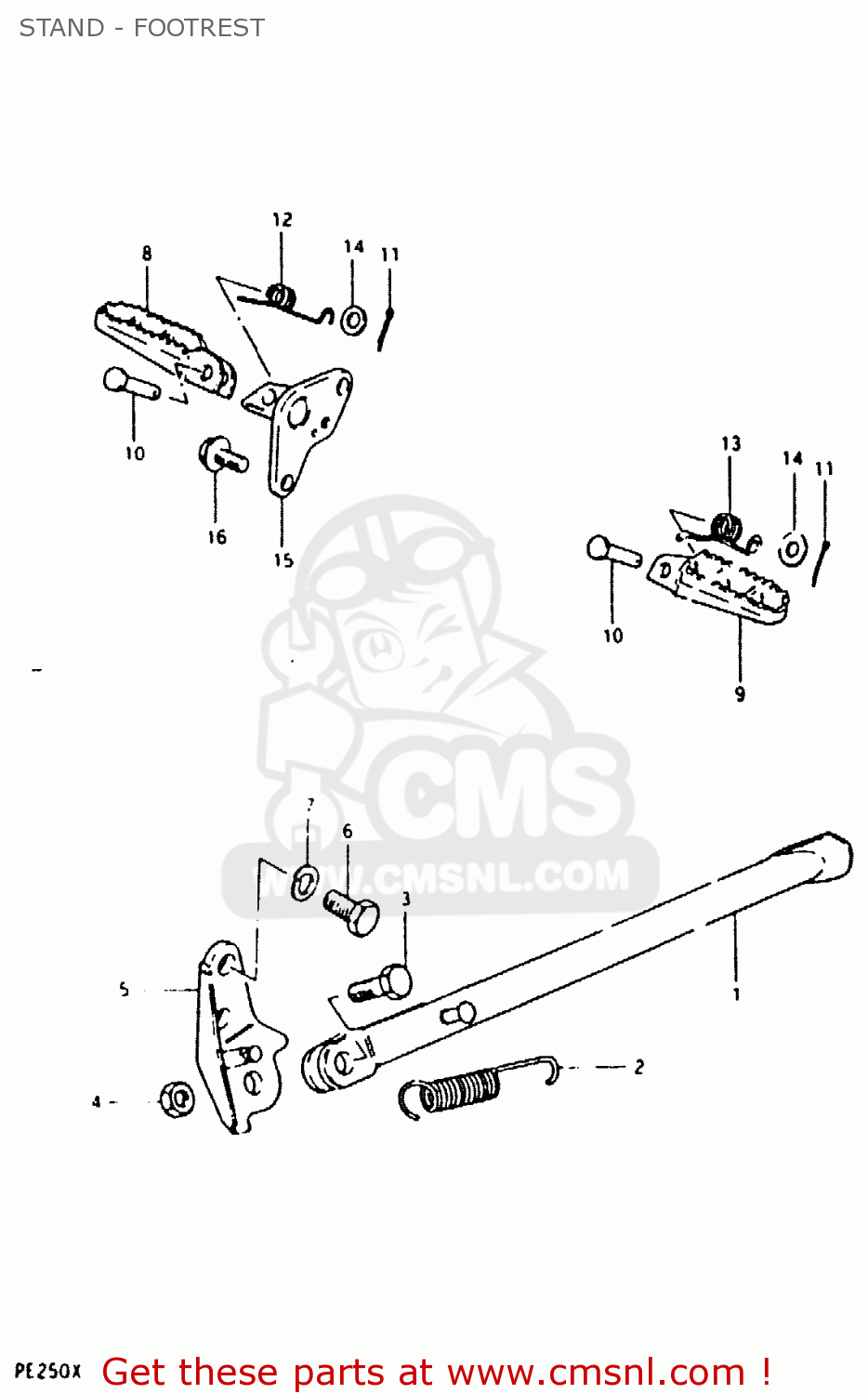

Stand - footrest diagram PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

prices are in EUR

ref

part #

description

quantity

4231040500
ref: 1

STAND,SIDE

€ 83.50

0944317007
ref: 2

SPRING

€ 4.50

0910010067
ref: 3

BOLT(10X30)

€ 3.50

0831022108
ref: 4

NUT

€ 2.50

4233040400
ref: 5

BRACKET,PROP STAND

€ 65.00

0910010118
ref: 6

BOLT(10X19)

€ 3.00

0832121108
ref: 7

LOCK WASHER

€ 2.00

4355140400
ref: 8

RUBBER,FRONT FOOTREST

€ 31.00

4356140400
ref: 9

FOOTREST

€ 24.50

0920008035
ref: 10

PIN

€ 6.50

0411120208
ref: 11

PIN 20X20

€ 1.50

0944814014
ref: 12

SPRING

€ 3.00

0944814015
ref: 13

SPRING

€ 3.00

0832221088
ref: 14

WASHER

€ 2.00

4351040600
ref: 15

HOLDER,FRONT FOOTREST,RIGHT

€ 40.00

0910310100
ref: 16

BOLT(10X20)

€ 6.00
