HEADLAMP (E2)

PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

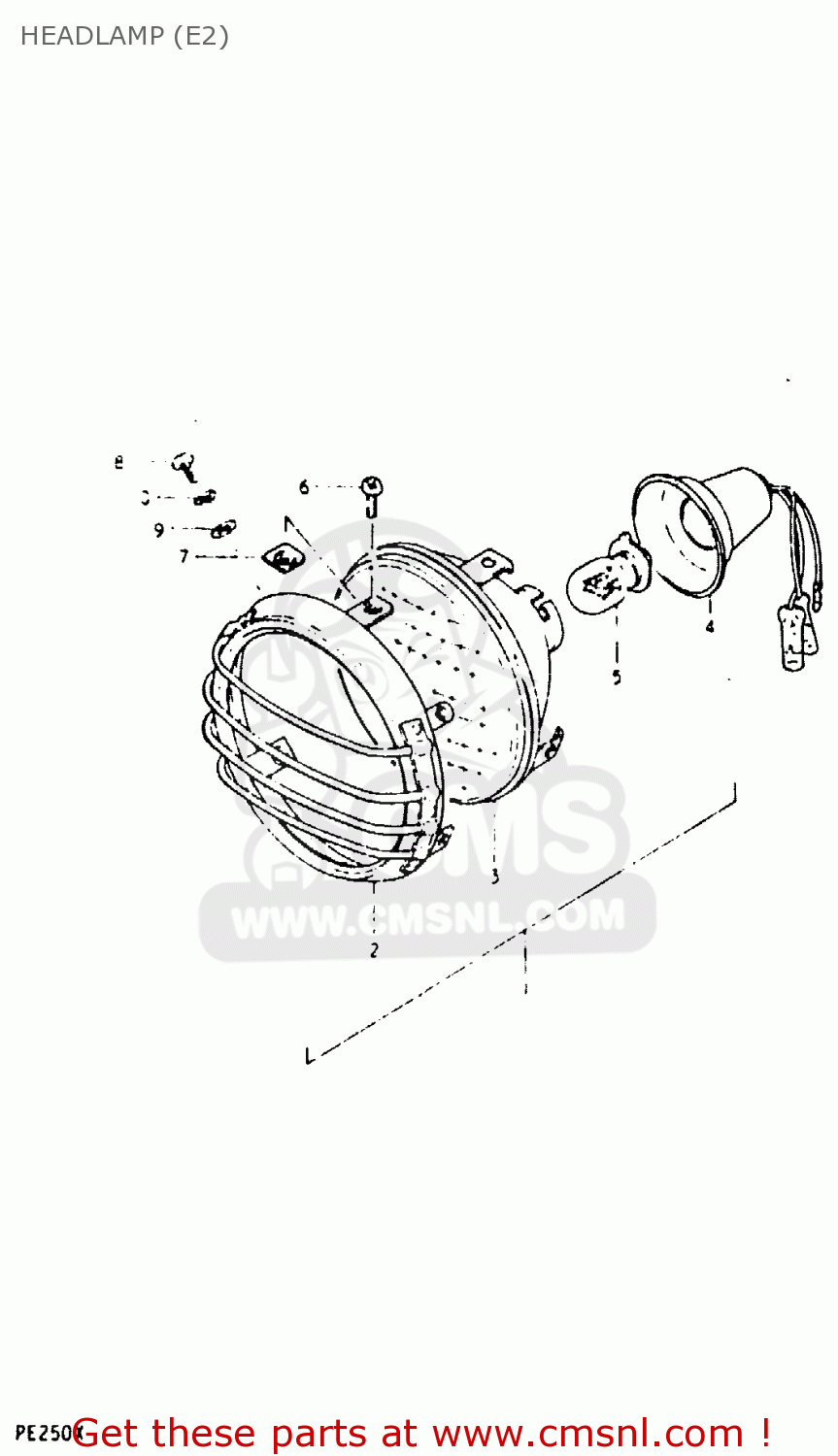

Headlamp (e2) diagram PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

HEADLAMP (E2) PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

HEADLAMP (E2) PE250 1980 (T) (E01 E02 E04 E15 E21 E24)

prices are in EUR

ref

part #

description

quantity

1

3510041521
ref: 1

HEADLAMP ASSY

€ 0.00

2

3511141501
ref: 2

RIM,HEADLAMP

€ 55.00

3

3512141500
ref: 3

LAMP UNIT

€ 88.00

4

3517141501
ref: 4

SOCKET,HEADLAMP

€ 15.50

5

0947106028
ref: 5

BULB (7V,18/18W)

€ 6.50

6

0211205088
ref: 6

SCREW

€ 2.00

7

3515548510
ref: 7

NUT

€ 2.00

8

0211204128
ref: 8

SCREW

€ 1.50

9

0832221048
ref: 9

WASHER

€ 2.00

10

0832121048
ref: 10

LOCK WASHER

€ 2.00
