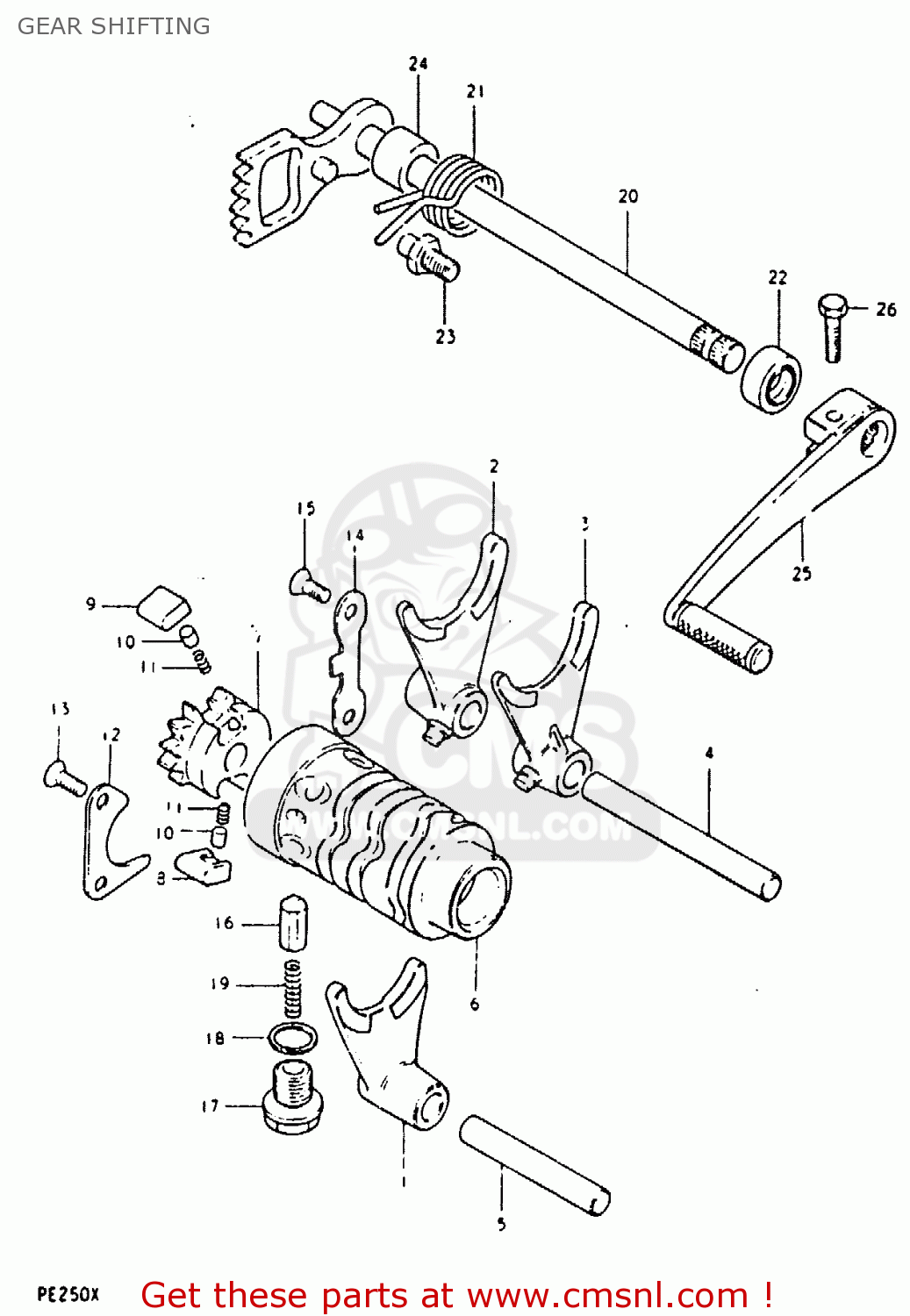

GEAR SHIFTING

ref

part #

description

quantity

1

2521140600
ref: 1

FORK,GEAR SHIFT NO.1

€ 49.00

2

2522140600
ref: 2

FORK,GEAR SHIFT NO.2

€ 50.00

3

2523140600
ref: 3

FORK,GEAR SHIFT NO.3

€ 49.00

4

2541140900
ref: 4

SHAFT,GEAR SHIFT FORK

€ 14.50

5

2541116400
ref: 5

SHAFT,GEAR SHIFT FORK

€ 15.00

6

2531040600
ref: 6

CAM,GEAR SHIFT

€ 69.50

7

2532211000
ref: 7

RETAINER,GEAR SHIFT CAM

€ 14.50

8

2532311000
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532411000
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533116500
ref: 12

LIFTER,GEAR SHIFT PAWL

€ 4.50

13

0212206128
ref: 13

SCREW

€ 3.00

14

2534140400
ref: 14

GUIDE,GEAR SHIFT CAM

€ 6.50

15

0212206128
ref: 15

SCREW

€ 3.00

16

2535111000
ref: 16

STOPPER,GEAR SHIFTING

€ 6.50

17

2535211000
ref: 17

BOLT,GEAR SHAFT CAM STOPPER

€ 4.50

18

0916814004
ref: 18

GASKET(14X19.2X2) (NAS)

€ 2.50

19

0944005007
ref: 19

SPRING

€ 12.00

20

2551040900
ref: 20

SHAFT,GEAR SHIFT

€ 48.00

21

0944426013
ref: 21

SPRING

€ 3.50

22

0928512002
ref: 22

OIL SEAL

€ 7.00

23

2567101000
ref: 23

STOPPER,GEAR SHIFT CAM

€ 3.00

24

0918012083
ref: 24

SPACER(12X20X15.3)

€ 2.50

25

2561040302
ref: 25

LEVER ASSEMBLY,GEAR SHIFTING

€ 55.00

26

0910006091
ref: 26

BOLT

€ 2.00

all assemblies
