BATTERY

RF900R 1994 (R) USA (E03)

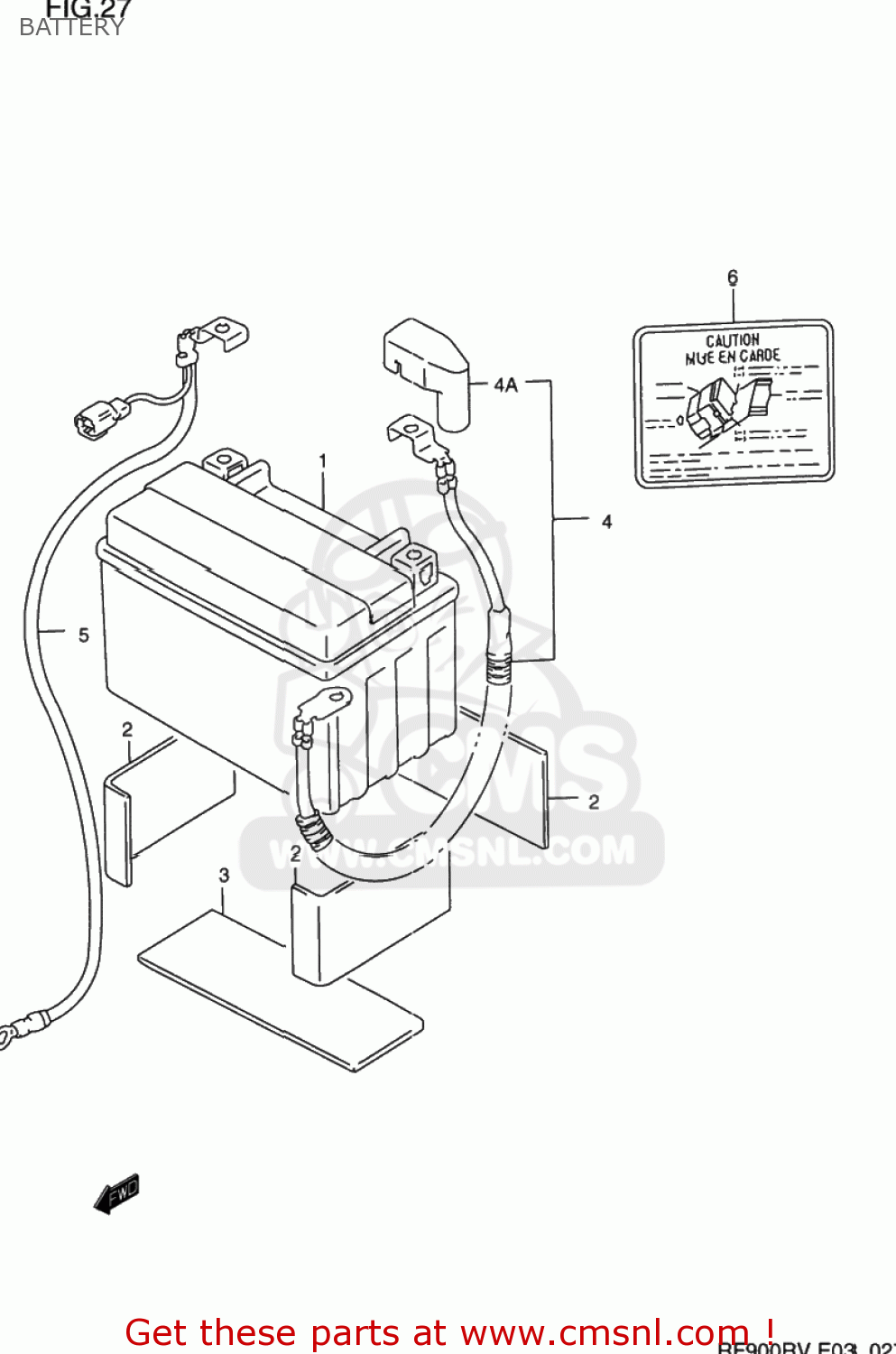

Battery diagram RF900R 1994 (R) USA (E03)

BATTERY RF900R 1994 (R) USA (E03)

BATTERY RF900R 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361010D00
ref: 1
33610-33E20

BATTERY ASSEMBLY (12V) YTX

€ 108.50

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3

3365247D00
ref: 3
33652-47D01

PROTECTOR,BATTERY

€ 7.00

4

3382021E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 27.00

4A

3362433C10
ref: 4A

CAP,BATTERY PLUS

€ 6.50

5

3386046E00
ref: 5

WIRE,BATTERY MINUS

€ 27.50

6

3369017E00
ref: 6

PLATE,BATTERY CAUTION

€ 3.00
