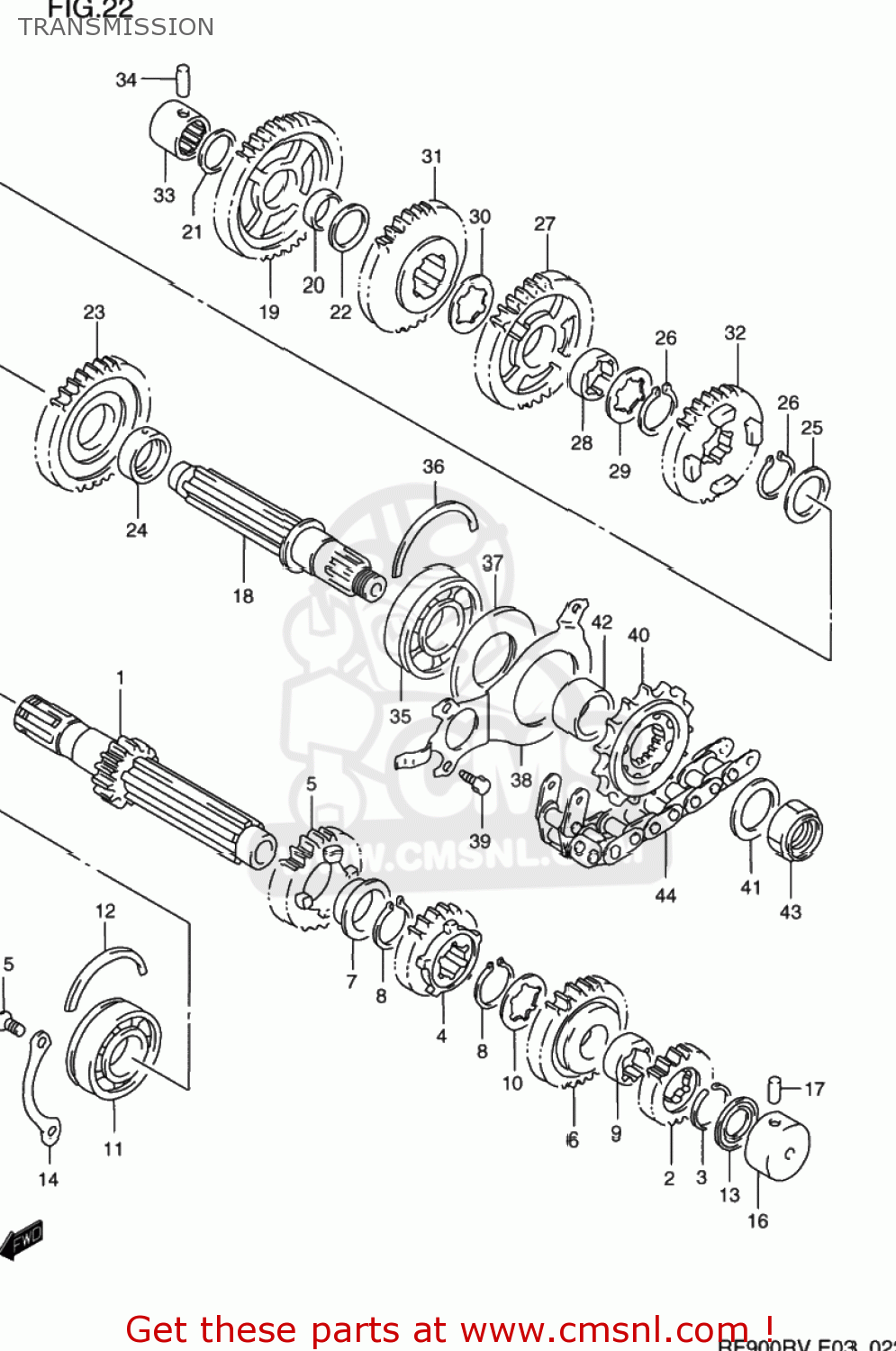

TRANSMISSION

ref

part #

description

quantity

1-1

2412026D10
ref: 1-1

SHAFT COMP,COUNTER

€ 292.50

1-2

2412026D20
ref: 1-2

SHAFT,COUNTER

€ 212.00

2

2422126D00
ref: 2

GEAR,2ND DRIVE

€ 86.50

3

0938028008
ref: 3

CIRCLIP

€ 5.00

4

2423126D02
ref: 4

GEAR,THIRD DRIVE

€ 164.50

5

2424126D10
ref: 5

GEAR,FOURTH DRIVE

€ 149.50

6

2425126D01
ref: 6
24251-26D02

GEAR,FIFTH DRIVE

€ 115.50

7

0930128001
ref: 7

BUSH(28X32X2)

€ 19.50

8

0833131286
ref: 8
08331-3128A

CIRCLIP

€ 2.50

9

2433224A00
ref: 9

BUSH

€ 18.00

10

0916728001
ref: 10

WASHER,LOCK

€ 3.00

11-1

0926225051
ref: 11-1
09262-25105

BEARING(25X62X17)

€ 59.50

11-2

0926225105
ref: 11-2

BEARING(25X62X17)

€ 59.50

12-1

0939062006
ref: 12-1
09390-62012

C-RING

€ 5.00

12-2

0939062012
ref: 12-2

C RING

€ 5.00

13

0928520006
ref: 13

SEAL,OIL(20X31.2X2.7)

€ 7.00

14

2474127A00
ref: 14

RETAINER,CNTR SHAFT BEARING

€ 7.00

15

0212206163
ref: 15
02122-0616A

SCREW ,6X16

€ 2.00

16

0926320082
ref: 16
09263-20085

BEARING

€ 50.50

17

0422107129
ref: 17

PIN

€ 1.50

18

2413146E10
ref: 18

SHAFT,DRIVE

€ 194.00

19

2431126D10
ref: 19

GEAR,1ST DRIVEN

€ 117.00

20

0930022005
ref: 20
24312-02F00

BUSHING

€ 19.50

21-1

0821120341
ref: 21-1

WASHER

€ 2.00

21-2

0918120251
ref: 21-2

SHIM(20X34X1)

€ 3.00

22-1

0821122341
ref: 22-1

WASHER

€ 3.00

22-2

0918122223
ref: 22-2

SHIM(22X34X1)

€ 3.00

23

2432126D01
ref: 23

GEAR,2ND DRIVEN

€ 174.50

24

0930028002
ref: 24

BUSH(28X32X11)

€ 15.50

25-1

0821128381
ref: 25-1
09181-28195

WASHER, THRUST

€ 3.50

25-2

0918128195
ref: 25-2

SHIM(28X38X1)

€ 3.50

26

0833131286
ref: 26
08331-3128A

CIRCLIP

€ 2.50

27

2433126D10
ref: 27

GEAR,3RD DRIVEN

€ 285.00

28

2433248B00
ref: 28
24332-48B01

BUSHING,THIRD DRIVEN GEAR

€ 28.50

29

0916728001
ref: 29

WASHER,LOCK

€ 3.00

30

0916728008
ref: 30

WASHER,LOCK

€ 6.00

31-1

2434126D10
ref: 31-1
24341-26D11

GEAR,FOURTH DRIVEN

€ 138.00

31-2

2434126D11
ref: 31-2

GEAR,4TH DRIVEN

€ 138.00

32-1

2435126D20
ref: 32-1
24351-26D21

GEAR,FIFTH DRIVEN

€ 134.50

32-2

2435126D21
ref: 32-2

GEAR,5TH DRIVEN

€ 134.50

33

0926320040
ref: 33

BEARING(20X34X20)

€ 42.50

34

0422107209
ref: 34

PIN

€ 1.50

35

0926228025
ref: 35

BEARING(28X70X18)

€ 97.50

36

0939070001
ref: 36

C RING

€ 5.50

37

0928336008
ref: 37

SEAL,OIL(34.8X70X6)

€ 16.50

38

2475117E00
ref: 38

RETAINER,DRIVE SHAFT OIL SEAL

€ 9.00

39

0150006123
ref: 39
01500-0612A

BOLT

€ 2.00

40

2751048B00
ref: 40

SPROCKET,ENGINE(15T)

€ 53.50

41-1

0821125402
ref: 41-1
09181-25268

WASHER,THRUST

€ 3.00

41-2

0918125268
ref: 41-2

SHIM(25X40X1.5)

€ 3.00

42

0918025098
ref: 42

SPACER(25X36X17.7)

€ 19.00

43

0915920004
ref: 43

NUT

€ 12.00

44

2760040C20110
ref: 44
27600-46E20-116

CHAIN ASSEMBLY,DRIVE 110LE

€ 307.50
