CYLINDER

RF900R 1994 (R) USA (E03)

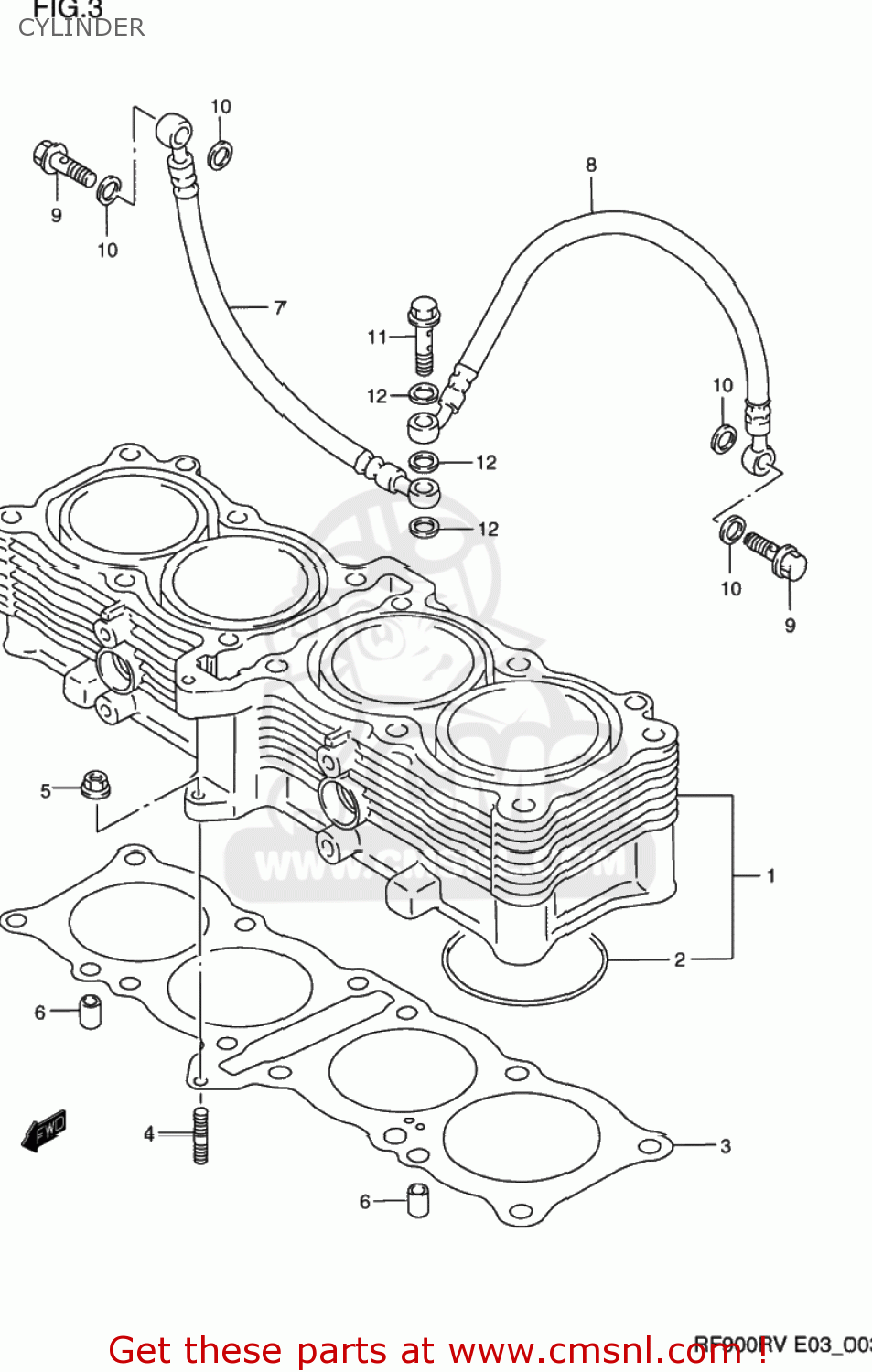

Cylinder diagram RF900R 1994 (R) USA (E03)

CYLINDER RF900R 1994 (R) USA (E03)

CYLINDER RF900R 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121031E00
ref: 1

CYLINDER COMP

€ 908.00

2

0928071004
ref: 2

O RING(D:2.6,ID:69.6)

€ 19.00

3

1124131E00
ref: 3

GASKET,CYLINDER

€ 35.50

4

0142106203
ref: 4
01421-0620A

STUD,M6X1X32

€ 2.50

5

0831610063
ref: 5
08316-1006B

NUT

€ 2.50

6

0421111189
ref: 6

PIN

€ 2.00

7

1128121E00
ref: 7

HOSE,CYLINDER HEAD OIL,R

€ 77.50

8

1128221E00
ref: 8

HOSE,CYLINDER HEAD OIL,L

€ 91.00

9

1128417E00
ref: 9
09360-08013

BOLT,OIL PIPE UNION,NO

€ 15.00

10

0916808016
ref: 10

GASKET(8.2X14X1) (NAS)

€ 1.00

11

1128532C00
ref: 11
09360-10052

BOLT,OIL PIPE UNION,NO

€ 16.50

12

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00
