FOOTREST
RF900R 1994 (R) USA (E03)

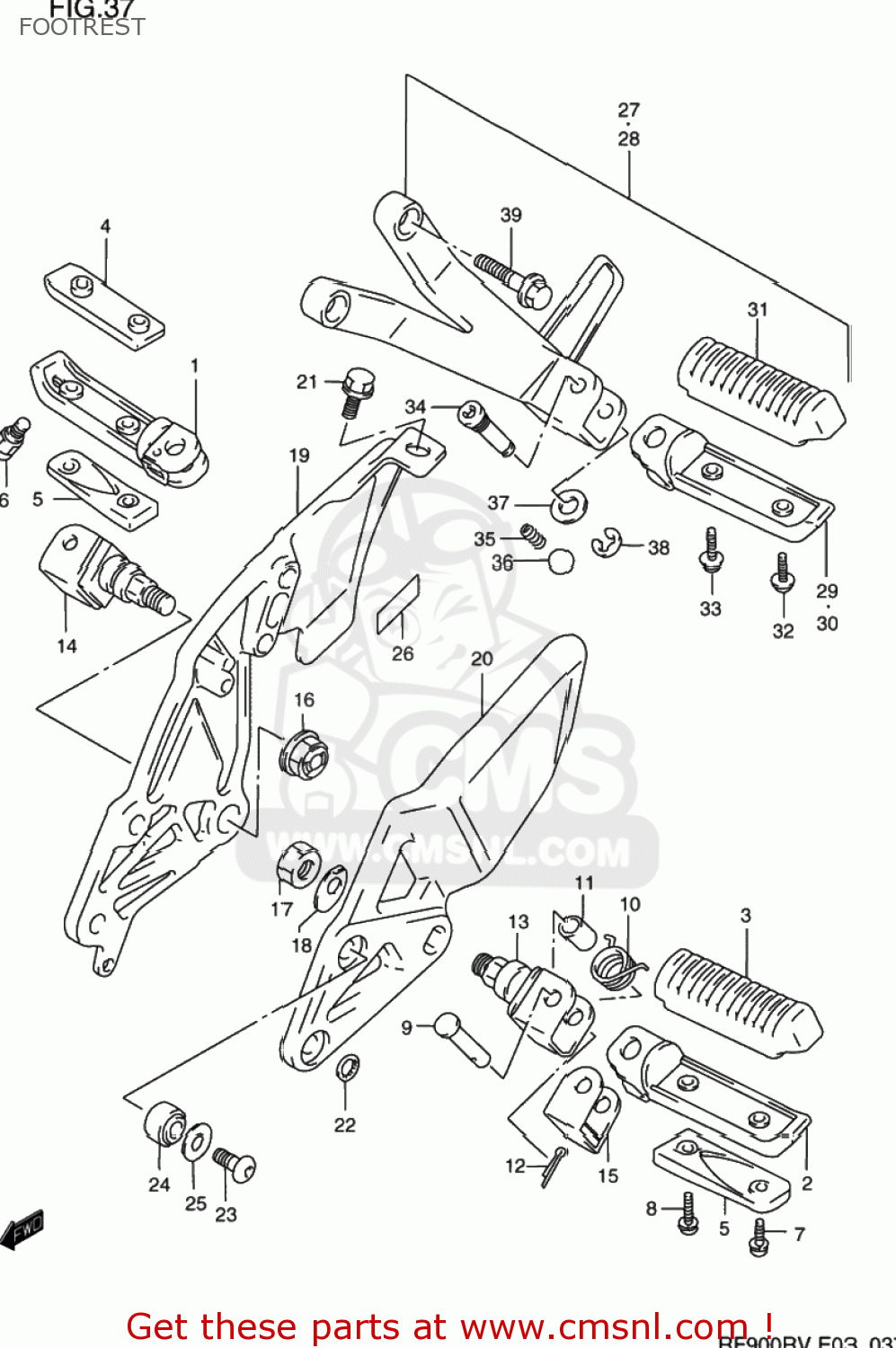

Footrest diagram RF900R 1994 (R) USA (E03)
FOOTREST RF900R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351131E00
ref: 1
BAR,FR FOOTREST,R
€ 45.00
2
4352140C00
ref: 2
BAR,FOOTREST,L
€ 37.50
3
4355046E00
ref: 3
RUBBER,FOOTREST
€ 16.50
4
4353446E00
ref: 4
BAR,FR FOOTREST NO.2
€ 21.00
5-1
4353631E00
ref: 5-1
43536-31E01
BALANCER,FRONT FOOTREST,LOWER
€ 25.50
5-2
4353631E01
ref: 5-2
BALANCER,FR FOOTREST LWR
€ 25.50
6
4357648B01
ref: 6
43576-48B02
SENSOR,FOOTREST
€ 4.00
7
0211235303
ref: 7
02112-3530A
SCREW
€ 2.50
8
0211235353
ref: 8
SCREW
€ 2.50
9
0920008057
ref: 9
PIN
€ 3.00
10-1
0944819020
ref: 10-1
09448-18022
SPRING
€ 3.50
10-2
0944818022
ref: 10-2
SPRING
€ 3.50
11
0918008149
ref: 11
SPACER(8.1X12X22)
€ 7.00
12
0411125158
ref: 12
04111-2515A
PIN 20X15
€ 1.50
13
4353031E10
ref: 13
HOLDER,FRONT FOOTREST
€ 66.50
14
4354031E00
ref: 14
HOLDER,FR FOOTREST
€ 61.50
15
4357031E10
ref: 15
CUSHION,FR FOOTREST
€ 11.50
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17
0831000123
ref: 17
08310-0012A
NUT
€ 2.50
18
4321417C01
ref: 18
WASHER,FR FOOTREST
€ 52.50
19
4351121E00
ref: 19
BRACKET,FOOTREST,R
€ 168.00
20
4352121E00
ref: 20
BRACKET,FOOTREST,L
€ 168.00
21
0155008203
ref: 21
01550-0820A
BOLT
€ 3.00
22
0916408015
ref: 22
WASHER
€ 3.00
23
0910608129
ref: 23
BOLT(8X25)
€ 5.00
24
0931908025
ref: 24
BUSH
€ 13.50
25
0916008021
ref: 25
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
26
3285110D00
ref: 26
PROTECTOR(12X40)
€ 4.50
27
4360031E00
ref: 27
FOOTREST ASSY,PILLION,R
€ 215.00
28
4370031E00
ref: 28
FOOTREST ASSY,PILLION,L
€ 205.00
29
4361040C00
ref: 29
BAR,PILLION FOOTREST,R
€ 49.00
30
4362040C00
ref: 30
BAR,PILLION FOOTREST,L
€ 49.00
31
4355040C11
ref: 31
RUBBER,FOOTREST
€ 16.00
32
0211235163
ref: 32
02112-3516A
SCREW
€ 2.50
33
0211235203
ref: 33
02112-3520B
SCREW
€ 2.50
34
4364240C00
ref: 34
BOLT,PILLION FOOTREST
€ 5.50
35
0944005003
ref: 35
SPRING
€ 1.50
36
0611107004
ref: 36
BALL
€ 1.50
37
0916010031
ref: 37
09160-10126
WASHER
€ 2.50
38
0833211063
ref: 38
08332-1106A
E.RING
€ 2.00
39
0910608106
ref: 39
BOLT(8X20)
€ 3.00
