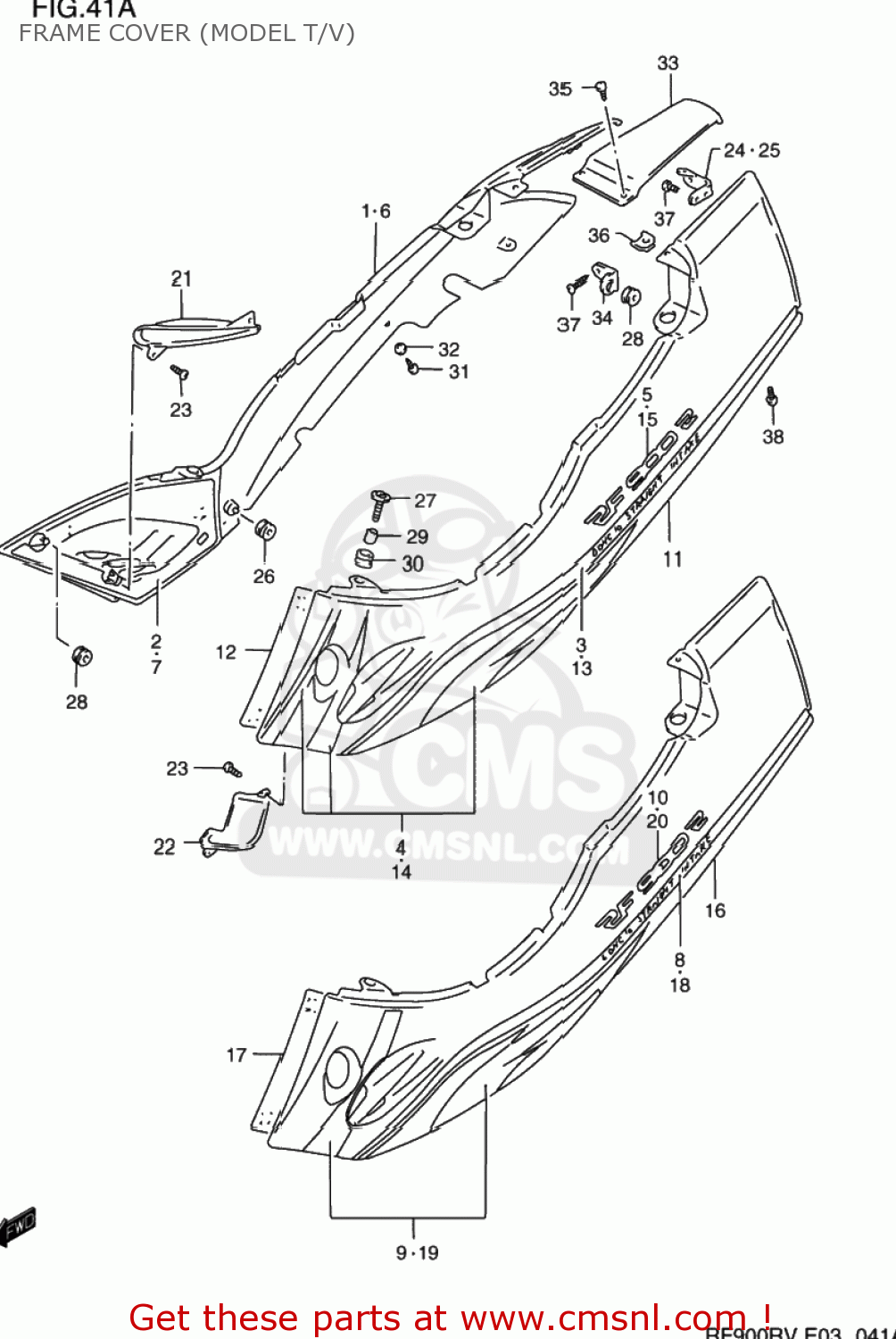

FRAME COVER (MODEL T/V)

ref

part #

description

quantity

1-1

4710031E2017U
ref: 1-1

COVER ASSY,FRAME,R(GRAY)

€ 408.50

1-2

4710031E2033J
ref: 1-2

COVER ASSY,FRAME,R(BLACK)

€ 437.50

2

4711731E00
ref: 2

SHIELD,FRAME COVER HEAT

€ 32.50

3-1

6813031E00F3H
ref: 3-1

TAPE SET,FRAME COVER S

€ 94.00

3-2

6813031E00F3J
ref: 3-2

TAPE SET,FRAME COVER S

€ 102.00

4-1

6813031E20F3D
ref: 4-1

TAPE SET,FRAME COVER,R

€ 41.50

4-2

6813031E20F3E
ref: 4-2

TAPE SET,FRAME COVER,R

€ 43.50

5-1

6813131E00F3F
ref: 5-1

EMBLEM,FRAME COVER

€ 45.00

5-2

6813131E00F3G
ref: 5-2

EMBLEM,FRAME COVER

€ 44.50

6-1

4710031E30019
ref: 6-1

COVER ASSY,FRAME,R(BLACK)

€ 343.00

6-2

4710031E303DX
ref: 6-2

COVER ASSY,FRAME,R(BLACK)

€ 343.00

7

4711731E00
ref: 7

SHIELD,FRAME COVER HEAT

€ 32.50

8

6813031E00F3H
ref: 8

TAPE SET,FRAME COVER S

€ 94.00

9-1

6813031E30G4Y
ref: 9-1

TAPE SET,FRAME COVER,RIGHT

€ 0.00

9-2

6813031E30G4Z
ref: 9-2

TAPE SET,FRAME COVER,R

€ 47.00

10-1

6813131E00G5A
ref: 10-1

EMBLEM,FRAME COVER

€ 0.00

10-2

6813131E00G5B
ref: 10-2

EMBLEM,FRAME COVER

€ 37.00

11-1

4720031E2017U
ref: 11-1

COVER,FRAME,LEFT (GRAY)

€ 308.50

11-2

4720031E2033J
ref: 11-2

COVER ASSY,FRAME,L(BLACK)

€ 437.50

12

4721731E00
ref: 12

SHIELD,FRAME COVER HEAT,L

€ 29.00

13-1

6814031E00F3H
ref: 13-1

TAPE SET,FRAME COVER STRIPE,L

€ 93.50

13-2

6814031E00F3J
ref: 13-2

TAPE SET,FRAME COVER S

€ 102.00

14-1

6814031E20F3D
ref: 14-1

TAPE SET,FRAME COVER,L

€ 43.50

14-2

6814031E20F3E
ref: 14-2

TAPE SET,FRAME COVER,L

€ 43.50

15-1

6813131E00F3F
ref: 15-1

EMBLEM,FRAME COVER

€ 45.00

15-2

6813131E00F3G
ref: 15-2

EMBLEM,FRAME COVER

€ 44.50

16-1

4720031E30019
ref: 16-1

COVER ASSY,FRAME,L(BLACK)

€ 389.00

16-2

4720031E303DX
ref: 16-2

COVER ASSY,FRAME,L(BLACK)

€ 343.00

17

4721731E00
ref: 17

SHIELD,FRAME COVER HEAT,L

€ 29.00

18

6814031E00F3H
ref: 18

TAPE SET,FRAME COVER STRIPE,L

€ 93.50

19-1

6814031E30G4Y
ref: 19-1

TAPE SET,FRAME COVER,L

€ 0.00

19-2

6814031E30G4Z
ref: 19-2

TAPE SET,FRAME COVER,LEFT

€ 42.00

20-1

6813131E00G5A
ref: 20-1

EMBLEM,FRAME COVER

€ 0.00

20-2

6813131E00G5B
ref: 20-2

EMBLEM,FRAME COVER

€ 37.00

21

4751131E00
ref: 21

COVER,INNER,RIGHT

€ 14.50

22

4761131E00
ref: 22

COVER,INNER,L

€ 10.00

23

0354114123
ref: 23
03541-1412A

SCREW

€ 2.00

24

4719121E00
ref: 24

BRACKET,FRAME COVER,R

€ 4.50

25

4719221E00
ref: 25

BRACKET,FRAME COVER,L

€ 6.00

26

0932008018
ref: 26

CUSHION

€ 4.00

27

0911606131
ref: 27

BOLT(6X25)

€ 2.00

28

4716121E00
ref: 28

CUSHION,FRAME COVER FR

€ 7.50

29

0918006265
ref: 29

SPACER(6.5X9X11)

€ 4.50

30

0932008061
ref: 30

CUSHION

€ 4.00

31

0214205123
ref: 31
02142-0512A

SCREW 5X12

€ 1.50

32

0916105017
ref: 32

WASHER(5.2X14X1.5)

€ 3.00

33-1

4731131E0017U
ref: 33-1
47311-31E00

COVER,FRAME,CENTER

€ 47.50

33-2

4731131E0033J
ref: 33-2

COVER,FRAME CTR

€ 38.50

33-3

4731131E00019
ref: 33-3

COVER,FRAME CTR

€ 43.00

34

4719321E00
ref: 34

BRACKET,RR COMBINATION LAMP

€ 6.50

35

0214205123
ref: 35
02142-0512A

SCREW 5X12

€ 1.50

36

0914805021
ref: 36

NUT

€ 1.50

37

0354114123
ref: 37
03541-1412A

SCREW

€ 2.00

38

0324115163
ref: 38
03241-1516A

SCREW

€ 2.00
