STARTER CLUTCH

RF900R 1994 (R) USA (E03)

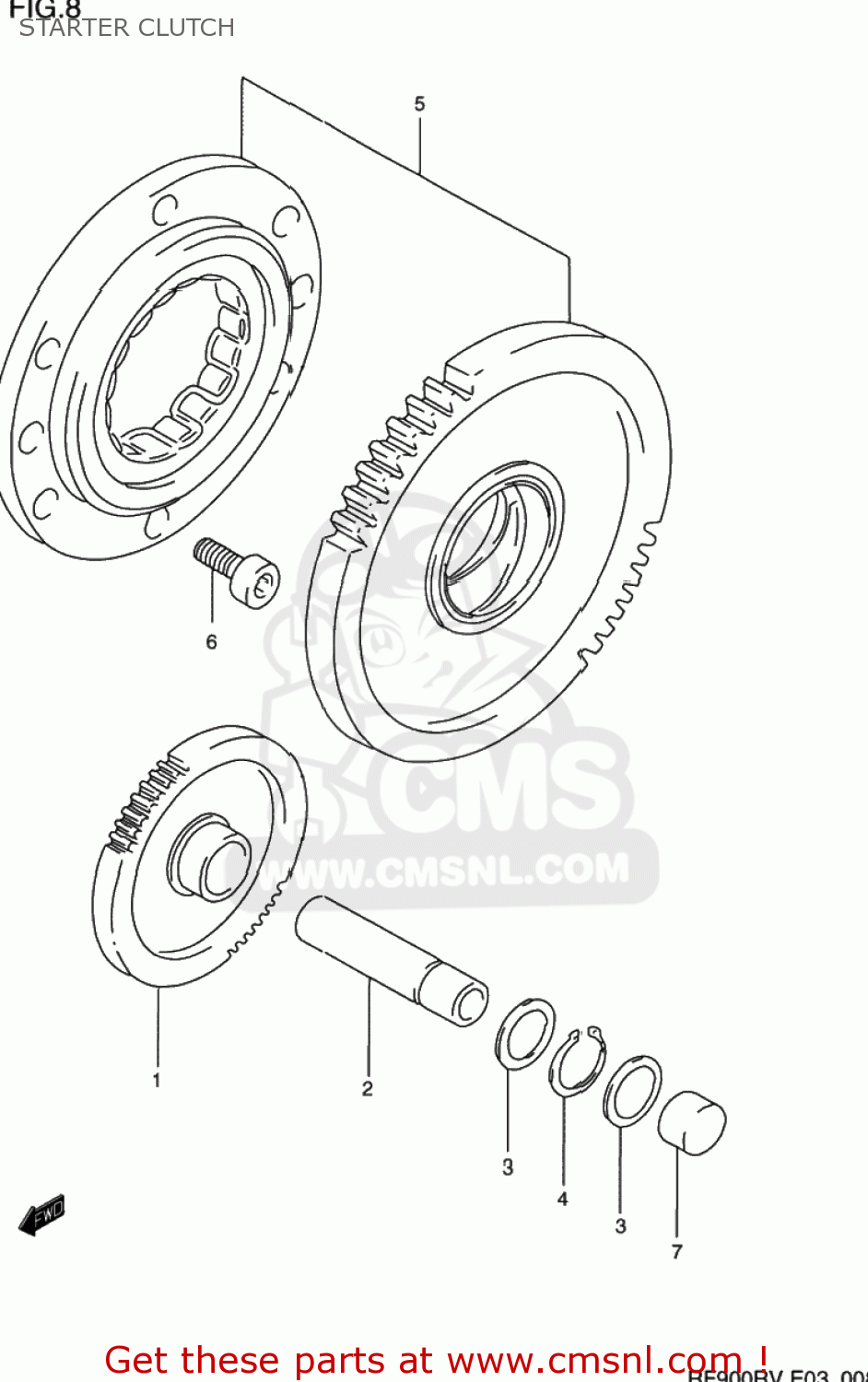

Starter clutch diagram RF900R 1994 (R) USA (E03)

STARTER CLUTCH RF900R 1994 (R) USA (E03)

STARTER CLUTCH RF900R 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261121E00
ref: 1

GEAR,STARTER IDLE (NT:1

€ 73.50

2

1261617E00
ref: 2

SHAFT,STARTER IDLE GEAR

€ 10.50

3-1

0822112185
ref: 3-1
09181-12130

WASHER

€ 2.50

3-2

0918112130
ref: 3-2

SHIM(12X18X0.5)

€ 2.50

4

0833131126
ref: 4
08331-3112A

CIRCLIP,12 MM

€ 2.00

5-1

1260021810
ref: 5-1
12600-21811

CLUTCH SET,STARTER

€ 251.00

5-2

1260021811
ref: 5-2

CLUTCH SET,STARTER

€ 251.00

6-1

0713006163
ref: 6-1
07130-0616B

BOLT,OIL FILLE

€ 3.00

6-2

0713006123
ref: 6-2
07130-0612A

BOLT,STRANGER

€ 2.50

7

0924112006
ref: 7

PLUG

€ 5.50
