CRANKCASE
RF900R 1994 (R) USA (E03)

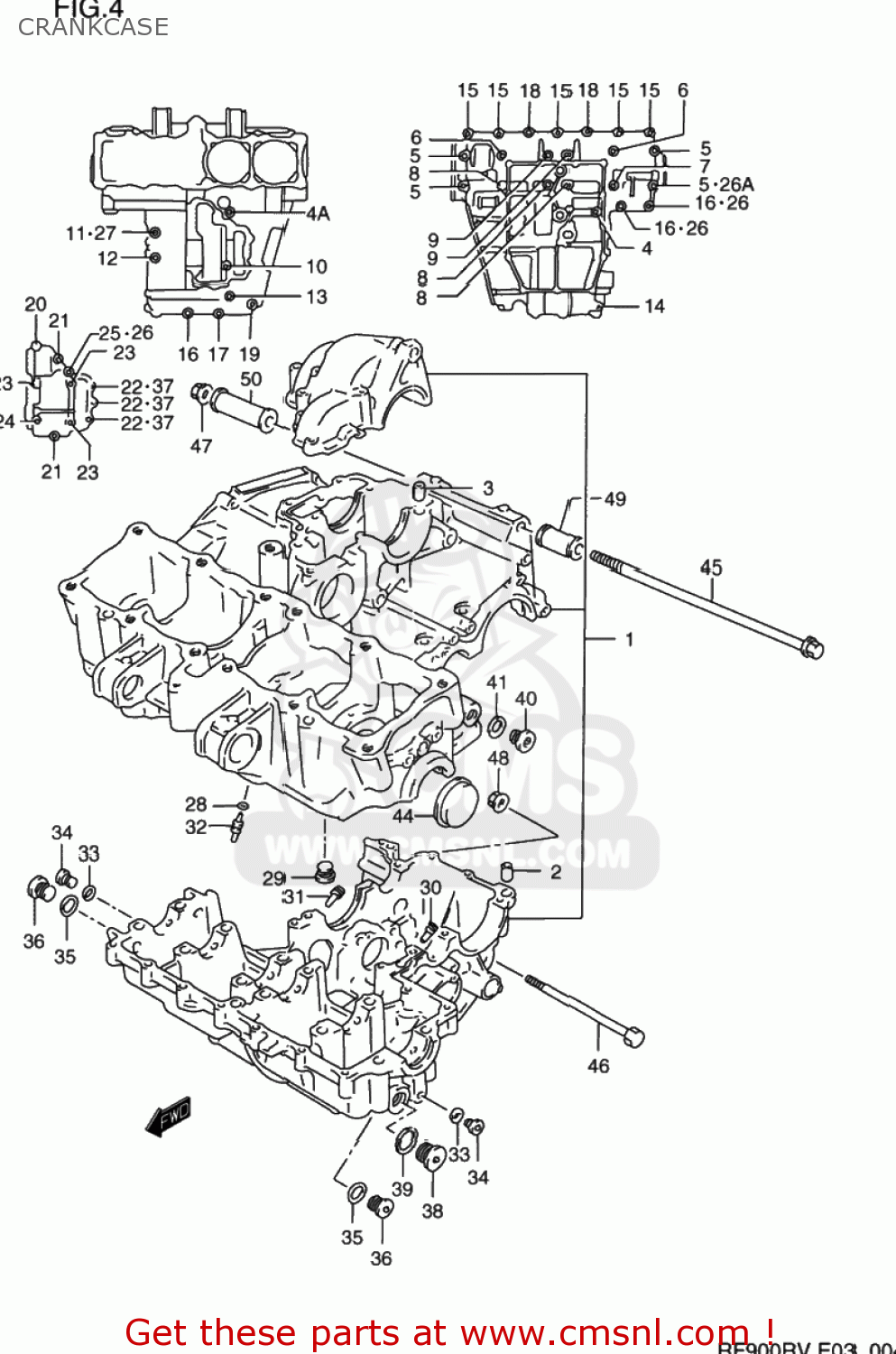

Crankcase diagram RF900R 1994 (R) USA (E03)
CRANKCASE RF900R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130246870
ref: 1-1
11302-46876
CRANKCASE SET
€ 2,080.50
1-2
1130246874
ref: 1-2
11302-46876
CRANKCASE SET
€ 2,080.50
1-3
1130246875
ref: 1-3
11302-46876
CRANKCASE SET
€ 2,080.50
1-4
1130246876
ref: 1-4
CRANKCASE SET
€ 2,080.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0910306163
ref: 4
BOLT(6X105)
€ 4.00
4A
0910306067
ref: 4A
BOLT(6X105)
€ 3.50
5
0910309007
ref: 5
BOLT 9X80
€ 5.50
6
0910309008
ref: 6
BOLT(9X95)
€ 6.00
7
0910309009
ref: 7
BOLT(9X105)
€ 8.00
8
0910309010
ref: 8
BOLT(9X115)
€ 6.00
9
0910609001
ref: 9
BOLT(9X60)
€ 6.00
10
0713006753
ref: 10
07130-0675B
BOLT
€ 3.00
11
0713008503
ref: 11
07130-0850A
BOLT
€ 3.50
12
0713008603
ref: 12
07130-0860B
BOLT
€ 4.50
13
0713008803
ref: 13
07130-0880B
BOLT
€ 3.00
14
0155008603
ref: 14
01550-0860A
BOLT
€ 3.50
15
0155006353
ref: 15
01550-0635A
BOLT
€ 2.50
16
0155006403
ref: 16
01550-0640A
BOLT
€ 2.00
17
0155006403
ref: 17
01550-0640A
BOLT
€ 2.00
18
0155006503
ref: 18
01550-0650A
BOLT
€ 2.00
19
0155006653
ref: 19
01550-0665A
BOLT
€ 2.50
20
0713006253
ref: 20
07130-0625B
BOLT,CL.COVER
€ 3.00
21
0713006353
ref: 21
07130-0635B
BOLT
€ 3.50
22
0713006403
ref: 22
07130-0640B
BOLT
€ 3.50
23
0713006503
ref: 23
07130-0650B
BOLT,CL.COVER
€ 3.00
24
0713006603
ref: 24
07130-0660B
BOLT
€ 3.00
25
0910306062
ref: 25
BOLT(6X145)
€ 3.50
26
0916806018
ref: 26
GASKET(6.2X13X1.2) (NAS)
€ 2.00
26A
0916810031
ref: 26A
GASKET(10.2X20X2).3 (NAS)
€ 2.00
27
0916808016
ref: 27
GASKET(8.2X14X1) (NAS)
€ 1.00
28
0928004004
ref: 28
O RING(D:1.2,ID:4)
€ 2.00
29
0924818002
ref: 29
09248-18005
PLUG,CRANKCASE,UPPER
€ 4.00
30
0949324010
ref: 30
JET
€ 12.00
31
0949328012
ref: 31
JET(140)
€ 8.00
32
0949380008
ref: 32
JET,OIL GALLERY
€ 8.50
33-1
0916810002
ref: 33-1
GASKET(10X14X3.6) (NAS)
€ 2.00
33-2
0916810007
ref: 33-2
GASKET(10.1X16X1) (NAS)
€ 2.00
34-1
0924810007
ref: 34-1
PLUG(10X6.8)
€ 4.50
34-2
1131517E00
ref: 34-2
PLUG,OIL GALLERY
€ 4.50
35
0916816002
ref: 35
GASKET(16X22X2) (NAS)
€ 2.00
36
0924816010
ref: 36
09248-16012
PLUG
€ 4.50
37
0916806024
ref: 37
GASKET(5.8X11X1.2) (NAS)
€ 2.00
38
0924822002
ref: 38
PLUG(22X11)
€ 9.00
39
0916822002
ref: 39
GASKET(22X27X2) (NAS)
€ 3.50
40
0924814010
ref: 40
PLUG
€ 5.00
41
0916814002
ref: 41
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
42
1222817E000D0
ref: 42
BEARING,CRANK THRUST(GREEN)
€ 8.00
42
1222817E000D0
ref: 42
BEARING,CRANK THRUST(GREEN)
€ 8.00
43-1
1222817E000A0
ref: 43-1
BEARING,CRANK THRUST(RED)
€ 7.50
43-1
1222817E000A0
ref: 43-1
BEARING,CRANK THRUST(RED)
€ 7.50
43-2
1222817E000B0
ref: 43-2
BEARING,CRANK THRUST(BLACK)
€ 7.50
43-3
1222817E000C0
ref: 43-3
BEARING,CRANK THRUST(BLUE)
€ 7.50
43-4
1222817E000D0
ref: 43-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
43-5
1222817E000E0
ref: 43-5
BEARING,CRANK THRUST(YELLOW)
€ 7.50
43-6
1222817E000F0
ref: 43-6
BEARING,CRANK THRUST(WHITE)
€ 7.50
44
0924137002
ref: 44
PLUG
€ 13.50
45
0910310274
ref: 45
BOLT 10X280
€ 12.50
46
0910312045
ref: 46
BOLT(12X140)
€ 7.50
47
0915910058
ref: 47
09159-10115
NUT
€ 4.00
48
0831931128
ref: 48
08319-3112A
NUT 12MM
€ 4.00
49
1161121E00
ref: 49
SPACER,ENG MTG RR UPR,L(L45)
€ 16.50
50
1161114210
ref: 50
SPACER,ENGINE MOUNT
€ 33.50
