STARTING MOTOR
RF900R 1994 (R) USA (E03)

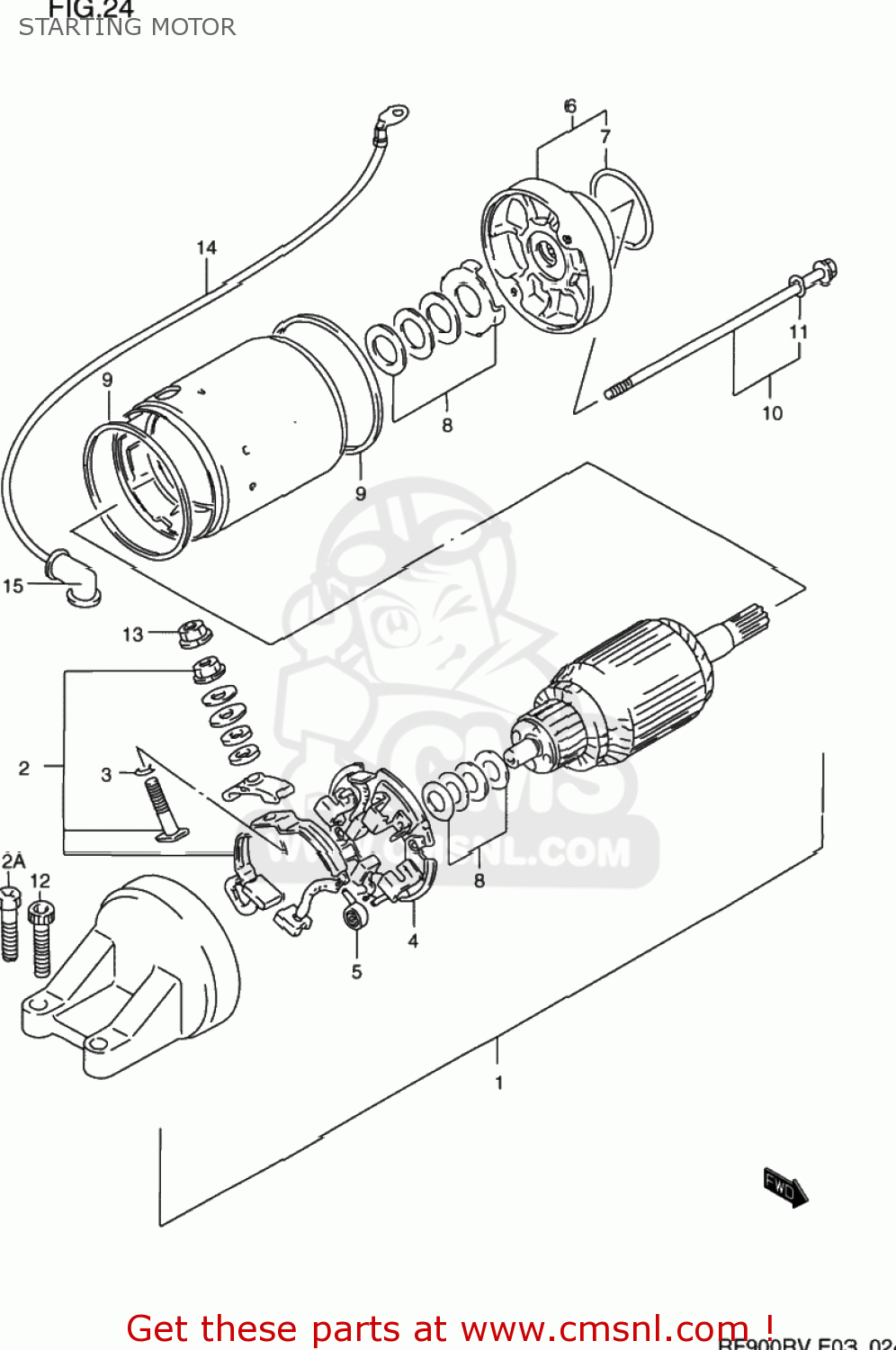

Starting motor diagram RF900R 1994 (R) USA (E03)
STARTING MOTOR RF900R 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110046E00
ref: 1
MOTOR ASSEMBLY,STARTING
€ 730.00
2
3113019B10
ref: 2
TERMINAL SET,BRUSH,PLUS
€ 27.50
3
3114349040
ref: 3
O RING
€ 3.00
4
3113246E00
ref: 4
BRUSH,HOLDER SET
€ 47.00
5
3113531300
ref: 5
SPRING,BRUSH
€ 4.00
6
3115046E00
ref: 6
BRACKET ASSEMBLY,FRONT
€ 85.00
7-1
3115646E00
ref: 7-1
31156-48B00
O-RING
€ 8.50
7-2
3115648B00
ref: 7-2
O RING
€ 8.50
8
3117019B10
ref: 8
SHIM SET,STARTING MOTOR
€ 8.00
9
3126431300
ref: 9
31264-32E00
O RING
€ 7.50
10
3128019B10
ref: 10
BOLT SET,STARTING MOTOR
€ 8.50
11
3114349040
ref: 11
O RING
€ 3.00
12
0712006253
ref: 12
07120-0625A
BOLT,OIL PAN
€ 2.50
12A
0912806024
ref: 12A
09103-06212
SCREW (6X25)
€ 2.50
13
0836135068
ref: 13
08361-3506A
NUT
€ 2.00
14
3381021E00
ref: 14
WIRE,STARTER MOTOR LEAD
€ 25.50
15
3186148B10
ref: 15
CAP,STARTER MOTOR LEAD
€ 4.50
