STAND

RF900R 1994 (R) USA (E03)

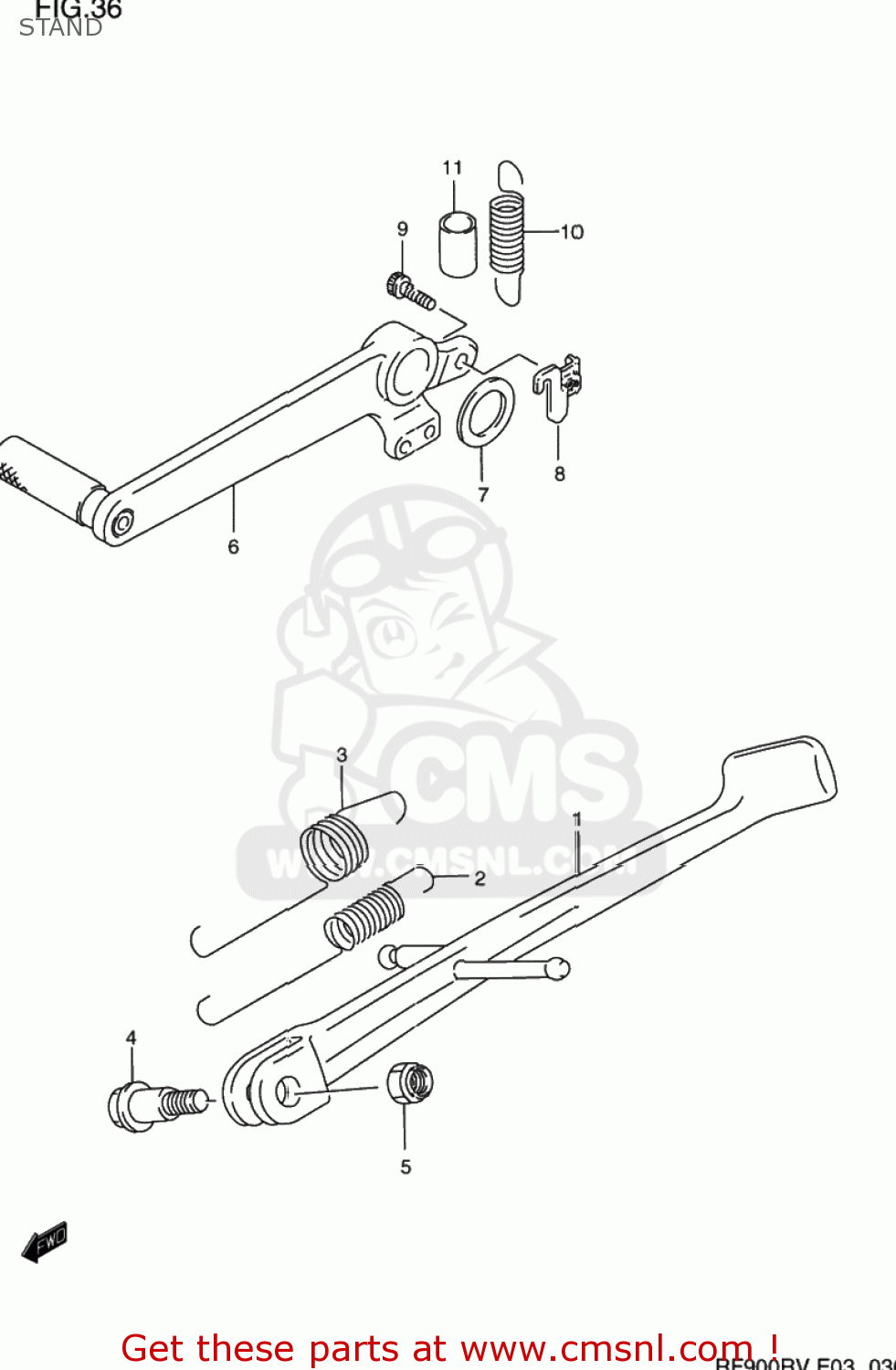

Stand diagram RF900R 1994 (R) USA (E03)

STAND RF900R 1994 (R) USA (E03)

STAND RF900R 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231031E00
ref: 1

STAND,PROP

€ 127.50

2

0944315046
ref: 2

SPRING

€ 7.50

3

0944322017
ref: 3

SPRING

€ 7.00

4

0911110027
ref: 4

BOLT(10X34)

€ 3.50

5

0915910027
ref: 5

NUT

€ 3.00

6-1

4311010D00
ref: 6-1

PEDAL,BRAKE

€ 101.50

6-2

4311131E00
ref: 6-2
43111-31E01

PEDAL,BRAKE

€ 100.50

6-3

4311131E01
ref: 6-3

PEDAL,BRAKE

€ 100.50

7

0916018022
ref: 7

WASHER(18X24X1)

€ 3.00

8

4356032C00
ref: 8

BRACKET,STOP LAMP SWITCH SPR

€ 3.00

9-1

0713005167
ref: 9-1

BOLT

€ 2.50

9-2

0211205163
ref: 9-2
02112-0516A

SCREW

€ 2.00

10

0944313029
ref: 10

SPRING

€ 5.00

11

4326117C00
ref: 11

TUBE,BRAKE SPRING GUIDE

€ 5.50
