OIL COOLER - OIL FILTER

RF900R 1994 (R) USA (E03)

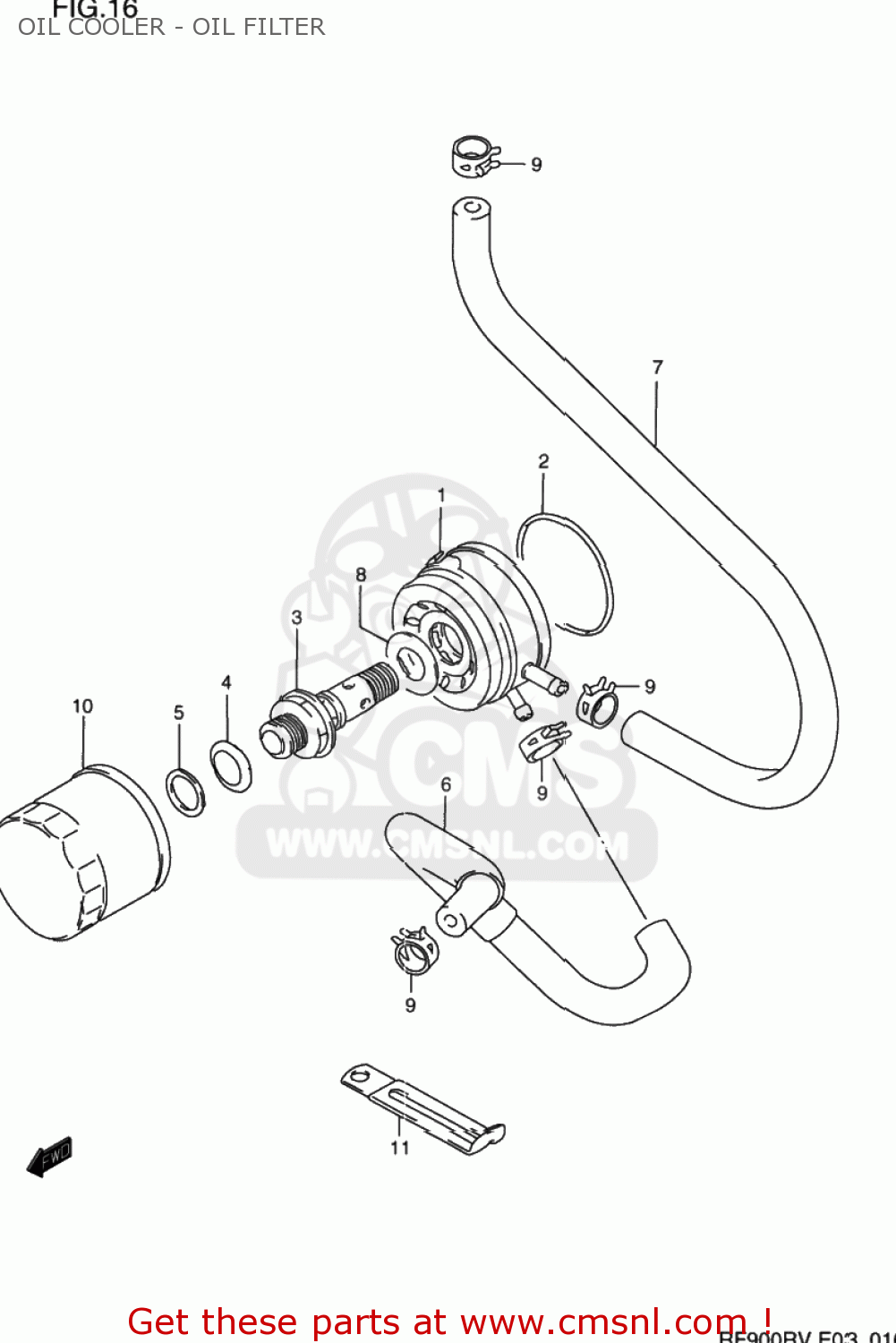

Oil cooler - oil filter diagram RF900R 1994 (R) USA (E03)

OIL COOLER - OIL FILTER RF900R 1994 (R) USA (E03)

OIL COOLER - OIL FILTER RF900R 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660017E00
ref: 1

COOLER ASSY,OIL

€ 525.00

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659133C00
ref: 3

BOLT,OIL COOLER UNION

€ 46.00

4

1651331E00
ref: 4

WASHER,OIL FILTER WAVE

€ 4.50

5-1

0821120261
ref: 5-1
09181-20139

WASHER

€ 2.50

5-2

0918120139
ref: 5-2

SHIM(20X26X1)

€ 2.50

6

1646131E00
ref: 6

HOSE,OIL COOLER WATER IN

€ 22.50

7

1647117E02
ref: 7

HOSE,OIL COOLER OUTLET

€ 31.50

8

0822122355
ref: 8

SHIM

€ 2.00

9

0940113410
ref: 9
09401-12409

CLIP

€ 3.00

10

1651006B01
ref: 10
16510-07J00

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

11-1

0940406402
ref: 11-1
09404-06432

CLAMP

€ 2.50

11-2

0940406429
ref: 11-2

CLAMP(L:45)

€ 2.50
