CDI UNIT-IGNITION COIL

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

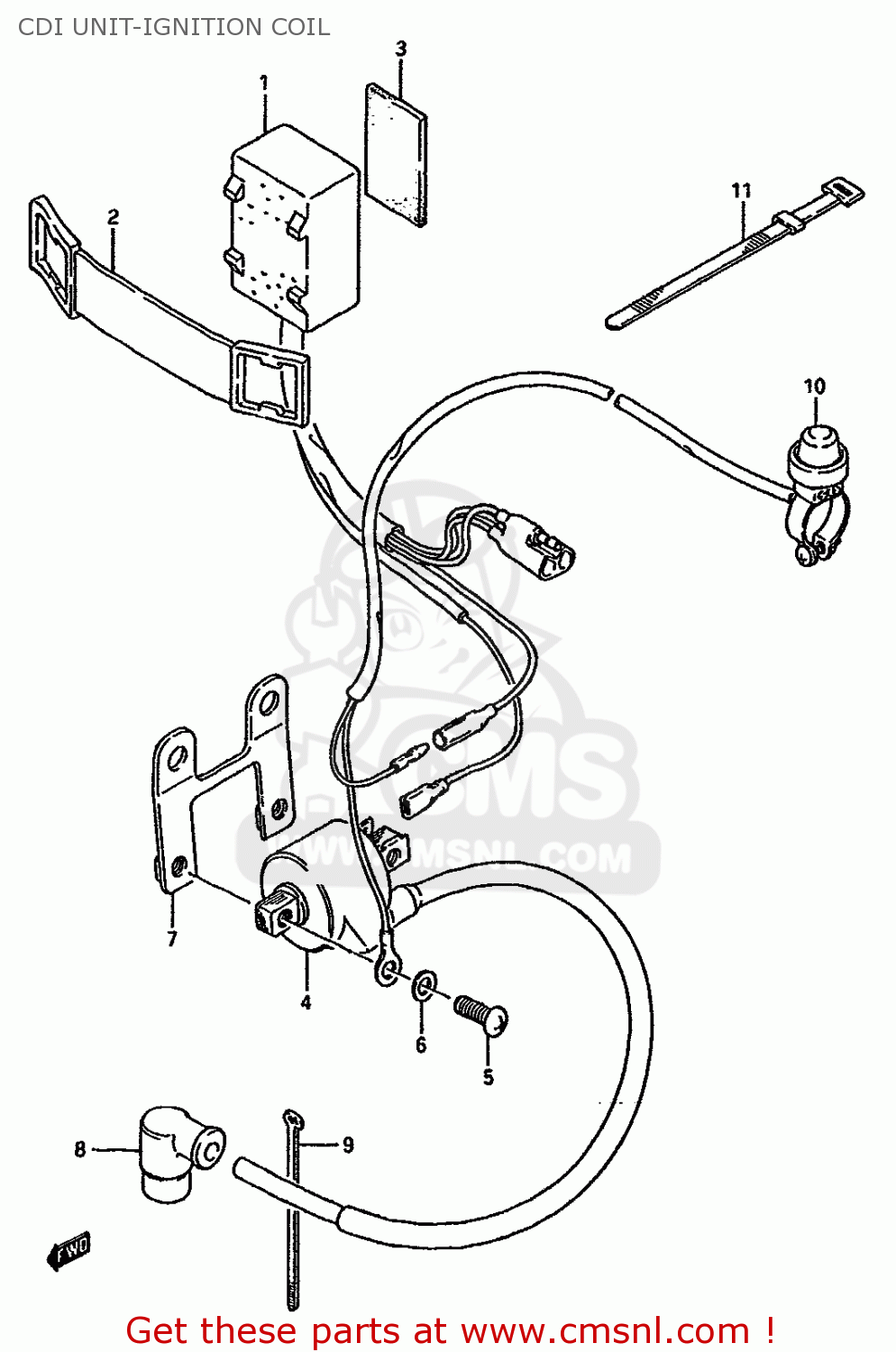

Cdi unit-ignition coil diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

CDI UNIT-IGNITION COIL RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

CDI UNIT-IGNITION COIL RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1-1

3290001B20
ref: 1-1
MODEL G

CDI UNIT

€ 229.50

1-2

3290001B30
ref: 1-2
MODEL H/J

CDI UNIT

€ 546.00

2

3294201B00
ref: 2

BAND

€ 9.00

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3341001B20
ref: 4

COIL ASSEMBLY,IGNITION

€ 138.00

5

0211206206
ref: 5

SCREW

€ 2.00

6

0832121066
ref: 6

WASHER,LOCK

€ 2.00

7

3341601B10
ref: 7

BRACKET,IGNITION COIL

€ 10.00

8

3351041111
ref: 8

CAP,SPARK PLUG

€ 23.00

9

0940709402
ref: 9

CLAMP

€ 3.00

10

3782000B00
ref: 10

SWITCH ASSEMBLY

€ 24.50

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
