CRANKCASE COVER-WATER PUMP

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

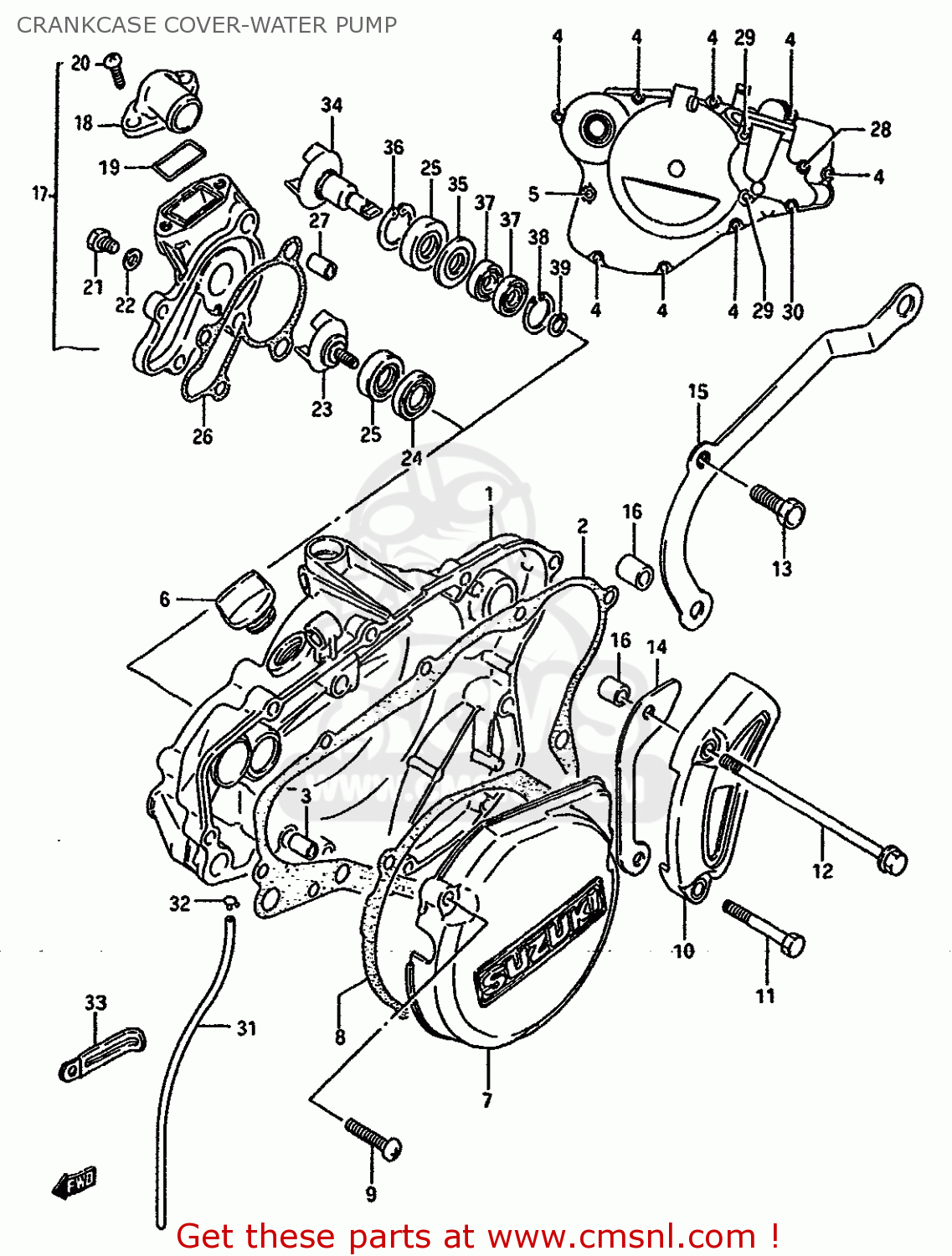

Crankcase cover-water pump diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

CRANKCASE COVER-WATER PUMP RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
CRANKCASE COVER-WATER PUMP RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
CRANKCASE COVER-WATER PUMP RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1134001811
ref: 1-1
MODEL G/H
COVER,CLUTCH
€ 216.50
1-2
1134101B11
ref: 1-2
MODEL J
COVER,CLUTCH
1134101B11
€ 137.50
2
1148201B01
ref: 2
GASKET,CLUTCH COVER (MCA)
1148201B01
€ 16.00
3
0421109129
ref: 3
PIN
0421109129
€ 2.00
4
0211206258
ref: 4
SCREW
€ 2.00
5
0211206357
ref: 5
SCREW
0211206357
€ 2.50
6
0920020810
ref: 6
PLUG SET
0920020810
€ 8.00
7-1
1135101B00
ref: 7-1
MODEL G
COVER,MAGNETO
1135101B00
€ 72.50
7-2
1135101B11
ref: 7-2
MODEL H/J
COVER,MAGNETO
€ 132.50
8-1
1148301B00
ref: 8-1
MODEL G
GASKET,MAGNETO COVER (MCA)
1148301B00
€ 5.50
8-2
1148301B10
ref: 8-2
MODEL H/J
GASKET,MAGNETO COVER (MCA)
1148301B10
€ 4.00
9
0211206258
ref: 9
SCREW
€ 2.00
10
1136001B00
ref: 10
COVER,SPROCKET
1136001B00
€ 23.50
11
0110706408
ref: 11
BOLT 6X40
0110706408
€ 2.00
12
0910306067
ref: 12
MODEL G
BOLT(6X105)
0910306067
€ 3.50
13
0110706207
ref: 13
MODEL H/J
BOLT
0110706207
€ 2.00
14
2764114501
ref: 14
MODEL G
PLATE,CHAIN GUIDE
2764114501
€ 5.50
15-1
2764001B10
ref: 15-1
MODEL H/MODEL J OPT
PLATE,FRONT CHAIN GUIDE
2764001B10
€ 8.00
15-2
2764001B40
ref: 15-2
MODEL J FOR NT:13
PLATE COMP,FRONT CHAIN
2764001B40
€ 8.00
16-1
0918007004
ref: 16-1
MODEL G
SPACER(6.5X10.5X12)
0918007004
€ 2.50
16-2
0918007004
ref: 16-2
MODEL H/J
SPACER(6.5X10.5X12)
0918007004
€ 2.50
17
1741001B01
ref: 17
CASE,WATER PUMP
€ 81.50
18
1741201B00
ref: 18
CONNECTOR
1741201B00
€ 23.50
19
1741414300
ref: 19
O RING,WATER PUMP CONNECTOR
1741414300
€ 3.00
20
0211206167
ref: 20
SCREW
0211206167
€ 2.50
21
1741500B00
ref: 21
BOLT,BLEEDER
1741500B00
€ 3.00
22
1741300B00
ref: 22
GASKET (NAS)
1741300B00
€ 1.50
23
1749101B03
ref: 23
MODEL G/H
IMPELLER,WATER PUMP
€ 18.50
24
0928212007
ref: 24
MODEL G/H
SEAL,OIL(12X24X7)
0928212007
€ 7.00
25
0928912004
ref: 25
SEAL,OIL(12X24X6.4)
0928912004
€ 9.00
26
1743101B01
ref: 26
GASKET,WATER PUMP CASE
€ 6.00
27
0421109129
ref: 27
PIN
0421109129
€ 2.00
28
0211206208
ref: 28
SCREW
€ 2.00
29
0211206308
ref: 29
SCREW 6X30
€ 2.50
30-1
0211206758
ref: 30-1
MODEL G/H
CROSS SCREW (6 X 75)
0211206758
€ 3.00
30-2
0211206858
ref: 30-2
MODEL J
SCREW 6X85
0211206858
€ 2.50
31
0934304104
ref: 31
MODEL G/H L:600 250
HOSE
0934304104
€ 3.00
32
0940108401
ref: 32
MODEL G/H
CLIP
0940108401
€ 1.50
33
0940406422
ref: 33
MODEL G/H
CLAMP
€ 2.50
34
1749101B10
ref: 34
MODEL J
IMPELLER,WATER PUMP
€ 31.50
35
0928212006
ref: 35
MODEL J
SEAL,OIL(12X24X3.6)
0928212006
€ 7.00
36
0833141246
ref: 36
MODEL J
CIRCLIP
0833141246
€ 2.50
37
0811306980
ref: 37
MODEL J
BEARING
0811306980
€ 14.00
38
0938119003
ref: 38
MODEL J
CIRCLIP
0938119003
€ 2.00
39
0833131088
ref: 39
MODEL J
CIRCLIP
€ 2.00
