REAR WHEEL (MODEL G)

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

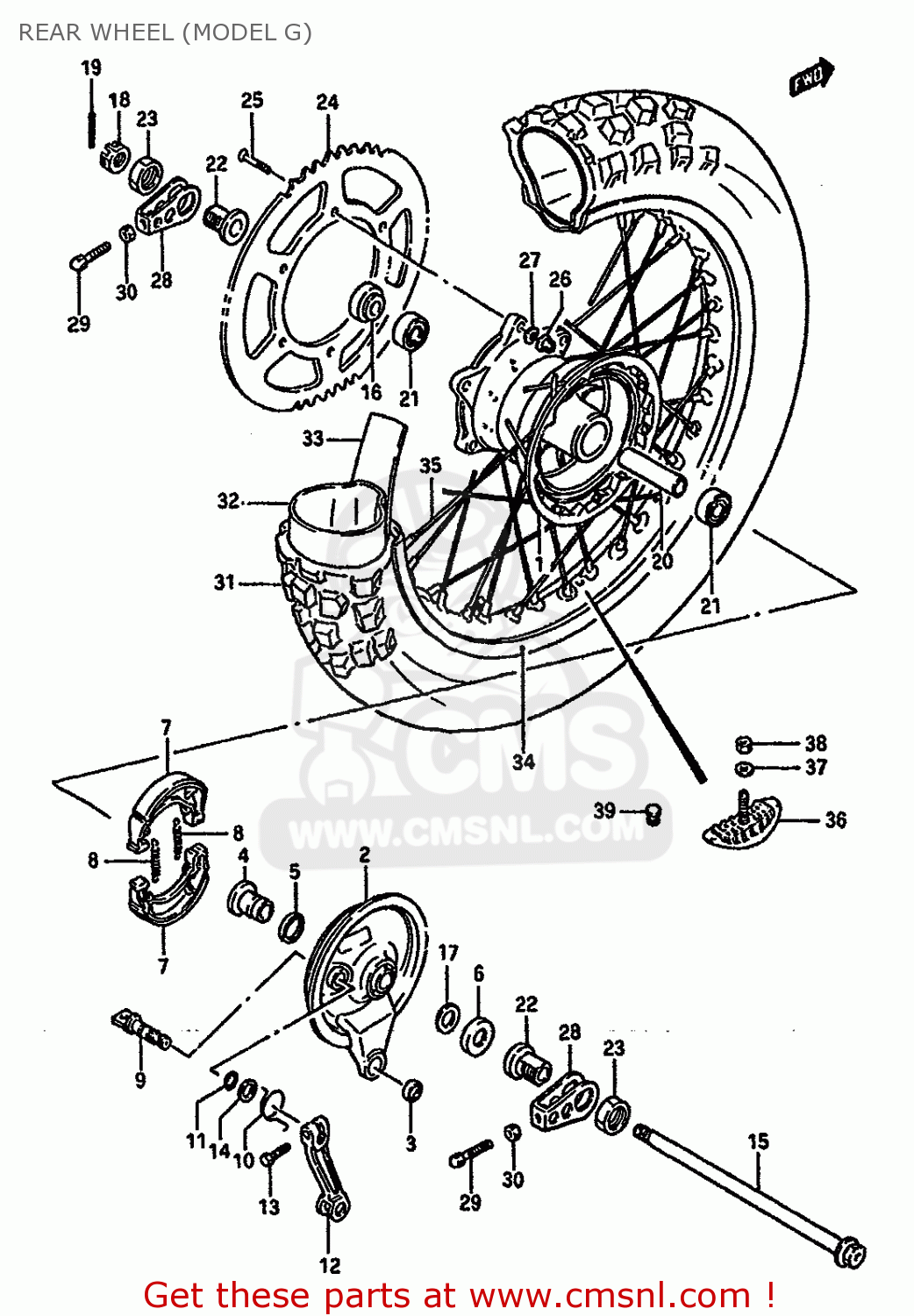

Rear wheel (model g) diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

REAR WHEEL (MODEL G) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
REAR WHEEL (MODEL G) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
REAR WHEEL (MODEL G) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
6411001B00
ref: 1
HUB,REAR WHEEL
€ 310.50
2
6420014881
ref: 2
PANEL SET,REAR
€ 155.50
3
6435214500
ref: 3
BEARING
6435214500
€ 39.50
4
6421301B00
ref: 4
SPACER,RR BR AHR PNL
6421301B00
€ 16.50
5
0928320031
ref: 5
SEAL,OIL(20X27X5)
0928320031
€ 5.00
6
6484514100
ref: 6
CVR,RR BRAKE AHR PNL DUST SEAL
6484514100
€ 10.00
7
6441014100
ref: 7
SHOE,BRAKE (MCA)
6441014100
€ 41.50
8
0944307001
ref: 8
SPRING(L:34)
0944307001
€ 2.50
9
5444114101
ref: 9
CAM,FR BRAKE
5444114101
€ 16.00
10
0944830007
ref: 10
SPRING
0944830007
€ 19.00
11
0928012001
ref: 11
O RING(D:2.5,ID:11.4)
0928012001
€ 2.50
12
6445114500
ref: 12
LEVER,REAR BRAKE CAM
6445114500
€ 247.00
13
0110706257
ref: 13
BOLT
€ 2.00
14
0916012011
ref: 14
WASHER(12.5X20X1)
0916012011
€ 1.50
15
6471101B00
ref: 15
AXLE,REAR
€ 32.50
16
6475014500
ref: 16
SPACER,RR AXLE,L
6475014500
€ 15.00
17
0821115281
ref: 17
WASHER,THRUST
€ 2.50
18
0914114004
ref: 18
NUT
0914114004
€ 5.00
19
0411130308
ref: 19
COTTER PIN
0411130308
€ 1.50
20
6473001B00
ref: 20
SPACER,REAR HUB BEARING
6473001B00
€ 30.00
21
0926215021
ref: 21
BEARING(15X35X11)
0926215021
€ 14.00
22
6478114500
ref: 22
SPACER,CHAIN ADJUSTER
6478114500
€ 14.00
23
0914022006
ref: 23
NUT
0914022006
€ 6.00
24-1
6451140261
ref: 24-1
SPROCKET,RR(NT:51 AL)
6451140261
€ 87.50
24-2
6451140271
ref: 24-2
OPT
SPROCKET,REAR
€ 99.00
24-3
6451140266
ref: 24-3
OPT
SPROCKET,REAR (NT:52)(AL)
€ 118.50
25
0912008004
ref: 25
SCREW(8X33.5)
0912008004
€ 3.00
26
0831931087
ref: 26
NUT
0831931087
€ 2.50
27
0916408011
ref: 27
WASHER
0916408011
€ 3.50
28
6141040200
ref: 28
ADJUSTER,CHAIN
6141040200
€ 19.00
29
0910408027
ref: 29
BOLT(8X43)
0910408027
€ 9.00
30
0831012088
ref: 30
NUT
0831012088
€ 2.00
31
6510001B00
ref: 31
DUNLOP,TO 65100-01B1
TIRE
€ 106.50
32
6520014540
ref: 32
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
33
6526114540
ref: 33
PROTECTOR
€ 5.50
34
6531101B00
ref: 34
RIM,REAR WHEEL
€ 248.00
35
6532001B00
ref: 35
SPOKE SET,RR WHEEL
6532001B00
€ 78.50
36
6527046910
ref: 36
STOPPER,BEAD
€ 30.50
37
0832211088
ref: 37
WASHER
0832211088
€ 2.00
38
0831022088
ref: 38
NUT 8MM
0831022088
€ 2.00
39
0925008013
ref: 39
CAP(OD:12)
0925008013
€ 2.00
