STEERING STEM (MODEL J)

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

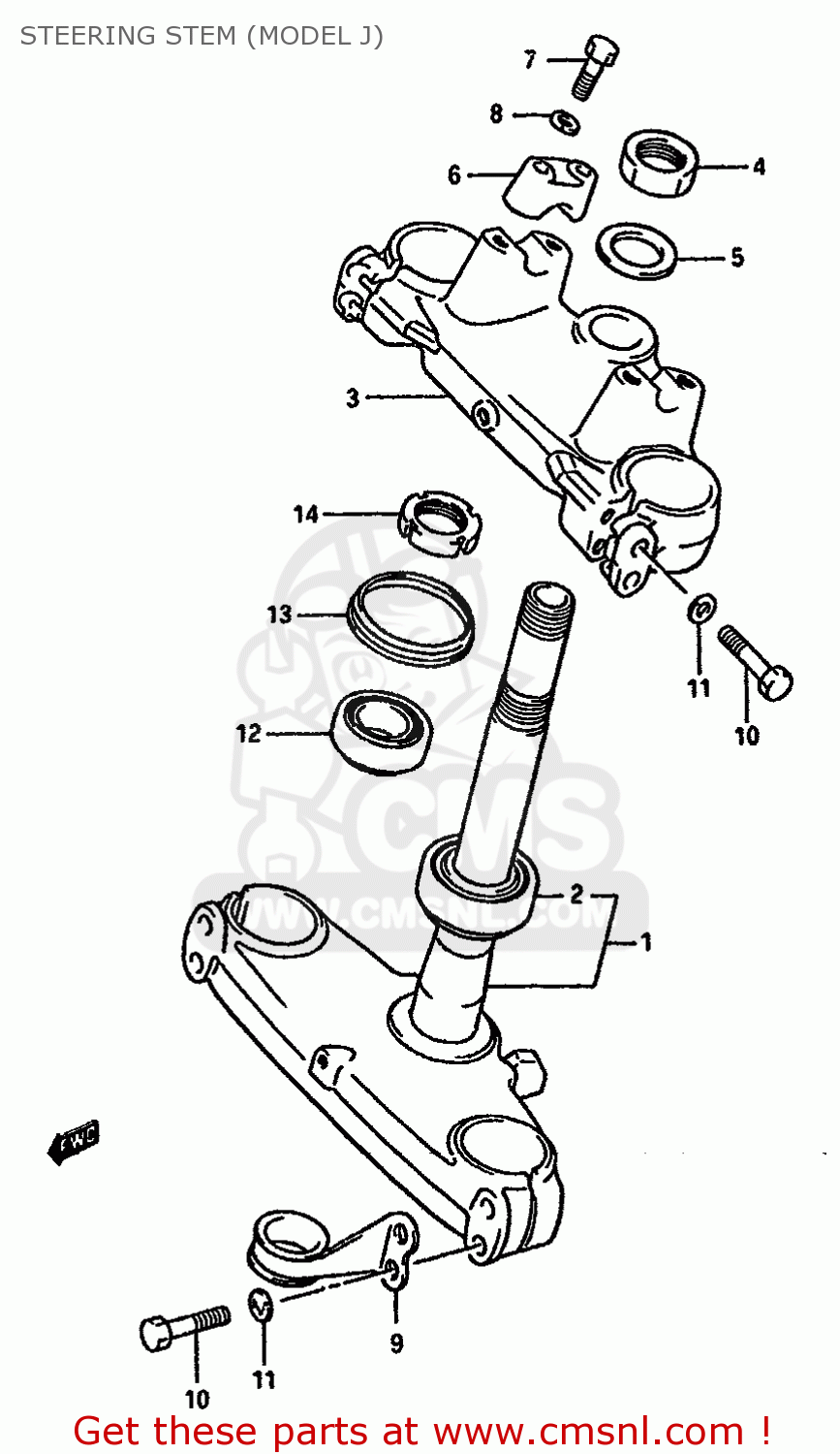

Steering stem (model j) diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

STEERING STEM (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
STEERING STEM (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
STEERING STEM (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
5141001B40
ref: 1
STEM,STEERING
5141001B40
€ 450.00
2
0926530005
ref: 2
BEARING
0926530005
€ 49.50
3
5131101B40
ref: 3
HEAD,STEERING STEM
€ 190.00
4
5135324A00
ref: 4
NUT,STEERING STEM
5135324A00
€ 13.50
5
5135601B20
ref: 5
WASHER
€ 3.00
6
5621127100
ref: 6
HOLDER,HANDLEBAR
5621127100
€ 12.50
7
0110708358
ref: 7
BOLT
0110708358
€ 3.50
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
5862100B00
ref: 9
CLIP
5862100B00
€ 13.50
10
0110708408
ref: 10
BOLT 8X40
0110708408
€ 3.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
0926525008
ref: 12
TAPER,ROLLER BEARING
0926525008
€ 48.50
13
5164340200
ref: 13
SEAL,STEERING UPR DUST
5164340200
€ 7.50
14
5163140200
ref: 14
NUT,STEERING STEM
5163140200
€ 12.00
14
0110710458
ref: 14
BOLT
€ 2.00
15
0832121108
ref: 15
LOCK WASHER
0832121108
€ 2.00
16-1
5161140201
ref: 16-1
MODEL G
RACE,STEERING INNER (SUJ)
5161140201
€ 8.50
16-2
5161101B10
ref: 16-2
MODEL H
RACE, STEERING INNER UPPER
5161101B10
€ 14.00
17
5162140200
ref: 17
RACE,STEERING,OUTER,UPPER
5162140200
€ 17.00
18
0611108003
ref: 18
BALL
0611108003
€ 1.50
19-1
5164340200
ref: 19-1
MODEL G
SEAL,STEERING UPR DUST
5164340200
€ 7.50
19-2
5164301B10
ref: 19-2
MODEL H
SEAL,STEERING UPR DUST
5164301B10
€ 6.00
20
5163140200
ref: 20
NUT,STEERING STEM
5163140200
€ 12.00
