FRONT WHEEL

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

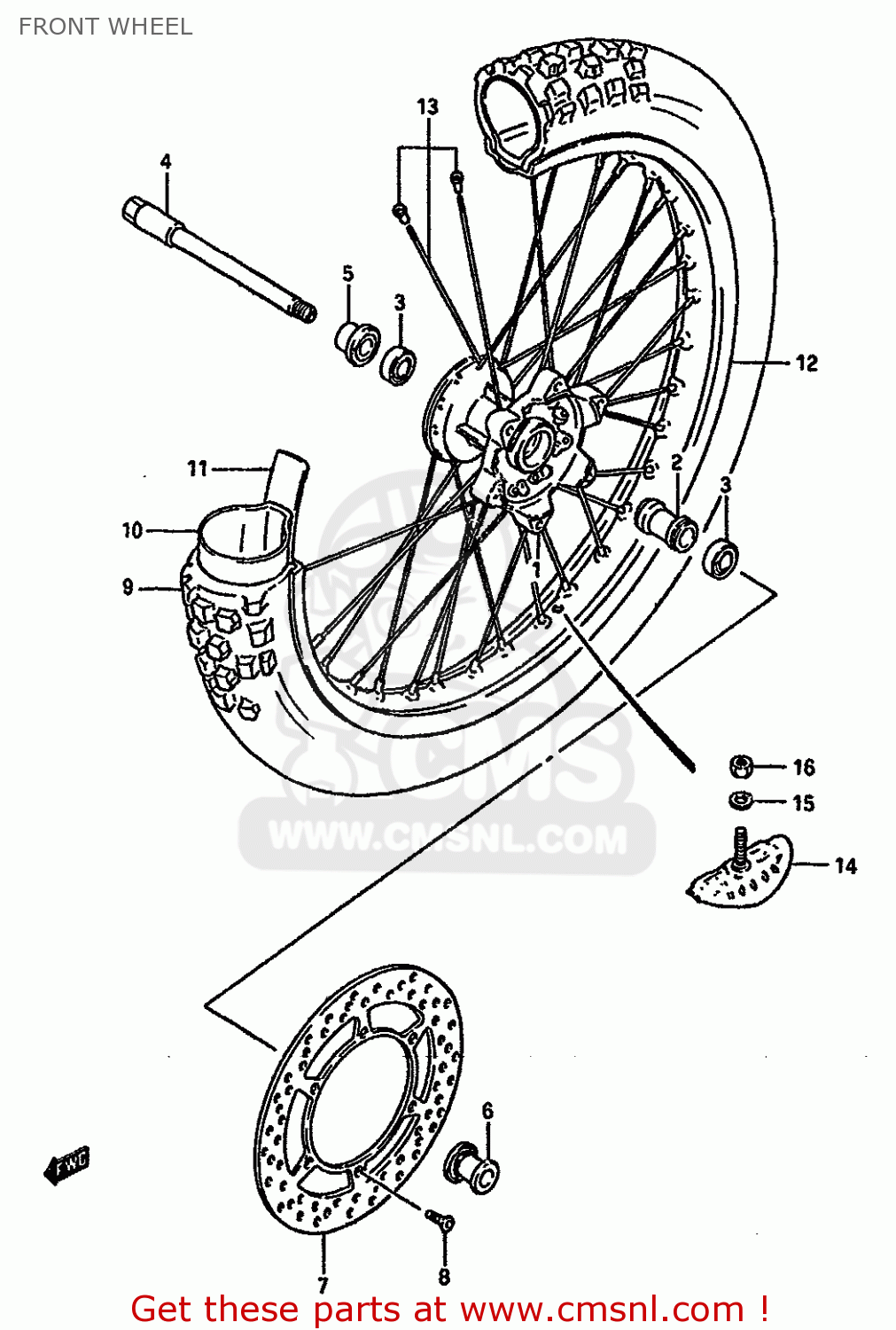

Front wheel diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

FRONT WHEEL RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
FRONT WHEEL RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
FRONT WHEEL RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
5411114501
ref: 1
HUB,FRONT
€ 165.50
2-1
5473014100
ref: 2-1
MODEL G
SPACER,FRONT HUB BEARING
5473014100
€ 23.00
2-2
5473001B00
ref: 2-2
MODEL H/J
SPACER,FR HUB BEARING
5473001B00
€ 34.00
3-1
0812362027
ref: 3-1
MODEL G
BEARING
0812362027
€ 14.50
3-2
0812360037
ref: 3-2
MODEL H/J
BEARING
0812360037
€ 16.50
4-1
5471114510
ref: 4-1
MODEL G
AXLE,FRONT
5471114510
€ 46.50
4-2
5471101B00
ref: 4-2
MODEL H/J
AXLE,FRONT
€ 58.00
5-1
5474014501
ref: 5-1
MODEL G
SPACER,FRONT AXLE,RIGHT
€ 8.00
5-2
5474001B00
ref: 5-2
MODEL H/J
SPACER,FRONT AXLE,RIGHT
5474001B00
€ 12.50
6-1
5475014501
ref: 6-1
MODEL G
SPACER,FRONT AXLE,LEFT
5475014501
€ 12.00
6-2
5475001B00
ref: 6-2
MODEL H/J
SPACER,FRONT AXLE,LEFT
5475001B00
€ 8.50
7-1
5922114500
ref: 7-1
MODEL G
DISC,BRAKE
€ 204.00
7-2
5922114510
ref: 7-2
MODEL H/J
DISC,FRONT BRAKE
€ 204.00
8
0212206167
ref: 8
SCREW
0212206167
€ 2.00
9-1
5510001B00
ref: 9-1
MODEL G,DUNLOP
TIRE,FRONT
€ 164.00
9-2
5510001B10
ref: 9-2
MODEL H/J,DUNLOP
TIRE,FRONT
€ 164.00
9-3
5510001B20
ref: 9-3
MODEL J E2
TIRE,FRONT (80/100-21)
€ 164.00
10
5520014540
ref: 10
TUBE,INNER
€ 32.50
11
5526114540
ref: 11
PROTECTOR,WHEEL INNER
5526114540
€ 5.00
12
5531101B00
ref: 12
RIM,FRONT WHEEL
€ 322.50
13
5532001B00
ref: 13
SPOKE SET,FRONT
€ 97.00
14
6527014300
ref: 14
STOPPER,BEAD
6527014300
€ 26.00
15
0832211088
ref: 15
WASHER
0832211088
€ 2.00
16
0831022088
ref: 16
NUT 8MM
0831022088
€ 2.00
