FRONT FORK (MODEL J)

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

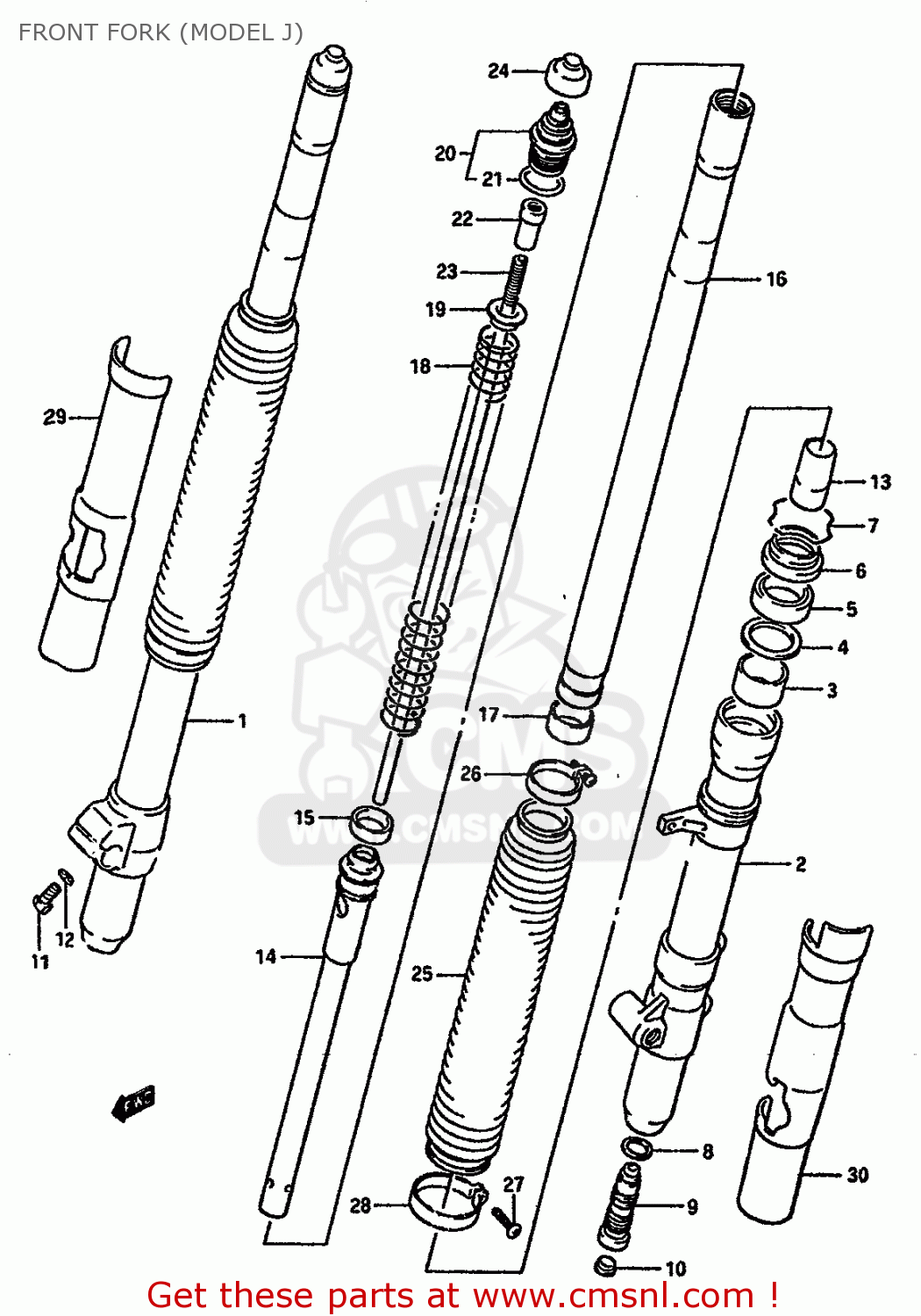

Front fork (model j) diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

FRONT FORK (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
FRONT FORK (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
FRONT FORK (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
5110301B40
ref: 0
DAMPER ASSEMBLY
€ 656.00
0
5110401B50
ref: 0
DAMPER ASSEMBLY,LEFT
€ 656.00
1
5113001B40
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114001B40
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116714200
ref: 3
METAL,SLIDE
5116714200
€ 13.50
4
5115814200
ref: 4
WASHER
5115814200
€ 4.00
5
5115301B40
ref: 5
OIL SEAL,FRONT FORK
5115301B40
€ 20.00
6
5117301B40
ref: 6
DUST SEAL,FRONT FORK
5117301B40
€ 7.00
7
5115614200
ref: 7
RING,STOPPER
5115614200
€ 4.50
8
5114801B40
ref: 8
GASKET (NAS)
5114801B40
€ 4.00
9
5117001B40
ref: 9
VALVE
€ 136.00
10
5118914500
ref: 10
CAP,FRONT FORK DF
5118914500
€ 5.00
11
0110708307
ref: 11
BOLT
€ 2.50
12
0832121088
ref: 12
LOCK WASHER
0832121088
€ 2.00
13
5119501B40
ref: 13
PIECE,OIL LOCK
€ 0.00
14
5114601B40
ref: 14
CYLINDER,FRONT FORK
€ 0.00
15
5119600B20
ref: 15
RING,FRONT FORK PISTON
€ 5.00
16
5111001B40
ref: 16
TUBE,FORK,INNER
€ 290.00
17
5112114200
ref: 17
PISTON
5112114200
€ 14.00
18
5117100B20
ref: 18
SPRING,FRONT FORK
€ 0.00
19
5117214280
ref: 19
GUIDE,FRONT FORK SPRING
€ 0.00
20
5135101B40
ref: 20
CAP
€ 142.50
21
5111714200
ref: 21
O RING
5111714200
€ 2.00
22
5112901B40
ref: 22
NUT
5112901B40
€ 19.50
23
5112801B40
ref: 23
ROD,PISTON
5112801B40
€ 19.00
24
5118801B20
ref: 24
CAP
5118801B20
€ 7.50
25
5157101B2025Y
ref: 25
BOOT
€ 45.50
26
5157501B20
ref: 26
BAND,BOOT UPR
€ 7.50
27
5157701B20
ref: 27
SCREW,BAND BOOT(3.5X10)
€ 2.50
28
5157600B00
ref: 28
BAND,BOOT LWR
5157600B00
€ 6.50
29
5120114500163
ref: 29
OPT
PROTECTOR,RIGHT
€ 0.00
30
5120214501163
ref: 30
OPT
PROTECTOR,LEFT
5120214501163
€ 25.50
31
5157600B00
ref: 31
BAND,BOOT LWR
5157600B00
€ 6.50
32
5120114500163
ref: 32
OPT
PROTECTOR,RIGHT
€ 0.00
33
5120214501163
ref: 33
OPT
PROTECTOR,LEFT
5120214501163
€ 25.50
