FRONT FORK (MODEL G)

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

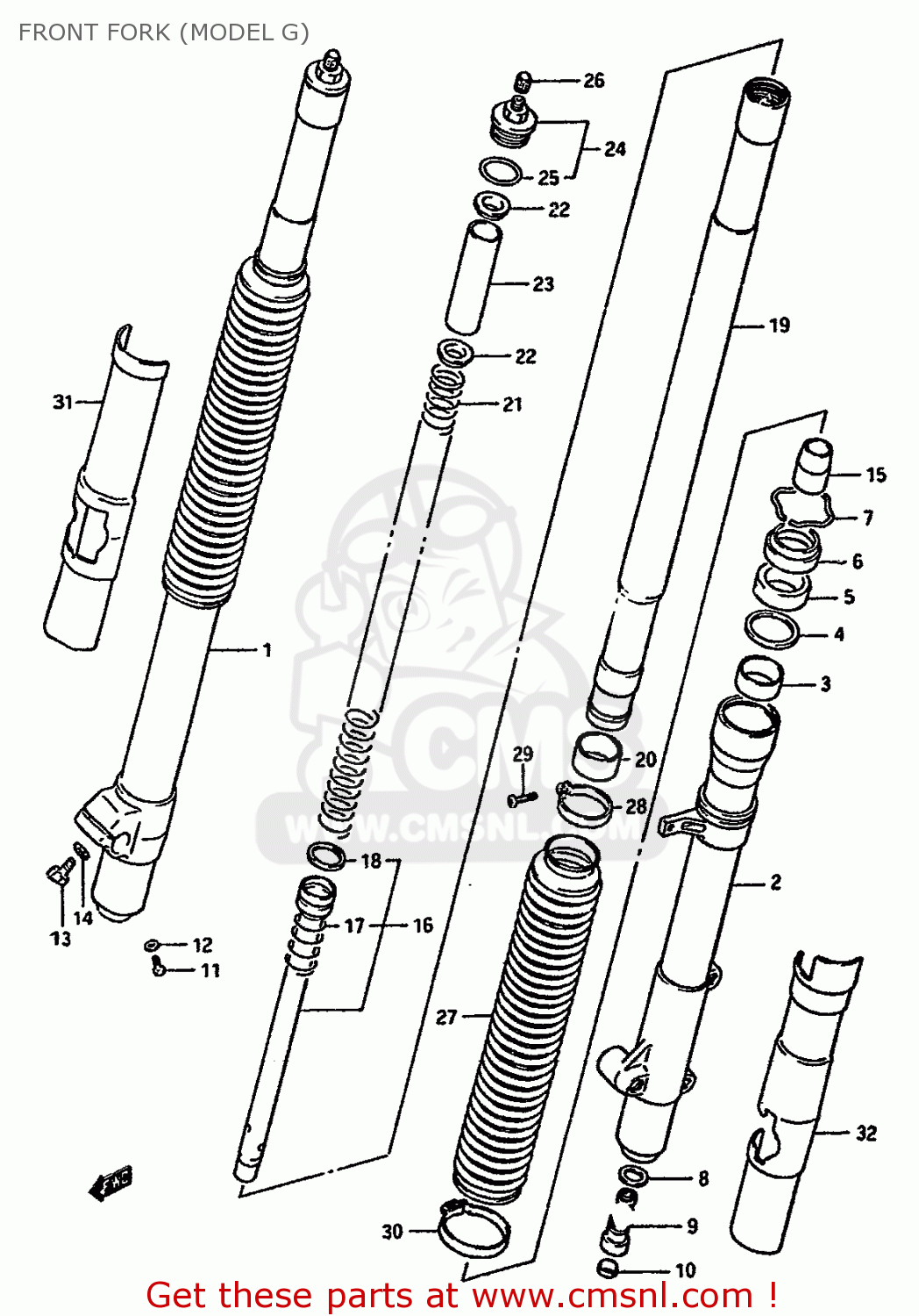

Front fork (model g) diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

FRONT FORK (MODEL G) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
FRONT FORK (MODEL G) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
FRONT FORK (MODEL G) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
5110301B00
ref: 0
DAMPER ASSEMBLY
€ 0.00
0
5110401B10
ref: 0
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5113014500
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114014520
ref: 2
TUBE,OUTER,LEFT
€ 476.50
3
5116714200
ref: 3
METAL,SLIDE
5116714200
€ 13.50
4
5115814200
ref: 4
WASHER
5115814200
€ 4.00
5
5115314330
ref: 5
SEAL,OIL
5115314330
€ 11.00
6
5117314330
ref: 6
SEAL,DUST
5117314330
€ 9.50
7
5115614200
ref: 7
RING,STOPPER
5115614200
€ 4.50
8
5114814330
ref: 8
GASKET,FORK CYLINDER
€ 2.50
9
5177014500
ref: 9
VALVE,DF
5177014500
€ 39.50
10
5118914500
ref: 10
CAP,FRONT FORK DF
5118914500
€ 5.00
11
0211204068
ref: 11
SCREW 4X6
0211204068
€ 2.00
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
13
0110708307
ref: 13
BOLT
€ 2.50
14
0832131088
ref: 14
WASHER,LOCK,8.
€ 2.00
15
5119514330
ref: 15
PIECE,FRONT FORK OIL LOCK
5119514330
€ 10.50
16
5114600B00
ref: 16
CYLINDER,FRONT FORK
€ 0.00
17
5117714330
ref: 17
SPRING,REBOUND
5117714330
€ 5.50
18
5119614330
ref: 18
RING,FRONT FORK PISTON
5119614330
€ 6.50
19
5111014520
ref: 19
TUBE,FORK,INNER
€ 248.00
20
5112114200
ref: 20
PISTON
5112114200
€ 14.00
21
5117101B00
ref: 21
SPRING
5117101B00
€ 39.50
22
5117214500
ref: 22
GUIDE,FRONT FORK SPRING
5117214500
€ 5.00
23
5117614620
ref: 23
SPACER,FRONT FORK SPRING
5117614620
€ 15.50
24
5135114500
ref: 24
CAP,FORK INNER TUBE
5135114500
€ 31.50
25
5111714200
ref: 25
O RING
5111714200
€ 2.00
26
5129420400
ref: 26
CAP
5129420400
€ 3.50
27
5157100B0019F
ref: 27
BOOT
€ 45.50
28
5157514500
ref: 28
BAND,BOOT,UPPER
€ 7.00
29
0211204108
ref: 29
SCREW 4X10
€ 2.00
30
5157600B00
ref: 30
BAND,BOOT LWR
5157600B00
€ 6.50
31
5120114500163
ref: 31
OPT
PROTECTOR,RIGHT
€ 0.00
32
5120214501163
ref: 32
OPT
PROTECTOR,LEFT
5120214501163
€ 25.50
