KICK STARTER

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

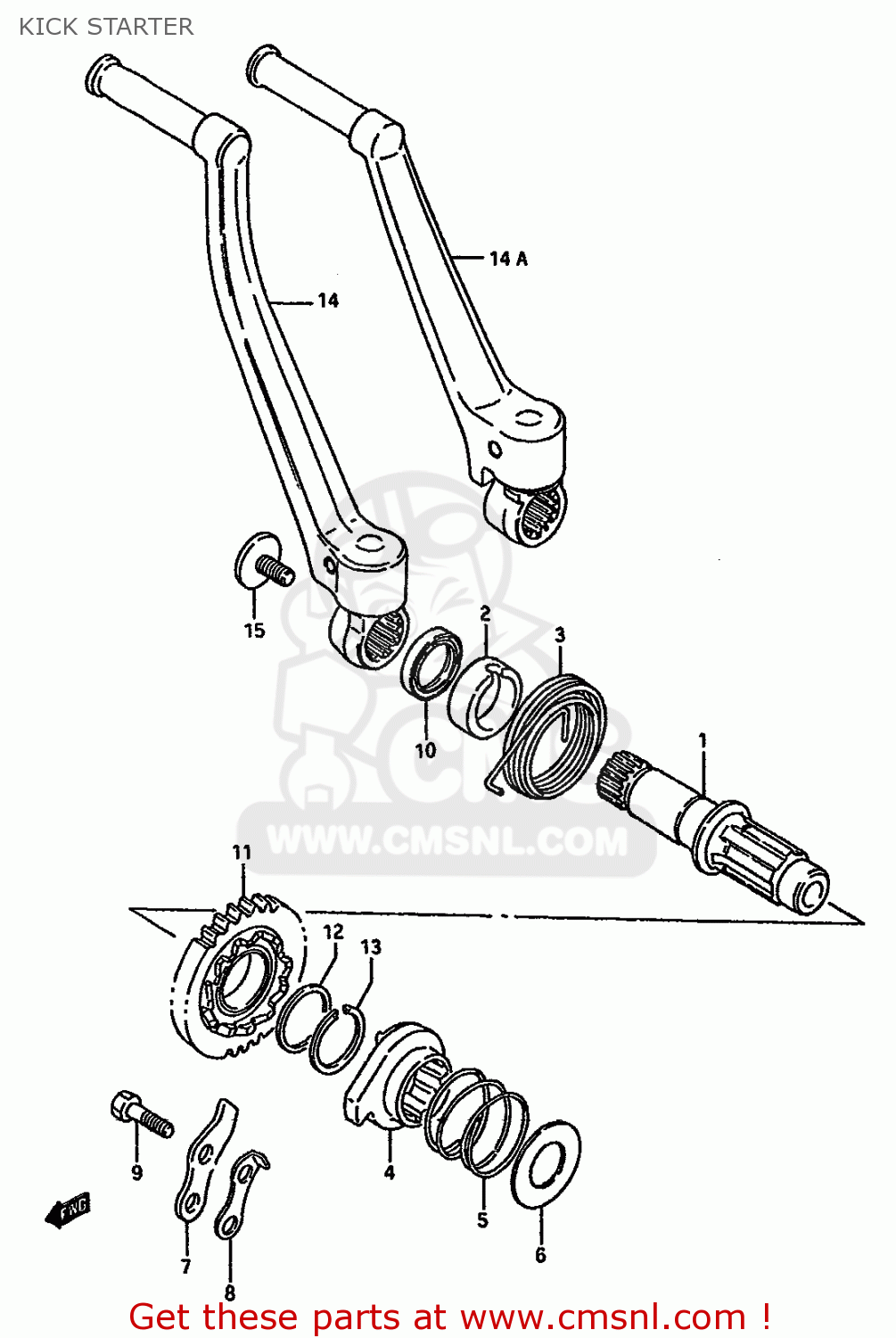

Kick starter diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

KICK STARTER RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
KICK STARTER RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
KICK STARTER RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2621101B00
ref: 1
SHAFT,KICK STARTER
2621101B00
€ 69.00
2
2622101B00
ref: 2
GUIDE,KICK STARTER SHAFT
2622101B00
€ 3.00
3
0944848007
ref: 3
SPRING
0944848007
€ 8.50
4
2623122A10
ref: 4
STARTER,KICK
2623122A10
€ 47.50
5
0944032002
ref: 5
SPRING
0944032002
€ 2.00
6
0821117341
ref: 6
WASHER
0821117341
€ 2.00
7
2623240200
ref: 7
GUIDE,KICK STARTER
2623240200
€ 3.00
8
2623340200
ref: 8
STOPPER,KICK STARTER
2623340200
€ 2.50
9
0110706166
ref: 9
BOLT
€ 2.00
10
0928320031
ref: 10
SEAL,OIL(20X27X5)
0928320031
€ 5.00
11
2624014100
ref: 11
GEAR,KICK STARTER DRIVE
2624014100
€ 57.00
12
0821122281
ref: 12
SHIM
0821122281
€ 4.00
13
0938022006
ref: 13
CIRCLIP
0938022006
€ 3.00
14-1
2630014500
ref: 14-1
MODEL G
LEVER ASSEMBLY,KICK STARTER
€ 298.00
14-2
2630001B10
ref: 14-2
MODEL H
LEVER ASSEMBLY,KICK STARTER
€ 298.00
14A
2630001B40
ref: 14A
MODEL J
LEVER ASSEMBLY,KICK STARTER
€ 135.50
15-1
0910608050
ref: 15-1
MODEL G
BOLT 8X14
0910608050
€ 7.00
15-2
0910608073
ref: 15-2
MODEL H/J
BOLT
€ 6.50
