REAR MASTER CYLINDER (MODEL J)

RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

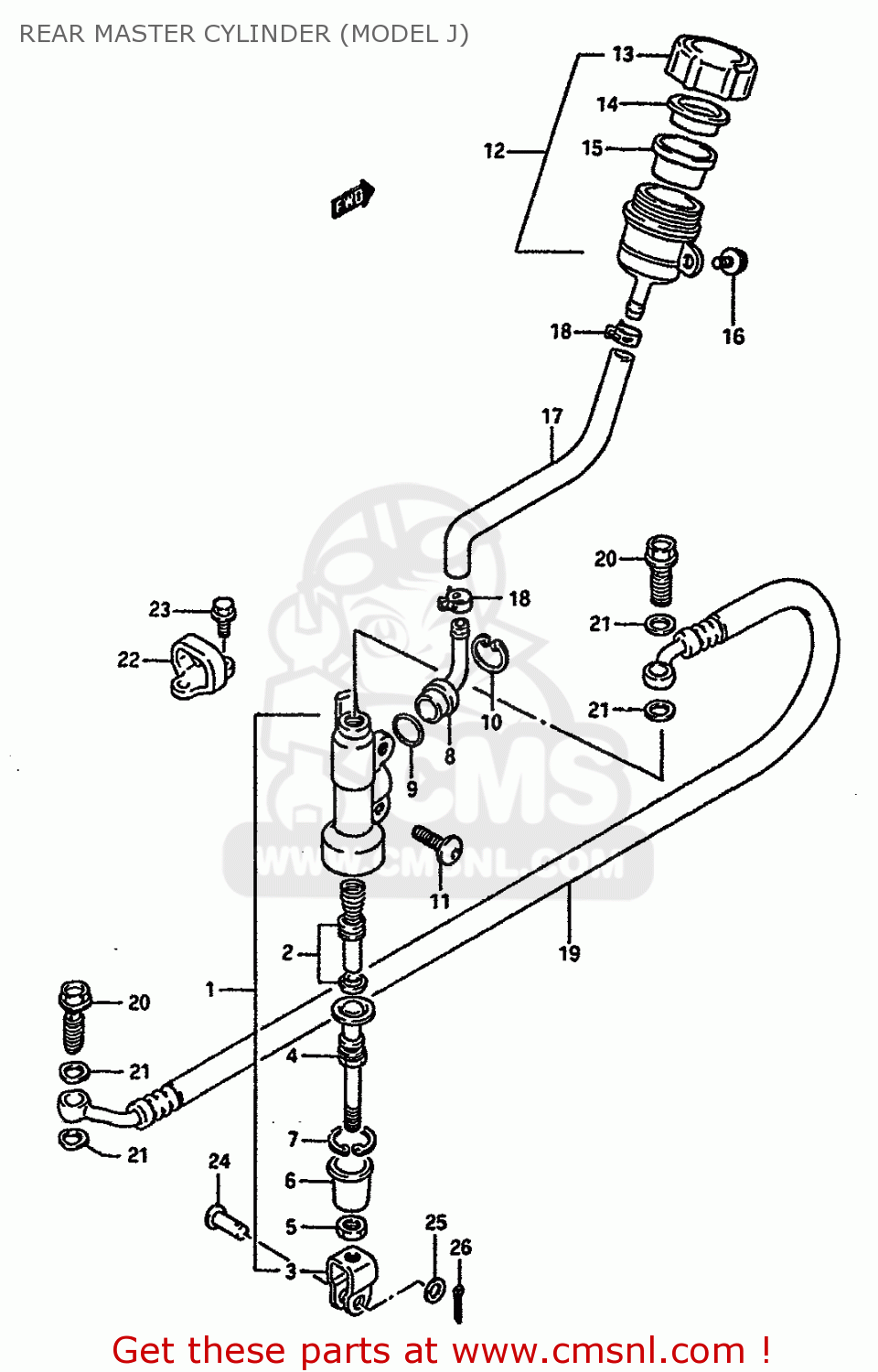

Rear master cylinder (model j) diagram RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)

REAR MASTER CYLINDER (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
REAR MASTER CYLINDER (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
REAR MASTER CYLINDER (MODEL J) RM125 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
6960001B30
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 134.00
2
6960016820
ref: 2
PISTON/CUP SET
6960016820
€ 42.50
3
6969200B20
ref: 3
YOKE
€ 13.50
4
6967000B20
ref: 4
ROD,PUSH
6967000B20
€ 24.00
5
6969324A00
ref: 5
NUT
€ 1.50
6
6969100A00
ref: 6
BOOT
6969100A00
€ 3.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
6967200B20
ref: 8
CONNECTOR
6967200B20
€ 5.00
9
6968634200
ref: 9
O RING
6968634200
€ 3.50
10
6967400B20
ref: 10
CIRCLIP
6967400B20
€ 3.00
11
0910606064
ref: 11
BOLT(6X18)
0910606064
€ 6.00
12
6974000B20
ref: 12
TANK ASSEMBLY,RESERVOIR
6974000B20
€ 42.50
13
6966900B20
ref: 13
CAP
€ 11.00
14
6966800B20
ref: 14
PLATE
6966800B20
€ 4.00
15
6966700B20
ref: 15
DIAPHRAGM
6966700B20
€ 9.50
16
0151706128
ref: 16
BOLT
€ 2.50
17
6973101B30
ref: 17
HOSE,RESERVOIR TANK
€ 20.50
18
6973500B20
ref: 18
CLAMP,RESERVOIR HOSE
6973500B20
€ 3.00
19
6948026C00
ref: 19
HOSE,REAR BRAKE
6948026C00
€ 76.00
20
0936010017
ref: 20
BOLT UNION
0936010017
€ 6.50
21
0916110009
ref: 21
WASHER(10X15X1.5)
0916110009
€ 2.00
22
6119600B21
ref: 22
GUIDE,RR BRAKE HOSE
6119600B21
€ 6.00
23
0912505042
ref: 23
SCREW(5X10)
0912505042
€ 2.50
24
0920008048
ref: 24
PIN(8X20)
0920008048
€ 3.00
25
0916008074
ref: 25
WASHER(8.5X13X1.6)
0916008074
€ 2.50
26
0411120158
ref: 26
PIN
0411120158
€ 1.50
