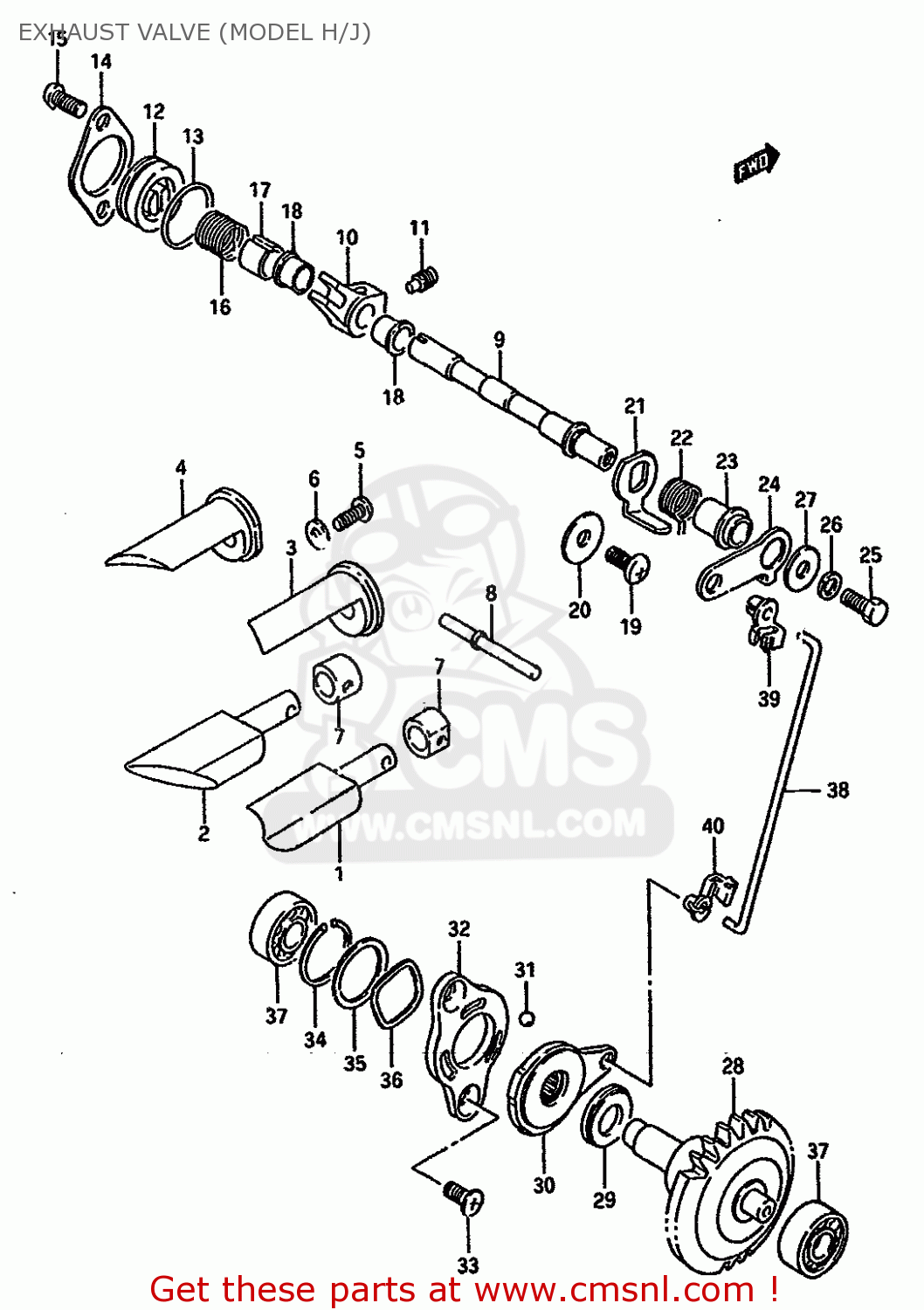

EXHAUST VALVE (MODEL H/J)

ref

part #

description

quantity

1-1

1125401B33
ref: 1-1
MODEL H

VALVE,EXHAUST,R

€ 123.50

1-2

1125401B40
ref: 1-2
MODEL J

VALVE,EXHAUST,R

€ 149.50

2-1

1125501B33
ref: 2-1
MODEL H

VALVE,EXHAUST,L

€ 122.50

2-2

1125501B40
ref: 2-2
MODEL J

VALVE,EXHAUST,LEFT

€ 139.50

3-1

1126101B32
ref: 3-1
MODEL H

GUIDE,EXHAUST VALVE

€ 126.00

3-2

1126101B41
ref: 3-2
MODEL J

GUIDE,EXHAUST VALVE,R

€ 125.00

4-1

1126201B32
ref: 4-1
MODEL H

GUIDE,EXHAUST VALVE LH

€ 105.00

4-2

1126201B41
ref: 4-2
MODEL J

GUIDE,EXHAUST VALVE,LEFT

€ 136.50

5

0211205128
ref: 5

SCREW

€ 2.50

6

0832221057
ref: 6

WASHER

€ 2.50

7-1

1126301B30
ref: 7-1

SPACER,EXHAUST VALVE

€ 14.00

7-2

1126300B20
ref: 7-2

HOLDER,EXHAUST VALVE

€ 14.00

8

1125301B30
ref: 8

PIN,EXHAUST VALVE. 43.6MM

€ 20.50

9

1125901B31
ref: 9

SHAFT,EXHAUST VALVE

€ 55.50

10

1126400B22
ref: 10
FROM 11264-00B21

ARM,EXHAUST VALVE SHAFT

€ 17.00

11

0913406011
ref: 11

SCREW

€ 4.50

12

1125801B00
ref: 12

CAP,EXHAUST VALVE

€ 52.00

13

0928023002
ref: 13

O RING(D:1.9,ID:22.6)

€ 2.50

14

1126500B21
ref: 14

RETAINER,EXHAUST VALVE

€ 2.50

15

0211205128
ref: 15

SCREW

€ 2.50

16

0944416003
ref: 16

SPRING

€ 7.50

17

1126900B20
ref: 17

SPACER,EXHAUST VALVE SPRING

€ 19.00

18

0930108008
ref: 18

BUSH

€ 15.50

19-1

0211206108
ref: 19-1
MODEL H

SCREW

€ 1.50

19-2

0211206087
ref: 19-2
MODEL J

SCREW

€ 2.00

20

0821206201
ref: 20

WASHER

€ 1.50

21

1126700B20
ref: 21

LEVER,EXHAUST VALVE NO

€ 5.50

22

0944415008
ref: 22

SPRING

€ 6.00

23

1126801B00
ref: 23

SPACER,EXHAUST VALVE

€ 8.50

24

1126600B20
ref: 24

LEVER,EXHAUST VALVE NO

€ 3.50

25

0110405126
ref: 25

BOLT

€ 1.50

26

0832121056
ref: 26

LOCK WASHER

€ 3.00

27

0916005017
ref: 27

WASHER (5.5X16X1.2)

€ 2.50

28-1

1267001B10
ref: 28-1
MODEL H

GOVERNOR ASSEMBLY,EXHAUST

€ 87.00

28-2

1267001B20
ref: 28-2
MODEL J

GOVERNOR ASSEMBLY,EXHAUST

€ 87.00

29

0926310002
ref: 29

BEARING(10X22X2.8)

€ 8.50

30

1268001820
ref: 30

ACTUATOR,EXHAUST VALVE

€ 47.50

31

0611106003
ref: 31

BALL

€ 1.50

32

1268201B02
ref: 32

STARTER,EXHAUST VALVE ACTUATOR

€ 26.50

33

0212205128
ref: 33

SCREW 5X12

€ 2.50

34

0938019003
ref: 34

CIRCLIP

€ 2.50

35

0918119004
ref: 35

SHIM(19.1X25X0.3)

€ 4.00

36

0916419001
ref: 36

WASHER

€ 7.00

37

0926208005
ref: 37

BEARING(8X22X7)

€ 12.50

38

1268501B20
ref: 38

ROD,EXHAUST VALVE

€ 2.00

39

1268601B00
ref: 39

BUSH,EXHAUST VALVE ROD NO.1

€ 2.00

40

1268701B00
ref: 40

BUSH,EXHAUST VALVE ROD NO.2

€ 2.00
