CLUTCH (MODEL T/V)
RM125 1997 (V) USA (E03)

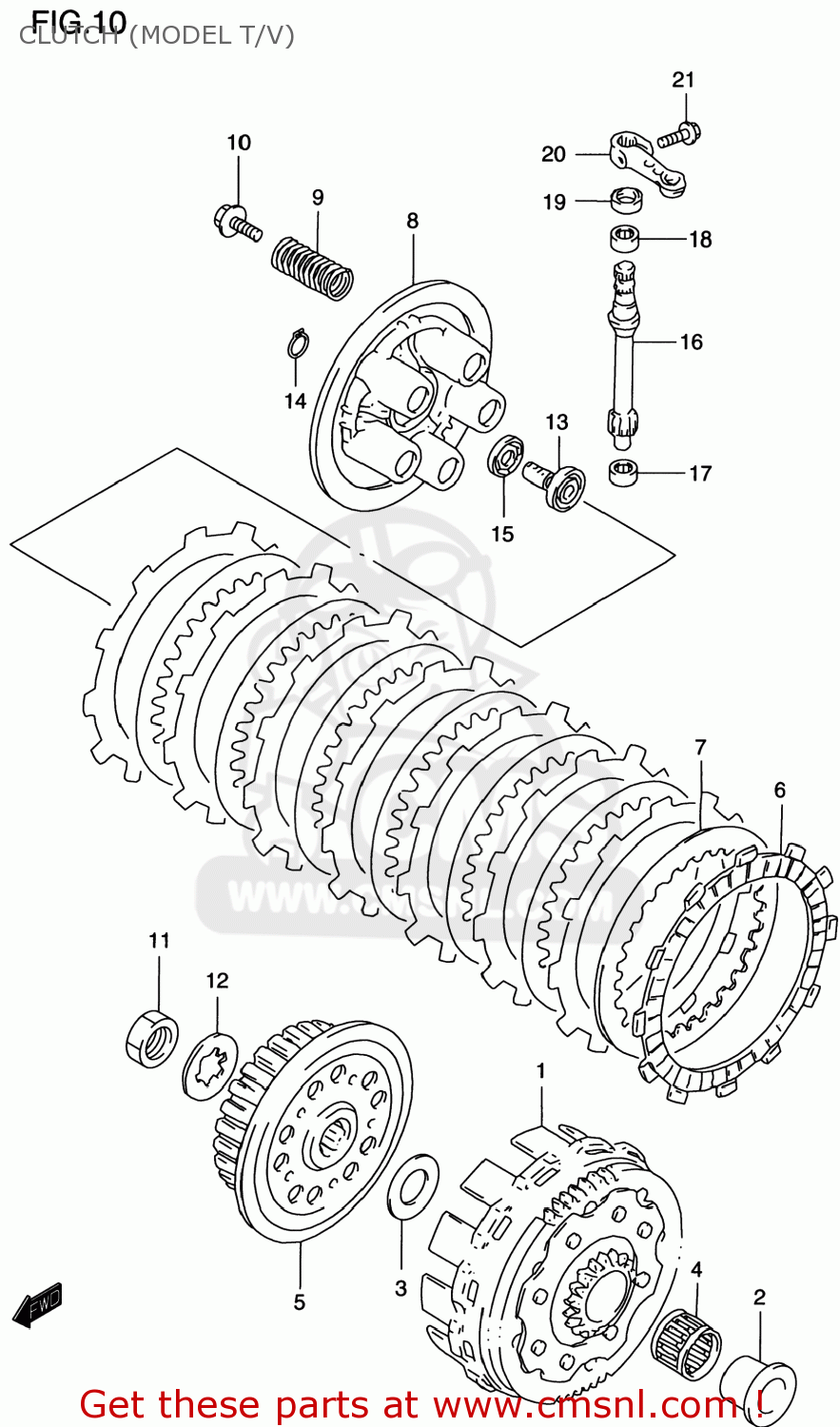

Clutch (model t/v) diagram RM125 1997 (V) USA (E03)
CLUTCH (MODEL T/V) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120043D02
ref: 1
21200-43D04
GEAR ASSEMBLY,PRIMARY (NT:6
€ 233.50
2
2125143D00
ref: 2
SPACER,PRIMARY DRIVEN GEAR
€ 31.00
3
0821120363
ref: 3
WASHER
€ 3.50
4
0926325046
ref: 4
BEARING(25X30X22)
€ 31.50
5
2141143D02
ref: 5
21411-43D04
HUB,CLUTCH SLEEVE
€ 80.00
6
2144143D00
ref: 6
PLATE,CLUTCH DRIVE(T:2.8) (NAS)
€ 16.50
7
2145143D00
ref: 7
PLATE,CLUTCH DRIVEN(T:1.4) (NAS)
€ 8.00
8
2146243D00
ref: 8
21462-43D01
DISC,CLUTCH PRESSURE
€ 38.00
9
0944018026
ref: 9
09440-18030
SPRING
€ 7.50
10
0911605019
ref: 10
BOLT(5X25)
€ 3.00
11
0914020001
ref: 11
NUT
€ 3.50
12
0916720009
ref: 12
WASHER,LOCK
€ 3.00
13
2316546000
ref: 13
RACK,CLUTCH RELEASE
€ 20.00
14
0833131106
ref: 14
08331-3110A
CIRCLIP,10MM
€ 2.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
€ 8.50
16
2326100B20
ref: 16
PINION,CLUTCH RELEASE(NT:12)
€ 46.50
17
0926309001
ref: 17
BEARING(9X13X10)
€ 11.00
18
0926312024
ref: 18
BEARING(12X16X10)
€ 11.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
€ 3.50
20
2327120901
ref: 20
23271-20902
ARM,CLUTCH RELEASE
€ 20.50
21
0154706163
ref: 21
01547-0616B
BOLT
€ 2.50
