REAR SWINGING ARM (MODEL V)
RM125 1997 (V) USA (E03)

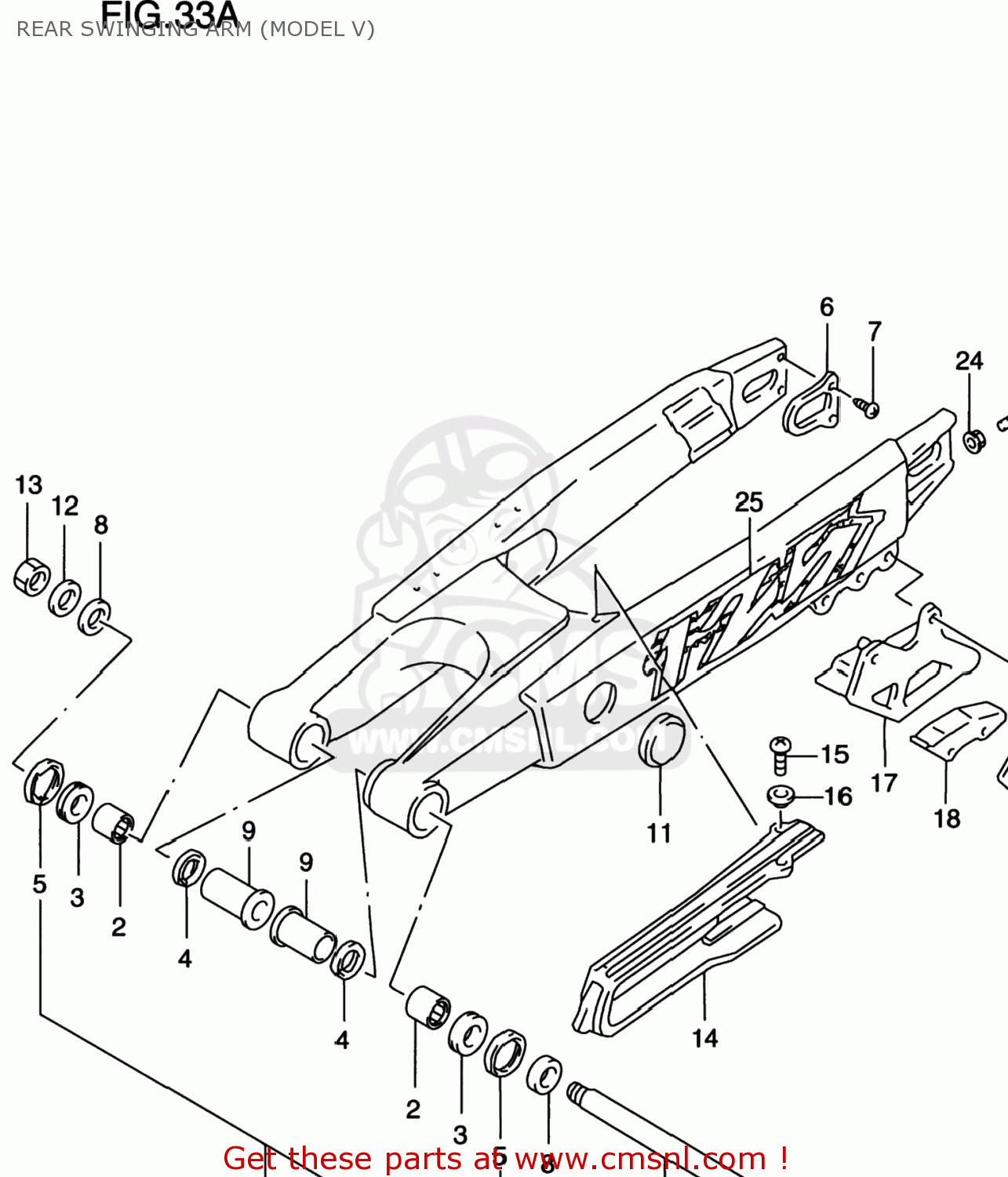

Rear swinging arm (model v) diagram RM125 1997 (V) USA (E03)
REAR SWINGING ARM (MODEL V) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100036E10
ref: 1
SWING ARM ASSEMBLY,REAR
€ 855.00
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
0926322064
ref: 3
BEARING(22X35X2)
€ 19.00
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
€ 5.00
5
6126236E00
ref: 5
SEAL,RR SWGARM PIVOT OUTER
€ 3.50
6
6112828E00
ref: 6
PLATE,SWING ARM,REAR
€ 14.50
7
0912605009
ref: 7
SCREW(5X8)
€ 2.50
8
6125136E01
ref: 8
SPACER,RR SWGARM PIVOT OUTER
€ 6.00
9
6125236E00
ref: 9
SPACER,SWGARM PIVOT INNER
€ 20.00
10
6121128C00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
€ 46.50
11
0925035003
ref: 11
CAP(OD:45)
€ 3.00
12
0832201163
ref: 12
08322-0116A
WASHER, FIXED DRIVE FACE
€ 2.00
13
0915916007
ref: 13
NUT
€ 10.50
14
6127336E10
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
€ 39.50
15
0211205123
ref: 15
02112-0512A
SCREW
€ 1.50
16
0916905022
ref: 16
WASHER
€ 3.50
17
6134127C20
ref: 17
GUIDE,CHAIN
€ 30.50
18
6134827C20
ref: 18
DEFENSE,CHAIN GUIDE
€ 26.50
19
6134228E00
ref: 19
PLATE,CHAIN GUIDE OUTER
€ 39.00
20
0154706203
ref: 20
01547-0620B
SCREW
€ 2.50
21
0912606013
ref: 21
SCREW(6X40)
€ 5.00
22
6144528E10
ref: 22
WASHER,CHAIN ADJUSTER
€ 23.00
23
0910008287
ref: 23
BOLT(8X50)
€ 3.00
24
0915908034
ref: 24
NUT
€ 2.00
25
6838136E10G7E
ref: 25
68381-36E11-G7E
EMBLEM,SWING ARM
€ 19.50
