FRONT DAMPER (MODEL X)
RM125 1997 (V) USA (E03)

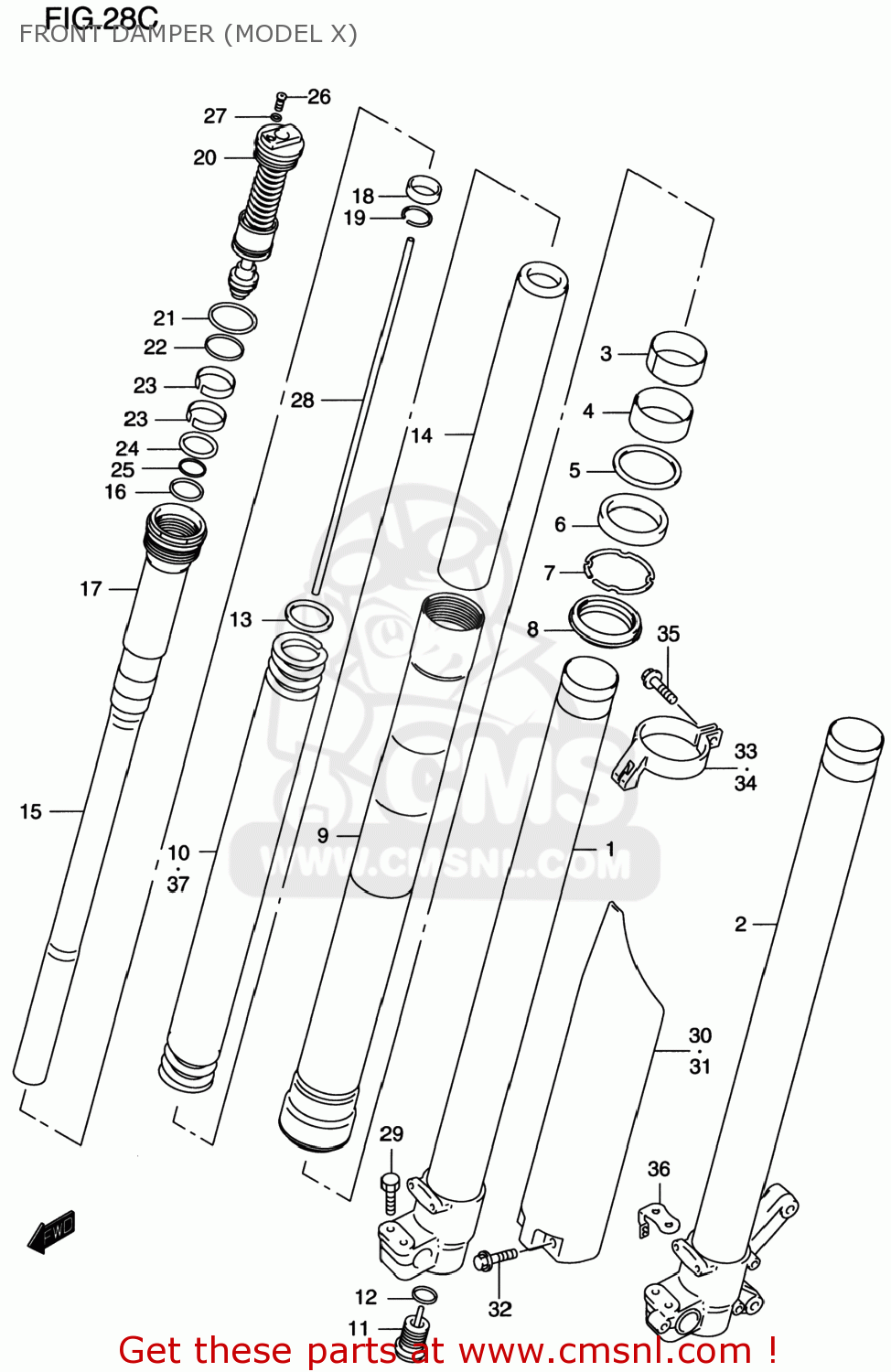

Front damper (model x) diagram RM125 1997 (V) USA (E03)
FRONT DAMPER (MODEL X) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110336E70
ref:
DAMPER ASSY,FR FORK,R
€ 1,782.50
5110436E70
ref:
DAMPER ASSEMBLY,LEFT
€ 1,785.00
1
5111036E60
ref: 1
TUBE,INNER,RIGHT
€ 433.00
2
5112036E60
ref: 2
TUBE,INNER,L
€ 468.00
3
5112136E60
ref: 3
BUSH,SLIDE
€ 17.00
4
5116736E60
ref: 4
BUSH,GUIDE
€ 15.00
5
5115836E00
ref: 5
SPACER,SEAL
€ 5.00
6
5115336E00
ref: 6
SEAL,OIL
€ 19.00
7
5115636E00
ref: 7
RING,STOPPER
€ 4.50
8
5117336E00
ref: 8
SEAL,DUST
€ 19.50
9
5113036E60
ref: 9
TUBE,OUTER
€ 571.50
10
5117137E60
ref: 10
SPRING,FR(K=0.40)
€ 30.50
11
5117036E20
ref: 11
BOLT,CTR
€ 128.50
12
5117736E20
ref: 12
O RING
€ 2.50
13
5135536E60
ref: 13
STOPPER,SPRING
€ 8.00
14
5117636E60
ref: 14
COLLAR,SPRING
€ 63.00
15
5119036E70
ref: 15
DAMPER,CARTRIDGE
€ 625.50
16
6213128E30
ref: 16
62131-28E00
O-RING
€ 3.50
17
5119836E60
ref: 17
TANK,SUB
€ 119.50
18
5115736E70
ref: 18
VALVE,OIL LOCK
€ 16.00
19
5115436E60
ref: 19
RING,STOPPER
€ 3.00
20
5135136E70
ref: 20
BOLT,FORK
€ 224.00
21
5111736E60
ref: 21
O RING
€ 4.00
22
5111736E00
ref: 22
O RING
€ 3.50
23
5112328E30
ref: 23
BUSH,FORK BOLT SLIDE
€ 9.50
24
5117436E40
ref: 24
O RING
€ 2.50
25
5117536E60
ref: 25
O RING,LWR
€ 2.50
26
5135728E30
ref: 26
BOLT,PLUG
€ 8.00
27
5135828E30
ref: 27
O RING,PLUG
€ 2.50
28
5119136E60
ref: 28
ROD,PUSH
€ 14.50
29
5132127C40
ref: 29
BOLT,HANDLE HOLDER(8X35)
€ 3.00
30
5150136E60
ref: 30
PROTECTOR FORK,R
€ 89.50
31
5151136E60
ref: 31
PROTECTOR,FORK,L
€ 89.50
32
5862727C40
ref: 32
BOLT,PROTECTOR(6X10)
€ 2.50
33
5122036E60
ref: 33
GUIDE,PROTECTOR,R
€ 29.00
34
5121036E60
ref: 34
GUIDE,PROTECTOR,L
€ 29.00
35
0154706207
ref: 35
BOLT
€ 2.50
36
5123136E60
ref: 36
STOPPER,BRAKE HOSE,L
€ 5.50
37-1
5117137E50
ref: 37-1
SPRING,FR(K=0.38)
€ 80.00
37-2
5117137E70
ref: 37-2
SPRING,FR(K=0.42)
€ 69.00
