Buy Suzuki RM Parts Online
home
REAR CUSHION LEVER (MODEL T/V)
RM125 1997 (V) USA (E03)

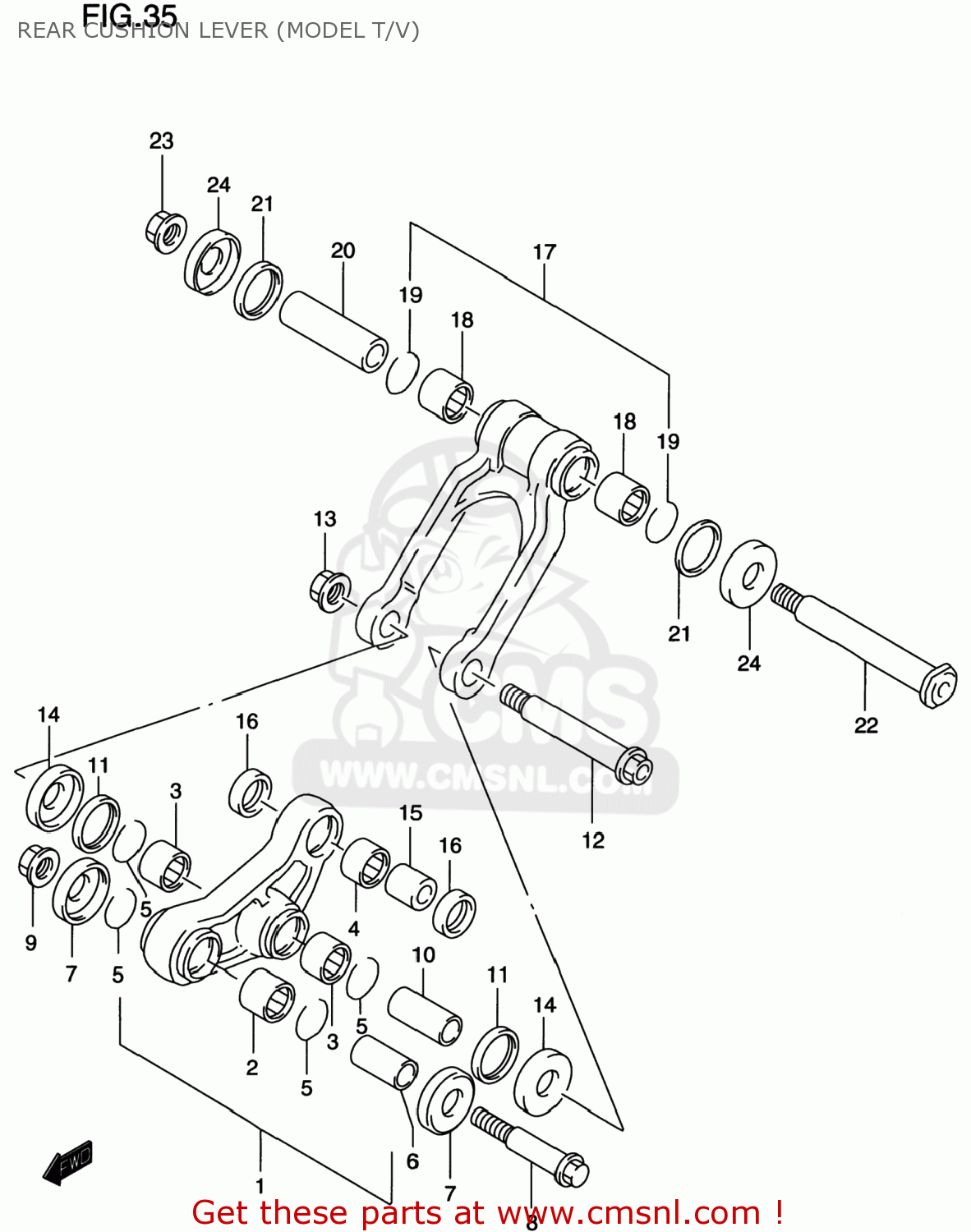

Rear cushion lever (model t/v) diagram RM125 1997 (V) USA (E03)
REAR CUSHION LEVER (MODEL T/V) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6260036811
ref: 1-1
LEVER SET,RR CUSHION
€ 285.50
1-2
6260036830
ref: 1-2
62600-36831
LEVER SET,REAR CUSHION
€ 556.50
2
0926320053
ref: 2
BEARING(20X27X25)
€ 15.50
3
0926322062
ref: 3
BEARING(22X28X20)
€ 22.50
4
0926320083
ref: 4
BEARING(20X26X12)
€ 21.50
5
0938126002
ref: 5
CIRCLIP
€ 2.50
6
6231727C10
ref: 6
SPACER,RR CUSHION LEVER FR
€ 9.00
7
6216228E00
ref: 7
SEAL,RR CUSHION LEVER FR DUST
€ 6.50
8
6265827C10
ref: 8
BOLT,RR CUSHION LEVER FR
€ 8.00
9
0831931128
ref: 9
08319-3112A
NUT 12MM
€ 4.00
10
6264636E00
ref: 10
SPACER,RR CUSHION LEVER CTR
€ 15.00
11
6268336E00
ref: 11
SEAL,RR CUSHION LEVER CTR
€ 5.00
12-1
6262136E00
ref: 12-1
BOLT,RR CUSHION LEVER CTR
€ 24.00
12-2
6262128E01
ref: 12-2
BOLT,RR CUSHION LEVER CTR
€ 30.00
13
0831931148
ref: 13
08319-3114A
NUT
€ 9.00
14
6268236E00
ref: 14
CAP,RR CUSHION LEVER CTR
€ 5.50
15
6268436E00
ref: 15
SPACER,RR CUSHION LEVER RR
€ 9.50
16
0928420001
ref: 16
SEAL,OIL(20X26X4.5)
€ 3.50
17-1
6260036820
ref: 17-1
62600-36821
LEVER SET,REAR CUSHION
€ 266.50
17-2
6260036840
ref: 17-2
ROD SET,RR CUSHION LEVER
€ 252.50
18
0926322062
ref: 18
BEARING(22X28X20)
€ 22.50
19
0938126002
ref: 19
CIRCLIP
€ 2.50
20
6264536E00
ref: 20
SPACER,RR CUSHION ROD
€ 16.50
21
6268336E00
ref: 21
SEAL,RR CUSHION LEVER CTR
€ 5.00
22
6262236E00
ref: 22
BOLT,RR CUSHION ROD
€ 31.00
23
0831931148
ref: 23
08319-3114A
NUT
€ 9.00
24
6268236E00
ref: 24
CAP,RR CUSHION LEVER CTR
€ 5.50
