REAR CALIPER
RM125 1997 (V) USA (E03)

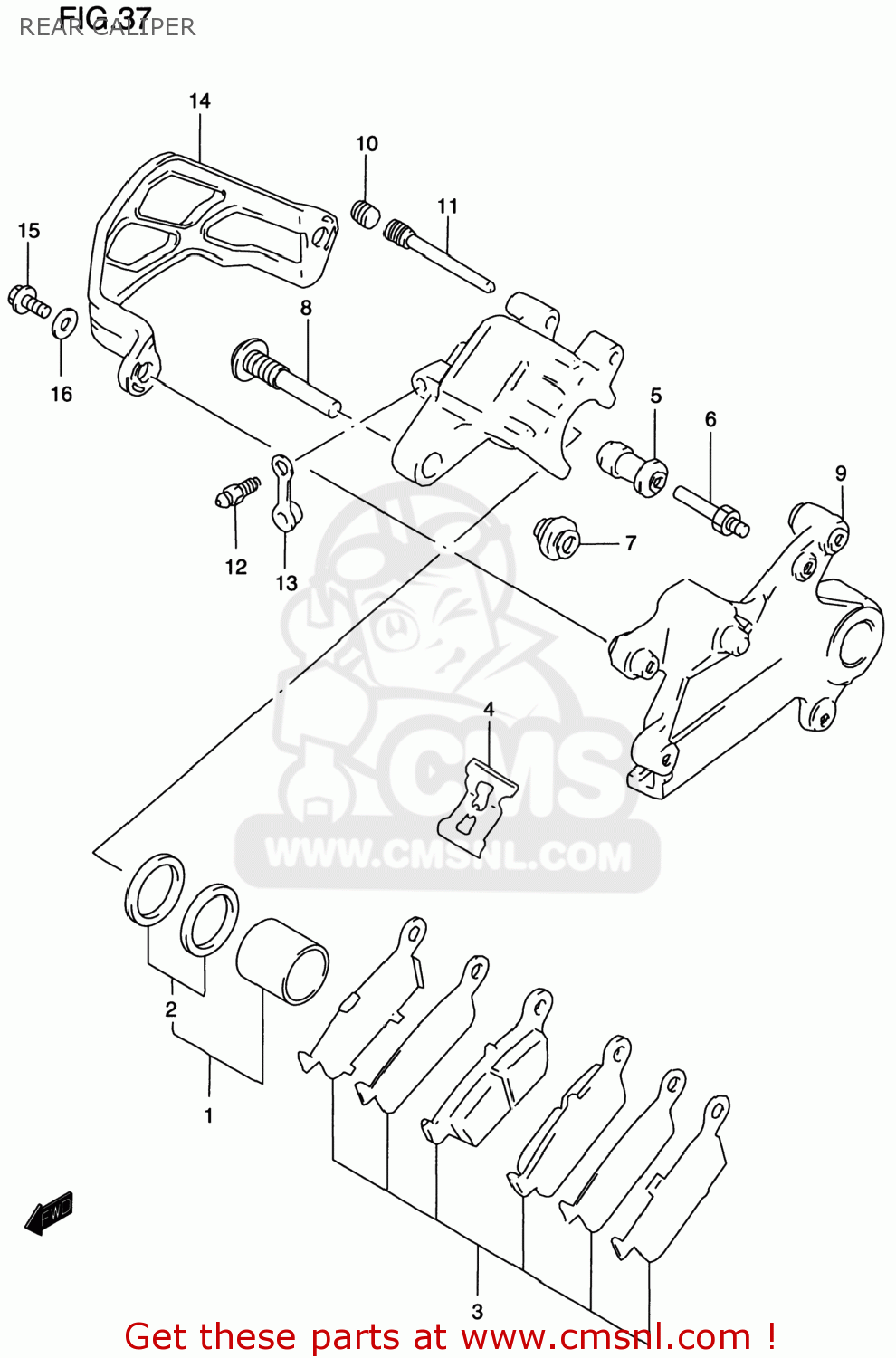

Rear caliper diagram RM125 1997 (V) USA (E03)
REAR CALIPER RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910036E00
ref:
69100-44E00-999
CALIPER ASSEMBLY,REAR
€ 431.50
6910036E10
ref:
69100-44E00-999
CALIPER ASSEMBLY,REAR
€ 431.50
6910036E20
ref:
69100-44E10-999
CALIPER ASSEMBLY,REAR
€ 435.00
6910036E30
ref:
CALIPER ASSY,RR
€ 257.00
6910036E40
ref:
69100-37F20-999
CALIPER ASSEMBLY,REAR
€ 387.50
1
6910043810
ref: 1
PISTON SET
€ 31.50
2
6910036810
ref: 2
SEAL SET,PISTON
€ 13.00
3-1
6910036820
ref: 3-1
PAD & RETAINER SET
€ 58.00
3-2
6910036830
ref: 3-2
69100-36860
PAD & RETAINER SET
€ 45.50
3-3
6910036840
ref: 3-3
PAD & RETAINER SET
€ 61.50
3-4
6910036850
ref: 3-4
PAD & RETAINER SET
€ 56.00
3-5
6910036860
ref: 3-5
PAD & RETAINER SET
€ 45.50
4
5931536E00
ref: 4
SPRING,PAD
€ 6.50
5
5938613A00
ref: 5
BOOT
€ 6.50
6
5938227C30
ref: 6
BOLT
€ 7.50
7
5930314500
ref: 7
BOOT
€ 5.50
8
5930536E00
ref: 8
PIN,BOLT
€ 12.50
9-1
6935136E00
ref: 9-1
BRACKET
€ 85.00
9-2
6935036E10
ref: 9-2
BRACKET
€ 82.50
9-3
6935036E20
ref: 9-3
BRACKET
€ 97.50
10
5914621E10
ref: 10
PLUG,PIN
€ 6.50
11
6934543D00
ref: 11
PIN,HANGER
€ 7.50
12
5912101A00
ref: 12
BLEEDER
€ 8.50
13
5912201A00
ref: 13
CAP,BLEEDER
€ 4.50
14
5937136SHM
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.00
15
6972536E00
ref: 15
GUARD,RR CALIPER
€ 14.00
16
0154706123
ref: 16
01547-0612B
BOLT
€ 2.00
17
0832201063
ref: 17
08322-0106B
WASHER
€ 2.00
