RM125 1997 (V) USA (E03)

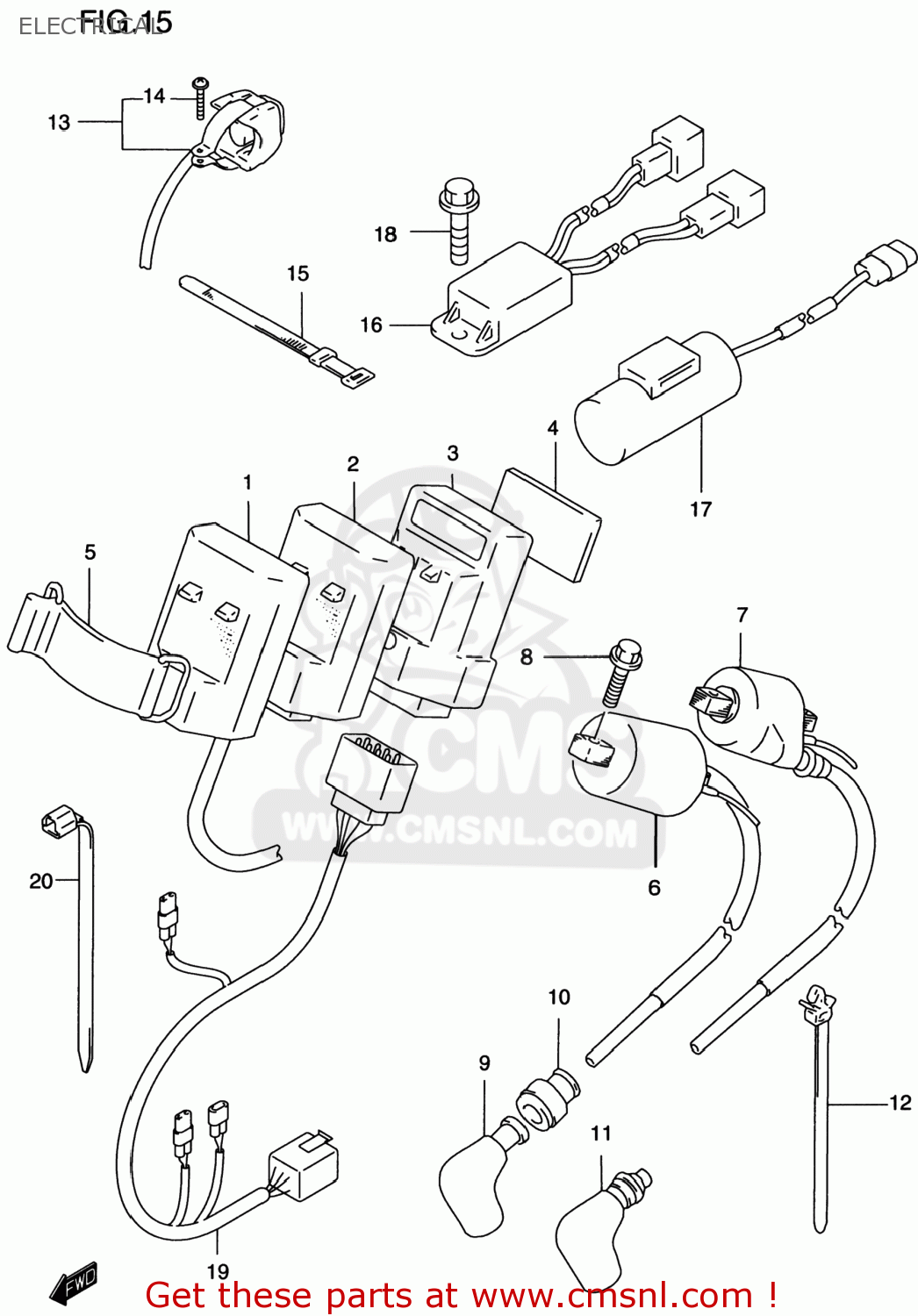

Electrical diagram RM125 1997 (V) USA (E03)
ELECTRICAL RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290036E00
ref: 1
CDI UNIT
€ 476.00
2
3290036E10
ref: 2
CDI UNIT
€ 403.00
3-1
3290036E20
ref: 3-1
CDI UNIT
€ 455.00
3-2
3290036E30
ref: 3-2
CDI UNIT
€ 451.50
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
4
3365137000
ref: 4
PROTECTOR(170X95X3.0)
€ 5.00
5
3294214301
ref: 5
BAND,CDI UNIT(L:80)
€ 10.00
6
3341036E00
ref: 6
COIL ASSY,IGNITION
€ 119.00
7
3341037E00
ref: 7
33410-08G00
COIL ASSEMBLY,IGNITION
€ 65.00
8
0154706163
ref: 8
01547-0616B
BOLT
€ 2.50
9
3351020A00
ref: 9
33510-20A02
CAP,SPARK PLUG
€ 23.00
10
3354238B00
ref: 10
SEAL,HIGH TENSION CORD
€ 4.50
11
3351020A01
ref: 11
33510-20A02
CAP,SPARK PLUG
€ 23.00
12-1
0940711402
ref: 12-1
CLAMP(L:90)
€ 2.50
12-2
0940717401
ref: 12-2
09407-17402
CLAMP
€ 5.00
13
3782036E00
ref: 13
SWITCH ASSY,ENGINE STOP
€ 21.00
14
0211233165
ref: 14
SCREW
€ 1.50
15
0940712402
ref: 15
CLAMP(L:120)
€ 3.00
16
3280037E20
ref: 16
RECTIFIER ASSY
€ 194.00
17
3364037E20
ref: 17
CONDENSER ASSY
€ 112.50
18
0154706123
ref: 18
01547-0612B
BOLT
€ 2.00
19
3661036E30
ref: 19
HARNESS,WIRING
€ 75.00
20
0940725401
ref: 20
CLAMP(L:235)
€ 4.00
