EXHAUST VALVE (MODEL Y)
RM125 1997 (V) USA (E03)

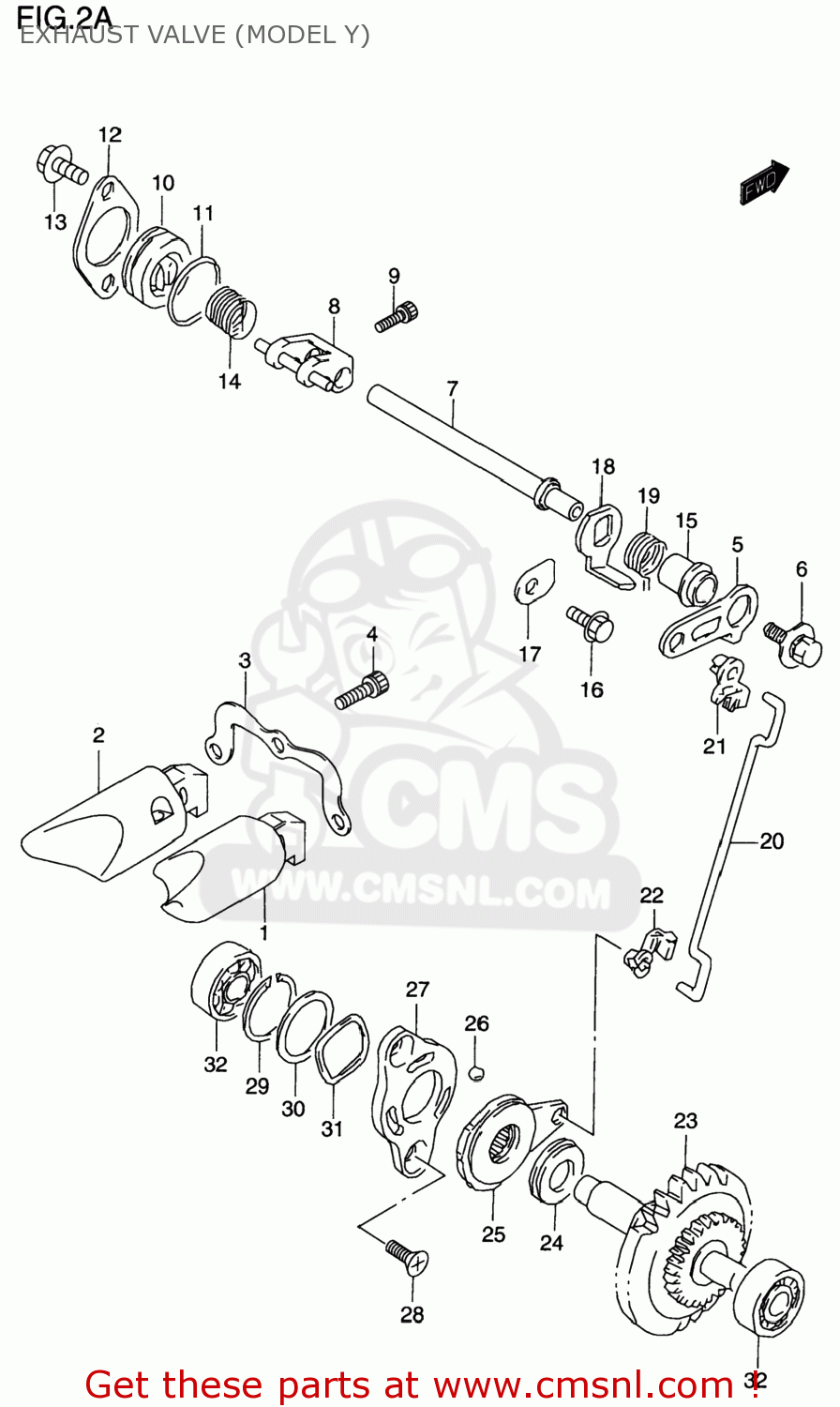

Exhaust valve (model y) diagram RM125 1997 (V) USA (E03)
EXHAUST VALVE (MODEL Y) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1125436E30
ref: 1
11254-36E31
VALVE,EXHAUST,RIGHT
€ 160.50
2
1125536E30
ref: 2
11255-36E31
VALVE,EXHAUST,LEFT
€ 160.50
3
1126136E30
ref: 3
11261-36F00
PLATE,EXHAUST VALVE
€ 23.50
4
0713005123
ref: 4
07130-0512B
BOLT
€ 2.50
5
1126600B21
ref: 5
LEVER,EXHAUST VALVE NO.1
€ 3.50
6
0911805003
ref: 6
BOLT(5X12)
€ 4.00
7
1125936E30
ref: 7
SHAFT,EXHAUST VALVE
€ 57.00
8
1127036E30
ref: 8
ARM,EXHAUST VALVE SHAFT
€ 43.50
9
0910604003
ref: 9
BOLT(4X8)
€ 2.00
10
1125827C01
ref: 10
CAP,EXHAUST VALVE
€ 52.00
11
0928023002
ref: 11
O RING(D:1.9,ID:22.6)
€ 2.50
12
1126500B22
ref: 12
RETAINER,EXHAUST VALVE
€ 2.50
13
0216205123
ref: 13
02162-0512A
BOLT
€ 2.00
14
1125736E00
ref: 14
SPRING,EXHAUST VALVE
€ 6.00
15
1126801B00
ref: 15
11268-01B01
SPACER,EXHAUST VALVE
€ 8.50
16
0154706103
ref: 16
01547-0610B
BOLT
€ 3.00
17
2474121A00
ref: 17
RETAINER
€ 2.00
18
1126700B21
ref: 18
LEVER,EXHAUST VALVE NO.2
€ 5.50
19
0944416010
ref: 19
SPRING
€ 9.00
20
1268536E10
ref: 20
12685-36E11
ROD,EXHAUST VALVE
€ 4.00
21
1268636E00
ref: 21
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
22
1268701B00
ref: 22
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
23
1267036E11
ref: 23
GOVERNOR ASSY,EXHAUST VALVE
€ 90.00
24
0926310002
ref: 24
BEARING(10X22X2.8)
€ 8.50
25
1268001820
ref: 25
ACTUATOR,EXHAUST VALVE
€ 47.50
26
0611106003
ref: 26
BALL
€ 1.50
27
1268201B02
ref: 27
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
28
0912005003
ref: 28
SCREW(5X10)
€ 2.00
29
0938019003
ref: 29
CIRCLIP
€ 2.50
30
0918119004
ref: 30
SHIM(19.1X25X0.3)
€ 4.00
31
0916419001
ref: 31
WASHER
€ 7.00
32
0926208005
ref: 32
BEARING(8X22X7)
€ 12.50
